This trainer is designed for studying and understanding the fundamental of motor speed control in various system via modern technology. A motor is connected to one end of the fly wheel and the other end is connected to the generator. An electrical load is also connected to the generator as a load of the system. The motor speed and the generator load can be set from panel and/or computer. A transparent cover with safety switch is provided.

Instruction manual is also included.

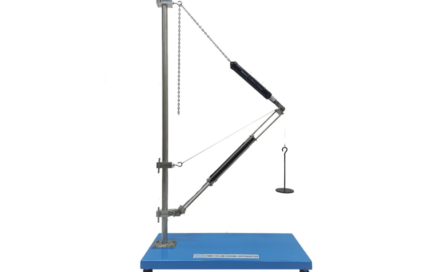

The equipment is designed to study forces in jib crane elements. Jib crane has two elements which are attached to a vertical rod. The lower element is called jib and the upper element is termed as tie. Load is applied at the junction of jib and tie to produce tension and compression in tie and jib respectively.

Instruction manual is also included.

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

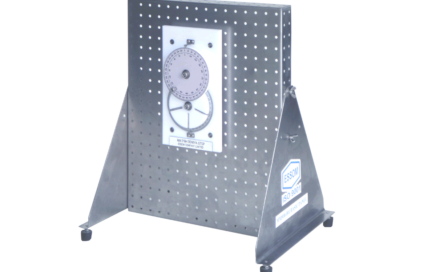

A Geneva stop and a ratchet mechanism are used to demonstrate how rotary motion is converted into a start – stop motion.

Instruction manual is also included.

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

Oldham coupling and universal joint are used for study of relative angular displacement for the two shafts.

Instruction manual is also included.

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

Slider crank, slotted link, and quick return mechanism and step pulley are used for studying relation of rotary motion and translation.

Instruction manual is also included.

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

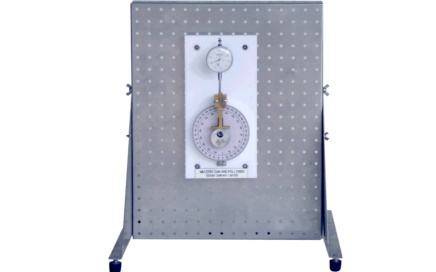

Cam rotation is measured on angular scale and follower displacement is measured by a dial indicator.

Instruction manual is also included.

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

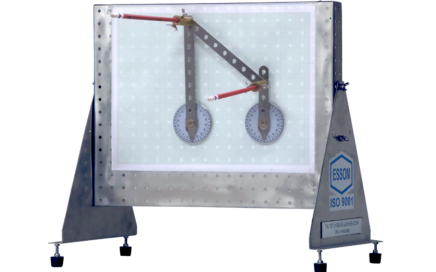

Over 20 perforated bars of different lengths and joints are used for assembly to form different linkages. The bar can accommodate a pencil to trace the movement of the linkages on paper.

Instruction manual is also included.

This is part of MM 500 Mechanical Engineering Test Series which provides sets for various experiments on MM 500-001 Basic Panel (separately supplied) to study or demonstrate specific engineering principles. The set is supplied in plastics box.

A rotating frame consists of a shaft, sliding masses and calibrated spring. When rotated, the mass forces the spring to compress. Centrifugal force is measured by spring compression and rotation speed is measured by mental count and stop watch.

Instruction manual is also included.
