Category Archives: HE

TH 217 CROSS FLOW HEAT EXCHANGER, Water-to-Air

Posted on by

Thermodynamics > Heat exchangers

TH 217 CROSS FLOW HEAT EXCHANGER, Water-to-Air

Enquiry

Video

Download

The apparatus is for studying heat transfer from hot water to cross flow air such as in automobile radiator.

    The unit consists of an air duct with outlet damper, an automotive radiator, an axial flow fan and a service module. The module provided hot water tank with transfer pump and control and measuring instruments.

    Instruction manual is also supplied.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:
- Type : Finned tube
- Material : Copper/Aluminum (Cu/Al)
: Heat transfer area approximately 30,000 cm2
  • Air duct
 : 250 x 250 mm
  • Pump
- Power consumption : 180 W
- Maximum flow rate : Approx. 45 LPM
  • Fan
 : Axial, adjustable speed
- Power consumption : Approx. 0.12 kW
- Maximum flow rate : Approx. 30 m3/min
  • Service module consisting of :
- Stainless steel hot water tank with level switch to prevent heater operation if level is too low.
- Hot water pump :  1
- Heater : 3000 W.
- Air flow rate : Portable anemometer
- Flow meters : Hot water.
- Sensors with digital display : Temperature for hot water inlet and outlet.
for air inlet and outlet
- Temperature control unit to limit temperature of hot water.
  • Power supply                                         : 220V 1Ph 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 55 x 120 x 80 cm.

Net weight  : Approx. 70 kg




  • TH217-050
Computer Interface (computer not included)
 This includes TH217S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH217-060

Computer Control (computer not included)

                                  This includes TH 217-050 with the additional accessories for control function and additional software function for equipment controls by computer



  • TH217S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 241 MULTI HEAT EXCHANGER, Transparent Casing

Posted on by

Thermodynamics > Heat exchangers

TH 241 MULTI HEAT EXCHANGER, Transparent Casing

Enquiry

Video

Download

The apparatus is used for studying of three types of heat exchangers namely-concentric tube, shell and tube, and plate-under parallel or counter flow conditions.

The unit consists of the three heat exchangers, and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Selection of the heat exchanger is simply by opening a valve and changing from parallel to counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Comparison of heat transfer coefficients for concentric tube, shell and tube, and plate heat exchanger.



  • Demonstration of heat transfer under parallel or counter flow.



  • Demonstration of batch type heat transfer for jacketed vessel (optional).



  • Determination heat transfer coefficient.



  • Effects of flow rate and temperature difference

  • Heat exchanger:

- Concentric tube: Transparent casing (borosilicate glass) with stainless steel inner tube
 : Total heat transfer area 225 cm2 (approx.)
- Shell and tube: Transparent casing (borosilicate glass) with stainless steel 7 inner tubes
 : Total heat transfer area 225 cm2 (approx.)
- Plate: Stainless steel multiple plates
 : Total heat transfer area 1200 cm2 (approx.)
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low.
- Flexible hoses: 2
- Hot water pump: 1
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets and outlets
 for hot and cold water mid-section of concentric tube
  • Temperature control unit to limit temperature of hot water
  • Power supply  : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 110 x 65 cm

Net weight  : Approx. 37 kg

  • TH241S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH240-231
Stainless steel jacketed vessel with coil and stirrer
- Vessel content: 2.5 L
- heat transfer area: 600 cm2 (approx.) for Jacket
 : 350 cm2 (approx.) for Coil
- Stirrer: 0- 500 rpm
- Additionaltemperature sensors for vessel content and water outlet
  • TH240-050
Computer Interface (computer not included)
 This includes TH240S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH240-060
Computer Control (computer not included)
 This includes TH 240-050 with the additional accessories for control function and additional
 software function for equipment controls by computer
  • TH241S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

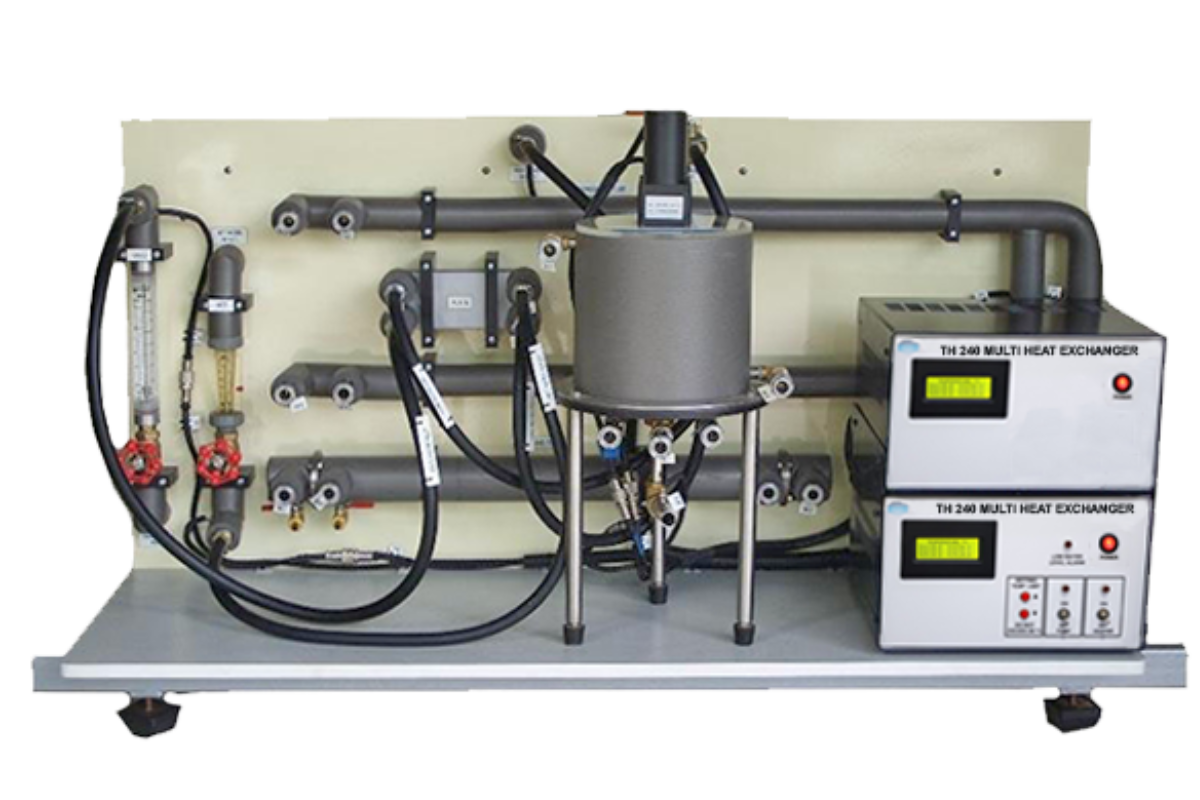

TH 240 MULTI HEAT EXCHANGER

Posted on by

Thermodynamics > Heat exchangers

TH 240 MULTI HEAT EXCHANGER

Enquiry

Video

Download

The apparatus is used for studying of three types of heat exchangers namely-concentric tube, shell and tube, and plate-under parallel or counter flow conditions.

The unit consists of the three heat exchangers and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Selection of the heat exchanger is simply by opening a valve and changing from parallel to counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Comparison of heat transfer for concentric tube, shell and tube, and plate heat exchanger.



  • Demonstration of heat transfer under parallel or counter flow.



  • Demonstration of batch type heat transfer for jacketed vessel (optional).



  • Determination heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:

- Concentric tube: Insulated stainless steel outer with inner tubes
 : Total heat transfer area 600 cm2 (approx.)
- Shell and tube: Insulated stainless steel shell with 7 stainless steel inner tubes
 : Total heat transfer area 600 cm2 (approx.)
- Plate: Stainless steel, multiple plates
 : Total heat transfer area 1200 cm2 (approx.)
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low
- Flexible hoses: 2
- Hot water pump: 1
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets and outlets
 for hot and cold water mid-section of concentric tube
  • Temperature control unit to limit temperature of hot water to not more than 80°C
  • Power supply  : 220 V, 1 Ph, 50 Hz. Other power supply is available on request

Net (unpacked) shipping dimensions WxLxH  : 65 x 150 x 65 cm

Net weight  : Approx. 75 kg

  • TH240S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH240-231
Stainless steel jacketed vessel with coil and stirrer
- Vessel content: 2.5 L
- heat transfer area: 600 cm2 (approx.) for Jacket
 : 350 cm2 (approx.) for Coil
- Stirrer: 0- 500 rpm
- Additionaltemperature sensors for vessel content and water outlet
  • TH240-050
Computer Interface (computer not included)
 This includes TH240S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH240-060
Computer Control (computer not included)
 This includes TH 240-050 with the additional accessories for control function and additional
 software function for equipment controls by computer
  • TH240S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 231 JACKETED VESSEL WITH COIL & STIRRER

Posted on by

Thermodynamics > Heat exchangers

TH 231 JACKETED VESSEL WITH COIL & STIRRER

Enquiry

Video

Download

The apparatus is used for studying heat transfer with either an external jacket or an internal coil under batch wise or continuous feed conditions.

The unit consists of a jacketed vessel with a coil and stirrer and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow or changing from jacked vessel to coil and stirrer may be done by rearranging flexible hoses.

A cold fluid in a vessel is heated by a hot fluid in the jacket or in the coil. An adjustable speed a stirrer and baffles are provided to allow thorough mixing of the vessel contents. The content volume in the vessel can be varied by an adjustable height overflow pipe. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer for jacketed vessel with or without stirrer both continuous and batch types.



  • Demonstration of heat transfer for heating coil with or without stirrer.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.



  • Effect of vessel content.

  • Heat exchanger:

- Type: Jacketed vessel
- Stainless steel vessel: Maximum content 2.5 L
- Stainless steel jacket: Heat transfer area approximately 600 cm2
- Stainless steel coil.: Heat transfer area approximately 350 cm2
- Stirrer: 0- 500 rpm
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low.
- Flexible hoses: 2
- Hot water pump: 1
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets, water outlets and vessel content.
  • Temperature control unit to limit temperature of hot water
  • Power supply  : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 115 x 65 cm

Net weight  : Approx. 50 kg

  • TH231S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH231-050
Computer Interface (computer not included)
 This includes TH231S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH231-060
Computer Control (computer not included)
 This includes TH 231-050 with the additional
 accessories for control function and additional
                             software function for equipment controls by computer
  • TH231S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

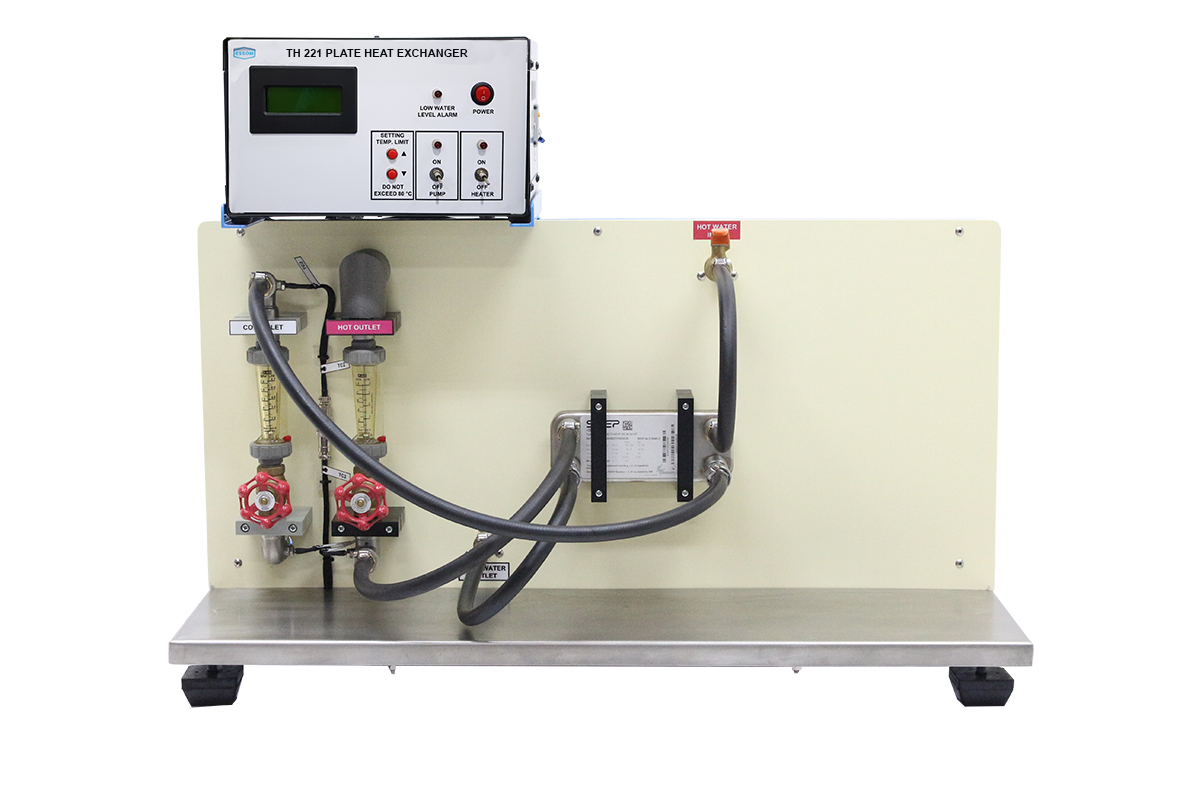

TH 221 PLATE HEAT EXCHANGER

Posted on by

Thermodynamics > Heat exchangers

TH 221 PLATE HEAT EXCHANGER

Enquiry

Video

Download

The apparatus is used for studying heat transfer through a plate heat exchanger under parallel or counter flow conditions.

The unit consists of a plate heat exchanger and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel or counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:

- Type: Plate heat exchanger
- Construction arrangement: Stainless steel
- Total heat transfer area: 1200 cm2 (approx.)
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low
- Flexible hoses: 2
- Hot water pump: 1
- Heater: 3000 W.
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets and outlets
  • Temperature control unit to limit temperature of hot water
  • Power supply  : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 84 x 65 cm

Net weight  : Approx. 32.5 kg

  • TH221S
 Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH221-050
 Computer Interface (computer not included)
This includes TH221S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH221-060
 Computer Control (computer not included)
This includes TH 221-050 with the additional
accessories for control function and additional
software function for equipment controls by computer
  • TH221S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 212 SHELL AND TUBE HEAT EXCHANGER, Transparent Casing

Posted on by

Thermodynamics > Heat exchangers

TH 212 SHELL AND TUBE HEAT EXCHANGER, Transparent Casing

Enquiry

Video

Download

The apparatus is used for studying heat transfer through a shell and tube heat exchanger under parallel or counter flow conditions.

The unit consists of a shell and tube heat exchanger, and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel and counter flow is selected by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:

- Type: Shell and tube
- Construction arrangement: Insulated stainless steel shell with stainless steel inner tubes
 : Total heat transfer area 225 cm2 (approx.)
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low
- Flexible hoses: 2
- Hot water pump: 1
- Heater: 3000 W.
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets and outlets
  • Temperature control unit to limit temperature of hot water
  • Power supply  : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 84 x 65 cm

Net weight  : Approx. 33.5 kg

  • TH212S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH212-001A
Copper inner tubes instead of stainless-steel inner tubes.
  • TH211-050
Computer Interface (computer not included)
 This includes TH212S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH211-060
Computer Control (computer not included)
 This includes TH 211-050 with the additional
 accessories for control function and additional software
 function for equipment controls by computer



  • TH212S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 211 SHELL AND TUBE HEAT EXCHANGER

Posted on by

Thermodynamics > Heat exchangers

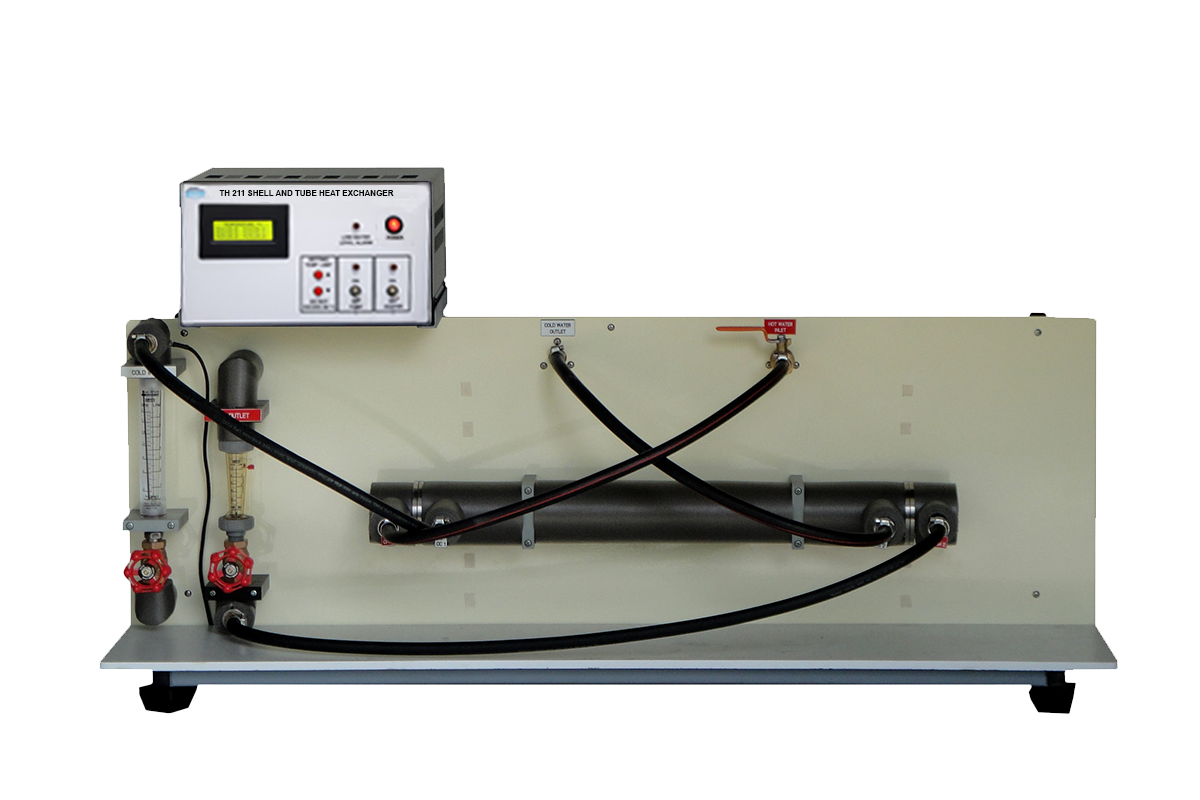

TH 211 SHELL AND TUBE HEAT EXCHANGER

Enquiry

Video

Download

The apparatus is used for studying heat transfer through a shell and tube heat exchanger under parallel or counter flow conditions.

The unit consists of a shell and tube heat exchanger and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Parallel and counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:
- Type : Shell and tube
- Construction arrangement : Insulated stainless steel shell with stainless steel inner tubes
: Total heat transfer area 600 cm2 (approx.)
  • Service module consisting of:
- Base frame with panel and footings for installation of heat exchanger, accessories and instruments
- Stainless steel hot water tank with level switch to prevent heater operation if level is too low
- Flexible hoses : 2
- Hot water pump : 1
- Heater : 3000 W.
- Flow meters : Hot water
- Sensors with digital display : Temperatures for hot and cold water inlets and outlets
  • Temperature control unit to limit temperature of hot water
  • Power supply  :  220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 140 x 65 cm

Net weight  : Approx. 60 kg

  • TH211S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH211-001A
Copper inner tubes instead of stainless-steel tubes.
  • TH211-050
Computer Interface (computer not included)
 This includes TH211S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH211-060

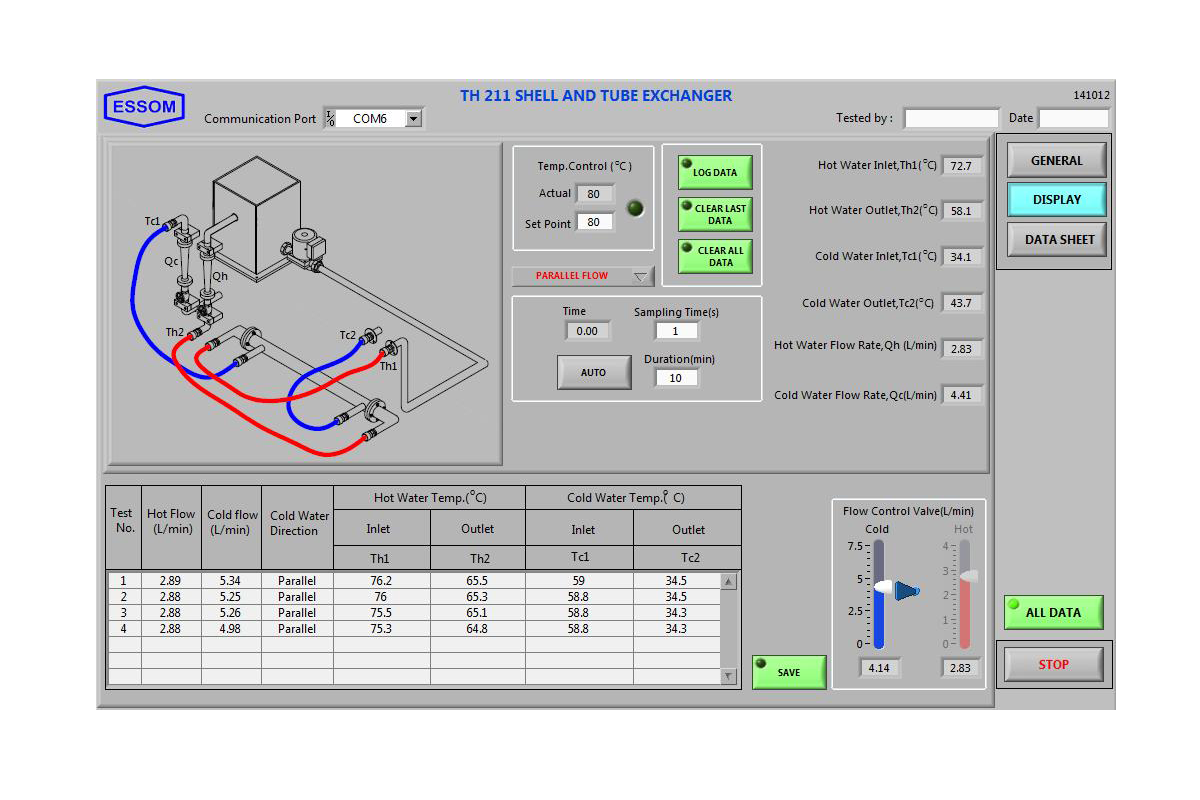

Computer Control (computer not included)
 This includes TH 211-050 with the additional
 accessories for control function and additional software
 function for equipment controls by computer

  • TH211S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 203 CONCENTRIC TUBE HEAT EXCHANGER, Different Tube Metals.

Posted on by

Thermodynamics > Heat exchangers

TH 203 CONCENTRIC TUBE HEAT EXCHANGER, Different Tube Metals.

Enquiry

Video

Download

The apparatus is used for studying heat transfer through a concentric tube under parallel or counter flow conditions and compare heat transfer coefficients for three different inner tube metals.

The unit consists of three concentric tube heat exchangers and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control. Selection of heat exchanger and parallel or counter flow is by control valves. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Comparison of heat transfer coefficients for stainless steel, copper and aluminum.



  • Effects of flow rate and temperature difference.

  • Construction arrangement
: 3 insulated concentric tubes with stainless steel outer tube and stainless steel, copper and
aluminum as inner tube metals
  • Service module consisting of:

- Hot water pump
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures at hot and cold water inlets and outlets
  • Temperature control unit to limit temperature of hot water to not more than 80°C
  • Power supply  :  220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 65 x 245 x 75 cm

Net weight  : Approx. 110 kg

  • TH203S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH010
Flow digital display
  • TH203-050
Computer Interface (computer not included)
 This includes TH203S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH203-060
Computer Control (computer not included)



This includes TH 203-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • TH203S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 202 CONCENTRIC TUBE HEAT EXCHANGER, Transparent Casing

Posted on by

Thermodynamics > Heat exchangers

TH 202 CONCENTRIC TUBE HEAT EXCHANGER, Transparent Casing

Enquiry

Video

Download

The apparatus is used for studying the heat transfer through a concentric tube under parallel or counter flow conditions.

The unit consists of a concentric tube heat exchanger, and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control.  Parallel or counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:

- Type: Concentric tube
- Construction arrangement: Insulated stainless steel outer with inner tubes
 : Total heat transfer area 225 cm2 (approx.)
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low
- Flexible hoses:  2
- Hot water pump:  1
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets and outlets
 for hot and cold water tube mid-section
 - Temperature control unit to limit temperature of hot water
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 84 x 65 cm

Net weight  : Approx. 33 kg

  • TH202S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • TH201-050

Computer Interface (computer not included)

 This includes TH202S and significant sensor(s) instead of analog measuring instrument(s), This includes TH201S and significant sensor(s) instead of analog measuring instrument(s),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH201-060

Computer Control (computer not included)



This includes TH 202-050 with the additional

accessories for control function and additional

software function for equipment controls by computer
  • TH202S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 201 CONCENTRIC TUBE HEAT EXCHANGER

Posted on by

Thermodynamics > Heat exchangers

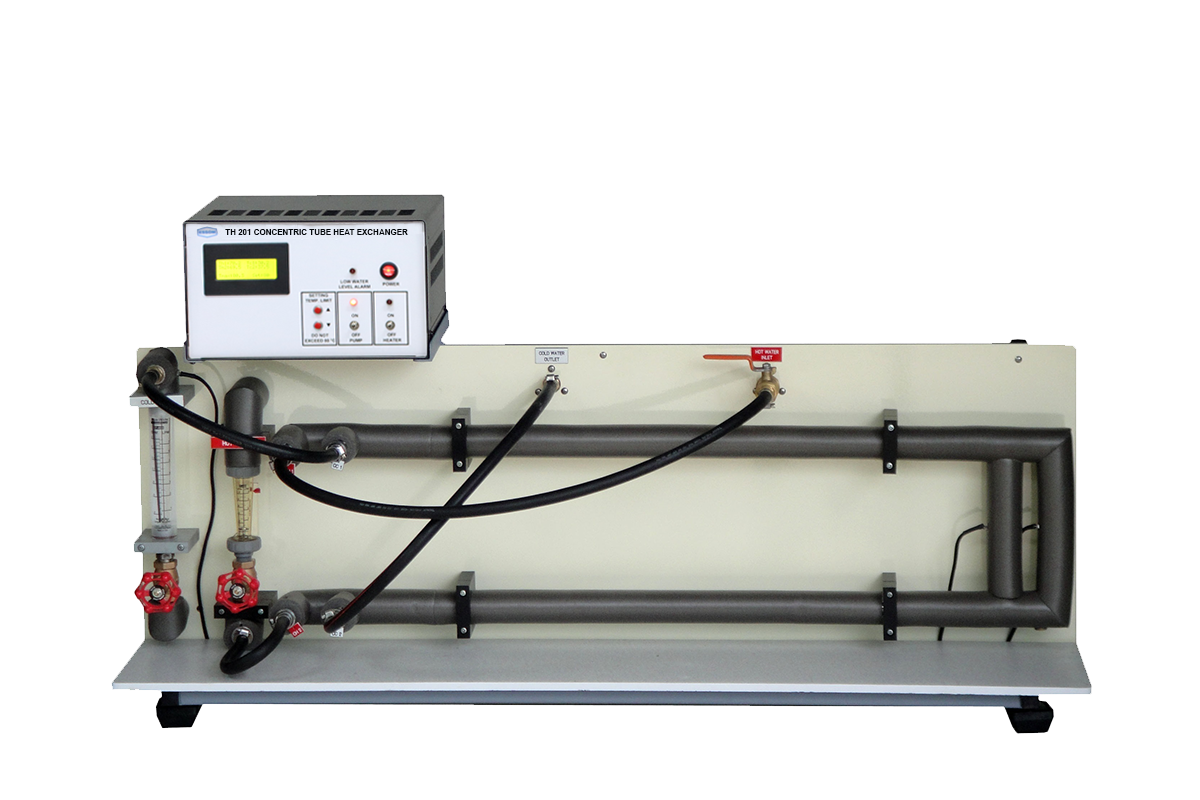

TH 201 CONCENTRIC TUBE HEAT EXCHANGER

Enquiry

Video

Download

The apparatus is used for studying the heat transfer through a concentric tube under parallel or counter flow conditions.

The unit consists of a concentric tube heat exchanger, and a service module. The module comprises a hot water tank with a transfer pump and instruments for monitoring and control.  Parallel or counter flow is by switching cold water hoses with quick coupling. The unit requires outside water supply.

Instruction manual is also included.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:

- Type: Concentric tube
- Construction arrangement: Insulated stainless steel outer with inner tubes
 : Total heat transfer area 600 cm2 (approx.)
  • Service module consisting of:

 - Base frame with panel and footings for installation of heat exchanger, accessories and instruments
 - Stainless steel hot water tank with level switch to prevent heater operation if level is too low
- Flexible hoses:  2
- Hot water pump:  1
- Heater: 3000 W
- Flow meters: Hot water
 : Cold water
- Sensors with digital display: Temperatures for hot and cold water inlets and outlets
 for hot and cold water tube mid-section
 - Temperature control unit to limit temperature of hot water
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 140 x 65 cm

Net weight  : Approx. 65 kg

  • TH201S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • TH201-050

Computer Interface (computer not included)

 This includes TH201S and significant sensor(s) instead of analog measuring instrument(s), This includes TH201S and significant sensor(s) instead of analog measuring instrument(s),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

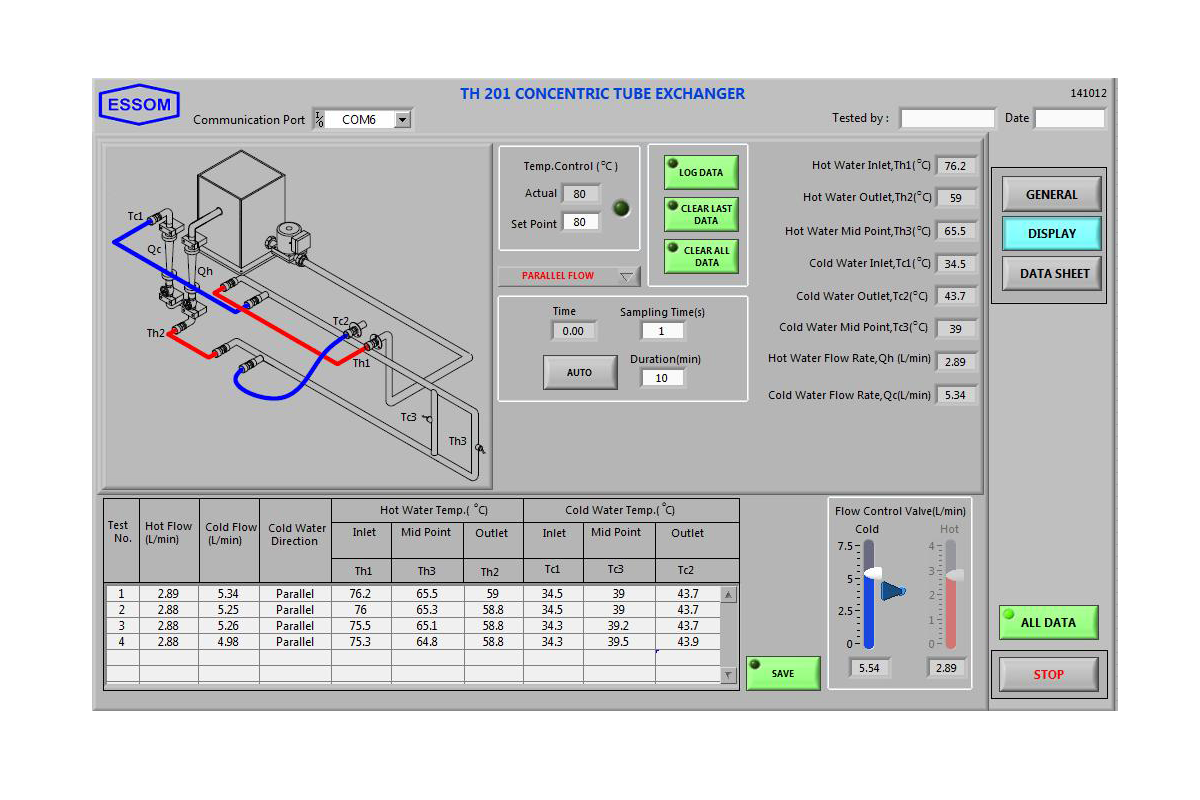

  • TH201-060

Computer Control (computer not included)

 This includes TH 201-050 with the additional accessories for control function and additional software function for equipment controls by computer

  • TH201S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS
