MP 125 COMPACT AXIAL FLOW FAN TEST SET

Posted on by

Airflow and air compression > Compact fan & blower test sets

MP 125 COMPACT AXIAL FLOW FAN TEST SET

Enquiry

Video

Download

This is a bench top unit for a studying of axial flow fan characteristics.
The unit consists of a small axial flow fan with DC motor on a steel base, a speed control switch, inlet and outlet ducts, and measuring instruments.
Instruction manual is also included.

  • Flow rate vs pressure
  • Fan input, output and overall efficiency.
  • Effect of speed on fan performance.
  • Fan ratings
- Maximum flow rate : 2.5 m3/min
- Maximum pressure : 0.10 kPa
  • Inlet duct
 : Transparent with flow straighteners and inlet orifice
  • Outlet duct
 : Transparent with flow straighteners and damper
  • Speed control
 : DC speed control
  • Measuring instruments
- Air flow : Inlet orifice with inclined water manometer
- Differential pressure across fan : Twin inclined water manometers (for air flow rate and differential pressure across fan),
  0-450 mm x 1 mm graduation,              multiple slope 1:10, 1:5, 1:2 and 1:1
- Temperature : Thermometer
- Atmospheric pressure : Barometer
- Sensors with digital display : Sensors with digital display
: Fan speed
  • Power supply
 : 220 V 1 Ph 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
: 85 x 360 x 130 cm
  • Net weight
: Approx. 430 kg
  • MP125S
 Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

MP 124 AXIAL FLOW FAN TEST SET

Posted on by

Airflow and air compression > Compact fan & blower test sets

MP 124 AXIAL FLOW FAN TEST SET

Enquiry

Video

Download

This is a bench top set for studying industrial type axial flow fan characteristics.
The unit consists of a single stage variable pitch axial flow fan and motor, an advanced inverter, inlet and outlet ducts, and instruments for measurement of air flow rate, pressures, and temperature.
Instruction manual is also included.

  • Flow rate vs pressure.
  • Fan input, output and efficiency.
  • Effect of speed on fan performance.
  • Effect of impeller pitch angle on fan performance.
  • Investigations of velocity  distribution.
  • Effect of guide vane on fan performance (optional).
Fan
- Diameter: 400 mm
- Impeller construction: Single stage, aerofoil aluminium blades
 : Adjustable pitch angle
- Rated maximum flow rate: 4,000 m3/h
- Rated maximum pressure: 35 mm water
  • Inlet duct with inlet cone and flow straightener

  • Outlet duct with flow straightener and damper

  • Speed control
: Advanced inverter
  • Measuring instruments:

- Air flow rate: Travelling pitot and inlet cone and inclined water manometer
- Differential pressure: Twin inclined water manometer (for air flow rate and differential pressure across
   fan), 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Fan speed and motor input power: Advanced inverter
- Temperature : Thermometer
  • Accessory
: Barometer
  • Power supply
: 220V 1Ph 50 Hz. Other power supply is available on request.

  • Net shipping dimensions WxLxH
: 85 x 360 x 130 cm
  • Net weight
: Approx. 430 kg
MP124SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • MP124-010A
Anemometer for flow rate measurement instead of travelling pitot and inclined water manometer
  • MP124-005
Guide vane for increasing fan output pressure
  • MP124-006
Second fan with motor and inverter for Two Stage Axial Flow Fan Test Set
  • MP124-007
Exhaust silencer with stand
  • MP124-050
Computer Interface (computer not included)
 This includes MP124S and significant sensor(s) instead of analog measuring instrument(s), data acquisition
 (capture, display, graph and/or data export), additional software function for real-time data logging with
 computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone
 (iOS and Android)
SIMILAR PRODUCTS

MP 119 CENTRIFUGAL BLOWER TEST SET

Posted on by

Airflow and air compression > Compact fan & blower test sets

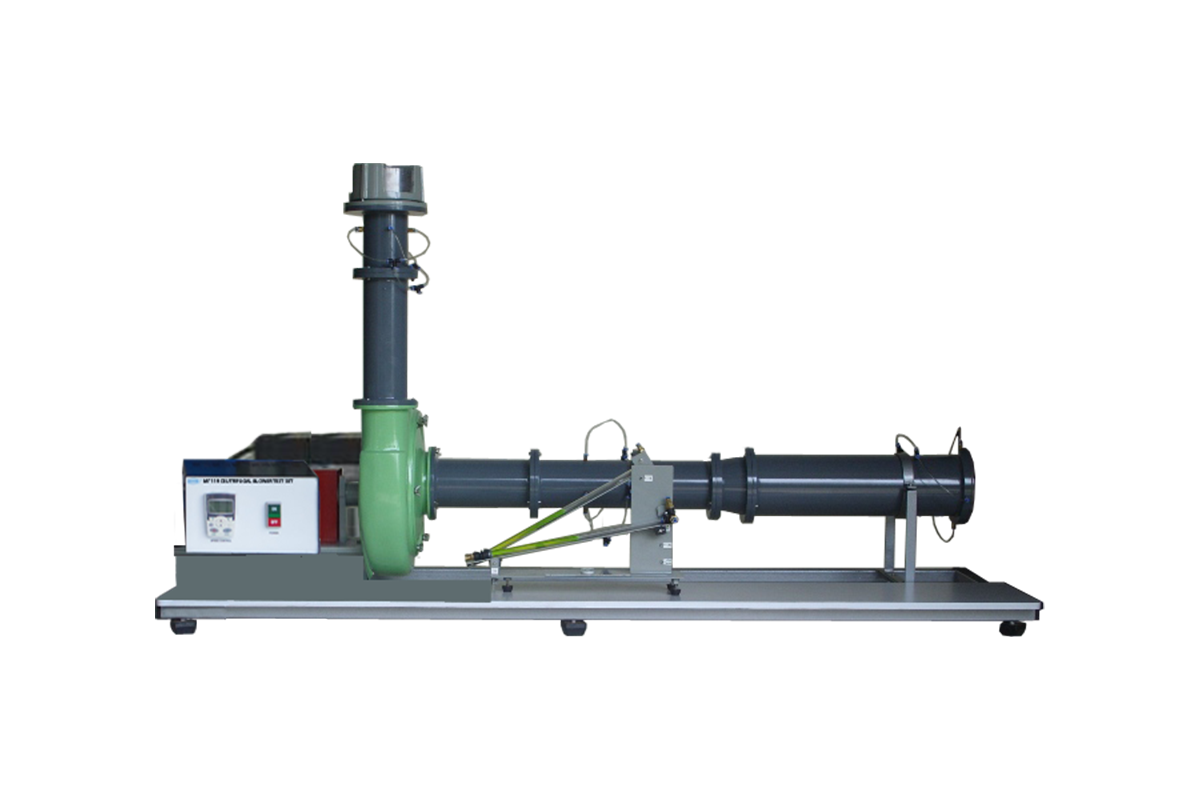

MP 119 CENTRIFUGAL BLOWER TEST SET

Enquiry

Video

Download

This a bench top unit for studying the centrifugal blower characteristics.
The unit consists of an industrial type centrifugal blower with a motor and advanced inverter, inlet and outlet ducts with flow straighteners, a damper, and measuring instruments according to BS 848 and ISO 1042. Extra blades are provided for comparison study.
Instruction manual is also included.

  • Inlet and discharge pressures vs blower speed
  • Flow rate vs speed
  • Blower input, output and efficiency
  • Comparison of backward, radial, and forward blade impellers
  • Blower rating at 2900 rpm:

- Maximum flow rate (unchoked): 15 m3/min
- Maximum head (fully choked): 150 mm water
  • Inlet duct with flow straightener

  • Outlet duct with flow straightener and damper

  • Speed control
: Advanced inverter
  • Measuring instruments

- Air flow rate: Inlet orifice plate or Venturi nozzle with inclined water manometer
- Differential pressures: Twin inclined water manometers (for air flow rate and pressure across fan),
   0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Blower speed and motor input power: Advanced inverter
- Temperature: Thermometer
  • Accessories
: 2 extra impellers with radial and forward blade designs
 : Barometer
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
: 85 x 245 x 75 cm
  • Net weight
: Approx. 160 kg
MP119SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
MP100-008Venturi nozzle for flow rate measurement
MP100-009Travelling pitot tube for flow rate measurement
MP100-010AAnemometer for flow rate measurement instead of orifice plate or Venturi nozzle and inclined water manometer.
MP119-050Computer Interface (computer not included)
 This includes MP119S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
SIMILAR PRODUCTS

MP 115 COMPACT CENTRIFUGAL FAN TEST SET

Posted on by

Airflow and air compression > Compact fan & blower test sets

MP 115 COMPACT CENTRIFUGAL FAN TEST SET

Enquiry

Video

Download

This is a bench top unit for studying the small centrifugal fan characteristics.
The unit consists of a small industrial centrifugal fan with a backward blade impeller and a motor on a steel base, an advanced inverter, inlet and outlet ducts, and measuring instruments. An interchangeable forward blade impeller is provided for comparison of operating characteristics.
Instruction manual is also included.

  • Flow rate vs pressure
  • Fan input, output and overall efficiency
  • Effect of speed on fan performance
  • Comparison of backward and forward blade impellers
  • Fan ratings

- Maximum flow rate: 10 m3/min
- Maximum pressure: 0.5 kPa
  • Inlet duct
: Transparent with flow straighteners and inlet orifice
  • Outlet duct
: Transparent with flow straighteners and damper
  • Measuring instruments

- Air flow rate: Inlet orifice and inclined water manometer
- Differential pressure across fan: Twin inclined water manometers (for air flow rate and differential pressure across fan),
   0-450 mm x 1 mm graduation, multiple slope 1: 10, 1:5, 1:2 and 1:1
- Fan speed and motor input power: Advanced inverter
- Temperature: Thermometer
  • Accessories
: Forward blade impeller
 : Barometer
  • Power supply
: 220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
 : 64 x 101 x 55 cm
  • Net weight
 : Approx. 40 kg
  • MP115S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog

 measuring instruments.
  • MP100-010

Anemometer for flow rate measurement instead of orifice and inclined water manometer

SIMILAR PRODUCTS

MP 100 AIR FLOW BENCH

Posted on by

Airflow and air compression > Compact fan & blower test sets

MP 100 AIR FLOW BENCH

Enquiry

Video

Download

This is a bench top unit for studying the air flow measurement and air flow characteristics in optional apparatus.
The set uses an industrial type centrifugal blower with inlet and outlet ducts, flow straighteners, a damper, various flow measuring devices using manometers for the study of air flow measurement according to BS848, BS1042 and ISO5167. Various measuring devices for the study of air flow are provided as an option.
Instruction manual is also included.

  • Air flow measurement
  • Bernoulli’s experiment (optional)
  • Flow around a bend (optional)
  • Air flow in pipes (optional)
  • Free jet study (optional)
  • Air flow drag (optional)
  • Boundary layer (optional)
  • Flow Visualization (optional)
  • Blower ratings:
-  Maximum flow rate (unchoked) :  12 m3/min
-  Maximum head (fully choked) :  80 mm water
  • Inlet duct
 :  with flow straightener
  • Outlet duct
 :  with flow straightener and damper
  • Measuring instruments:
-  Air flow rate :  Venturi nozzle, orifice plate, inlet cone, and traveling pitot using inclined water manometer
-  Differential pressures :  Twin inclined water manometers., 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
-  Temperature :  Thermometer
  • Accessories
 :  Barometer
  • Power supply
 :  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
 :  75 x 245 x 130 cm (fully installed 75x275x200 cm)
  • Net weight
 :  Approx. 200 kg
  • MP100S
Learning Software
to support both online/offline training with data calculation and analysis by manual data entry
from analog measuring instruments.
  • MP100-010
Anemometer
  • MP100-020
Air flow adapter
  • MP100-050

Computer Interface (computer not included)

This includes MP100S and significant sensor(s)instead of analog measuring instrument(s),
data acquisition (capture, display, graph and/or data export), additional software function for real-time
data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
