MP 330UH SUBSONIC WIND TUNNEL, Upstream Fan, High Speed

Airflow and air compression > Wind Tunnels

MP 330UH SUBSONIC WIND TUNNEL, Upstream Fan, High Speed

Enquiry

Video

Download

The wind tunnel is an open circuit upstream fan type, designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.

A dual an axial flow fans delivers air through a diffuser, flow straightener, three wire mesh screens and a high contraction ratio section to ensure uniform velocity across the transparent test section. The diffuser and contraction sections have a high quality internal finish to minimize the boundary effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. The fan speed is adjustable by an inverter.

Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model and air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components load cell support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence, this angle is indicated on an angular scale.

The wind tunnel is mounted on a steel table on wheels.

Instruction manual is also included.

  • Pressure and velocity measurement.

  • Estimation of drag coefficients of various bodies, e.g. sphere, hemisphere, disc, streamlined shape etc.

  • Estimation of drag, lift ang pitching moment (optional) coefficients of an aerofoil.

  • Pressure distribution around an aerofoil or a cylinder.

  • Effects of instability of a “flutter Wing”.

  • Investigation of boundary layer at a flat plate by measuring total head distribution.

  • Stream lines visualization using a smoke generator.

  • Wakes behind models.

  • Fan:

- Diameter: 630 mm
- Impeller: Single stage, aerofoil aluminum blade
  • Contraction area ratio
: 7:1
  • Test section
: 300 mm x 300 mm x 600 mm long, transparent on three sides
  • Maximum air velocity
: Over 60 m/s
  • Measuring instruments

- Water manometer: Twin type
- Wind velocity

: Contraction section differential pressure with inclined water manometer and velocity calibration


 graph (to be used with inclined water manometer above)

- Sensors with digital display


  • Lift and drag
: Two component balance with model holder for measurement of lift and drag
  • Power supply
: 380 V, 3 Ph, 50 Hz. Other power supply is available on request.

  • Net (unassembled) Shipping Dimensions WxLxH: 95x 385 x 130 cm
  • Net Weight: Approx. 650 kg
  • MP330UH S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • MP330-003A
Three component balance with digital display and model holder for measurement of lift, drag, and pitching instead of two component balance.
  • MP330-007
Exhaust silencer with stand
  • MP330-110
Anemometer for velocity measurement, telescopic handle
  • MP330-111
Angle digital display for model angular position. It is to be attached to the two or three component balance.
  • MA216-450
Water manometer, inclined, multitube, air pressure
  • MA216-450D
Differential pressure sensor with sequential readings (To be used with MP330U-160)
  • MP330-121
Pitot-static probe, stainless steel
  • MP330-122
Yaw probe, three tube type with clamp
  • MP330-125
Wake survey rake (To be used MA216-450, separately supplied)
  • MP330D-160
Computer Control (computer not included)
 This includes MP330UHS and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging and control with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • MP330UH S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

MP 330-160 Computer Control

OPTIONAL MODELS FOR LIFT AND DRAG

: Models for a study of lift, drag and pitching include:

MP330-011Sphere, plastics
MP330-012Hemisphere, plastics
MP330-013Circular disc, plastics
MP330-014Circular ring, plastics
MP330-015Square plate, plastics
MP330-016Vane, plastics
MP330-017Cylinder, plastics
MP330-018Streamlined shape, plastics
MP330-019Aerofoil, aluminium
MP330-019LAerofoil, long, aluminium
MP330-025Model air plane, plastics
MP330-026Model automobile, plastics
MP330-030Aerofoil with slot and flap, aluminium
MP330-030LAerofoil with slot and flap, long

OPTIONAL MODELS AND ACCESSROIES FOR INDIVIDUAL STUDY

MP330-050Flutter wing, aluminium aerofoil on steel frame.
MP330-053Pressure wing, aluminium(To be used with MA216-450)
MP330-055Pressure cylinder, plastics (To be used with MA216-450)
MP330-057Boundary layer plate with probe.
MP330-130Smoke generator set
MP142-003Additional smoke fluid
SIMILAR PRODUCTS

MP 330 U SUBSONIC WIND TUNNEL, Upstream Fan

MP 330 U SUBSONIC WIND TUNNEL, Upstream Fan

Enquiry

Video

Download

The wind tunnel is an open circuit upstream fan type, designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.

An axial flow fan delivers air through a diffuser, flow straightener, three wire mesh screens and a high contraction ratio section to ensure uniform velocity across the transparent test section. The diffuser and contraction sections have a high quality internal finish to minimize the boundary effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. The fan speed is adjustable by an inverter.

Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model and air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components load cell support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence, this angle is indicated on an angular scale.

The wind tunnel is mounted on a steel table on wheels.

Instruction manual is also included.

  • Pressure and velocity measurement.

  • Estimation of drag coefficients of various bodies, e.g. sphere, hemisphere, disc, streamlined shape etc.

  • Estimation of drag, lift ang pitching moment (optional) coefficients of an aerofoil.

  • Pressure distribution around an aerofoil or a cylinder.

  • Effects of instability of a “flutter Wing”.

  • Investigation of boundary layer at a flat plate by measuring total head distribution.

  • Stream lines visualization using a smoke generator.

  • Wakes behind models.

  • Fan:

- Diameter: 500 mm
- Impeller: Single stage, aerofoil aluminum blade
  • Contraction area ratio
: 7:1
  • Test section
: 300 mm x 300 mm x 600 mm long, transparent on three sides
  • Maximum air velocity
: Over 30 m/s
  • Measuring instruments

- Water manometer: Twin type
- Wind velocity

: Contraction section differential pressure with inclined water manometer and velocity calibration


 graph (to be used with inclined water manometer above)

- Sensors with digital display


  • Lift and drag
: Two component balance with model holder for measurement of lift and drag
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

  • Net (unassembled) Shipping Dimensions WxLxH: 95x 385 x 130 cm
  • Net Weight: Approx. 600 kg
  • MP330US

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • MP330-003A
Three component balance with digital display and model holder for measurement of lift, drag, and pitching instead of two component balance.
  • MP330-007
Exhaust silencer with stand
  • MP330-110
Anemometer for velocity measurement, telescopic handle
  • MP330-111
Angle digital display for model angular position. It is to be attached to the two or three component balance.
  • MA216-450
Water manometer, inclined, multitube, air pressure
  • MA216-450D
Differential pressure sensor with sequential readings (To be used with MP330U-160)
  • MP330-121
Pitot-static probe, stainless steel
  • MP330-122
Yaw probe, three tube type with clamp
  • MP330-125
Wake survey rake (To be used MA216-450, separately supplied)
  • MP330U-160
Computer Control (computer not included)
 This includes MP330US and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging and control with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • MP330DS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

MP 330-160 Computer Control

OPTIONAL MODELS FOR LIFT AND DRAG

: Models for a study of lift, drag and pitching include:
MP330-011 Sphere, plastics
MP330-012 Hemisphere, plastics
MP330-013 Circular disc
MP330-014 Circular ring
MP330-015 Square plate
MP330-016 Vane
MP330-017 Cylinder, plastics
MP330-018 Streamlined shape, plastics
MP330-019 Aerofoil, aluminium
MP330-019L Aerofoil, long, aluminium
MP330-025 Model air plane, plastics
MP330-026 Model automobile, plastics
MP330-030 Aerofoil with slot and flap, aluminium and stainless steel
MP330-030L Aerofoil with slot and flap, long aluminium and stainless steel
OPTIONAL MODELS AND ACCESSROIES FOR INDIVIDUAL STUDY
MP330-050 Flutter wing, aluminium aerofoil on steel frame.
MP330-053 Pressure wing, aluminium(To be used with MA216-450)
MP330-055 Pressure cylinder, plastics (To be used with MA216-450)
MP330-057 Boundary layer plate with probe.
MP330-130 Smoke generator set
MP142-003 Additional smoke fluid
SIMILAR PRODUCTS

MP 330D SUBSONIC WIND TUNNEL, Downstream Fan

MP 330D SUBSONIC WIND TUNNEL, Downstream Fan

Enquiry

Download

The wind tunnel is an open circuit down stream fan type designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.

The air enters the tunnel via an entrance flare. A flow straightener, three wire mesh screens, and a high contraction ratio section ensure uniform velocity across the transparent test section. Downstream of the working section is a low angle diffuser which terminates at the tunnel fan. The diffuser and contraction sections have a high quality internal finish to minimize the boundary layer effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. Fan speed is adjustable by an inverter.

Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model. Air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components balance support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence.  This angle is indicated on an angular scale.

The tunnel is mounted on a stainless steel table on wheels.

Instruction manual is also included.

  • Pressure and velocity measurement.

  • Estimation of drag coefficients of various bodies, e.g. sphere, hemisphere, disc, streamlined shape etc.

  • Estimation of drag, lift ang pitching moment (optional) coefficients of an aerofoil.

  • Pressure distribution around an aerofoil or a cylinder.

  • Effects of instability of a “flutter Wing”.

  • Investigation of boundary layer at a flat plate by measuring total head distribution.

  • Stream lines visualization using a smoke generator.

  • Wakes behind models.

  • Fan:

- Diameter: 500 mm
- Impeller: Single stage, aerofoil aluminum blade
  • Contraction area ratio
: 7:1
  • Test section
: 300 mm x 300 mm x 600 mm long, transparent on three sides
  • Maximum air velocity
: Over 30 m/s
  • Measuring instruments

- Water manometer: Twin type
- Wind velocity : Multiple taps contraction section differential pressure with velocity calibration graph (to be used with inclined water manometer above)
- Sensors with digital display
  • Lift and drag
: Two component balance with model holder for measurement of lift and drag
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH: 140 x 440 x 155 cm
  • Net Weight: Approx. 560 kg
  • MP330DS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • MP330DS
Three component balance with digital display and model holder for measurement of lift, drag and pitching instead of two component balance
  • MP330-007
Exhaust silencer with stand
  • MP330-110
Anemometer for velocity measurement, telescopic handle
  • MP330-111
Angle digital display for model angular position. It is to be attached to the two or three component balance.
  • MA216-450
Water manometer, inclined, multitube, air pressure
  • MA216-450D
Differential pressure sensor with sequential readings (To be used with MP330D-160)
  • MP330-121
Pitot-static probe, stainless steel
  • MP330-122
Yaw probe, three tube type with clamp
  • MP330-125
Wake survey rake (To be used MA216-450, separately supplied)
  • MP330D-160
Computer Control (computer not included)
 This includes MP330DS and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging and control with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • MP330DS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

MP 330-160 Computer Control

OPTIONAL MODELS FOR LIFT AND DRAG

: Models for a study of lift, drag and pitching include:
MP330-011 Sphere, plastics
MP330-012 Hemisphere, plastics
MP330-013 Circular disc
MP330-014 Circular ring
MP330-015 Square plate
MP330-016 Vane
MP330-017 Cylinder, plastics
MP330-018 Streamlined shape, plastics
MP330-019 Aerofoil, aluminium
MP330-019L Aerofoil, long, aluminium
MP330-025 Model air plane, plastics
MP330-026 Model automobile, plastics
MP330-030 Aerofoil with slot and flap, aluminium and stainless steel
MP330-030L Aerofoil with slot and flap, long aluminium and stainless steel
OPTIONAL MODELS AND ACCESSROIES FOR INDIVIDUAL STUDY
MP330-050 Flutter wing, aluminium aerofoil on steel frame.
MP330-053 Pressure wing, aluminium(To be used with MA216-450)
MP330-055 Pressure cylinder, plastics (To be used with MA216-450)
MP330-057 Boundary layer plate with probe.
MP330-130 Smoke generator set
MP142-003 Additional smoke fluid
SIMILAR PRODUCTS

MP 315D SUBSONIC WIND TUNNEL, Downstream Fan

MP 315D SUBSONIC WIND TUNNEL, Downstream Fan

Enquiry

Video

Download

The wind tunnel is an open circuit down stream fan type designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.

The air enters the tunnel via a wire mesh screen and a flow straightener. A high contraction ratio section ensures uniform velocity across the transparent test section. Downstream of the working section is a low angle diffuser which terminates at the tunnel fan. The diffuser and contraction sections have a high quality internal finish to minimize the boundary layer effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. Fan speed is adjustable by an inverter.

Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model. Air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components balance support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence.  This angle is indicated on an angular scale.

The tunnel is on a frame with adjustable footings for table top mounting.

Instruction manual is also included.

  • Pressure and velocity measurement.
  • Estimation of drag coefficients of various bodies, eg. sphere, hemisphere, disc, streamlined shape etc.
  • Estimation of drag and lift coefficients of an aerofoil.
  • Pressure distribution around an aerofoil or a cylinder.
  • Investigation of boundary layer at a flat plate by measuring total head distribution.
  • Stream lines visualization using a smoke generator.
  • Wakes behind models.









  • Fan:

- Diameter: 300 mm
- Impeller: Single stage, aerofoil blade
  • Contraction area ratio
: 9:1
  • Test section
: 150 mm x 150 mm x 450 mm long, transparent on three sides
  • Maximum air velocity
: Over 30 m/s
  • Measuring instruments

- Water manometer: Twin type
- Wind velocity : Multiple taps contraction section differential pressure with velocity calibration graph (to be used with inclined water manometer above)
- Sensors with digital display
  • Lift and drag
: Two component balance with model holder for measurement of lift and drag
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 60 x 145 cm
  • Net Weight: 55 kg
  • MP315DS
Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • MP315-003A
Three component balance with digital display and model holder for measurement of lift, drag, and pitching instead of two component balance.
  • MP330-110
Anemometer for velocity measurement, telescopic handle
  • MA216-450
Multitube inclined water manometer
  • MA216-450D
16 points differential pressure sensor with sequential readings (To be used with computer)
  • MP315-121
Pitot-static probe, stainless steel
  • MP315-122
Yaw probe, three tube type with clamp
  • MP315-125
Wake survey rake
  • MP315-160
Computer Control (computer not included) This includes MP315DS and significant sensor(s) instead of analog measuring instrument(s),
data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging and control
with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • MP315DS
Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

MP315-160 Computer Control

OPTIONAL MODELS FOR LIFT AND DRAG

: Models for a study of lift, drag and pitching include:

MP315-011Sphere, plastics
MP315-012Hemisphere, plastics
MP315-013Circular disc
MP315-014Circular ring
MP315-015Square plate
MP315-016Vane
MP315-017Cylinder, plastics
MP315-018Streamlined shape, plastics
MP315-019Aerofoil, aluminium
MP315-019LAerofoil, long, aluminium
MP315-030Aerofoil with slot and flap, aluminium
MP315-030LAerofoil with slot and flap, long

OPTIONAL MODELS AND ACCESSROIES FOR INDIVIDUAL STUDY

MP315-053 Pressure wing, aluminium
MP315-055Pressure cylinder, plastics:
MP315-057Boundary layer plate with probe
MP330-130Smoke generator set
MP142-003Additional Smoke fluid
SIMILAR PRODUCTS

MP 142 AIR FLOW VISUALIZATION

MP 142 AIR FLOW VISUALIZATION

Enquiry

Download

The apparatus is intended for visualization of stream lines flow around models.
The apparatus consists of a stilling entrance, a contraction section with air flow straighteners, a streamlines distributor, a viewing window, and a smoke generator.
Air flow is generated by a fan. The window has a black back ground and side lights are provided for better visualization of the streamlines. The stream lines are in a vertical pattern. Models are provided.
Instruction manual is also included.

  • Laminar and turbulence flow observation.



  • Flow patterns around bodies.



  • Boundary separation on bodies.



  • Effects of angle of attack.

  • Viewing window
:  180 x 250 mm
  • Number of streamlines
:  18
  • Smoke generator
:  1 ea. with smoke fluid
  • Models
:  1 x Aerofoil NACA 0015 profile
:  1 x Cylinder
:  1 x Plate
:  1 x Automobile
  • Power supply
:  220V 1Ph 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 60 x 145 cm
  • Net Weight: 55 kg
MP142-001 Additional model set A: Slotted orifice, circular disc, circular orifice, sphere, hemispheres, wing tip, ISA nozzle and truck.
MP142-002 Additional model set B: Bend, bend with turning vane, corner, cylindrical tube bank.
MP142-003 Additional smoke fluid, 4 L
  • Other accessories can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])




SIMILAR PRODUCTS

MP 203 TWO STAGE AIR COMPRESSOR TEST SET, Air-Water Cooled

MP 203 TWO STAGE AIR COMPRESSOR TEST SET, Air-Water Cooled

Enquiry

Video

Download

The test set is for studying the two stage reciprocating air compressor characteristics.
For educational purpose, the two stages are separated and can be operated at different speeds. Both stages are connected by vee-belts to the same motor with an advanced inverter. The second stage compressor has three alternative pulleys to vary the pressure ratio between the two stages. An intercooler is provided between first and second stage. The air receiver has a drain valve, safety valve, pressure switches and a discharge valve. The piping system is arranged such that intercooler or second stage compressor can be by passed. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.

  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.

  • Effect of compressor speed.

  • Effect of intercooler.

  • Effect of second stage drive ratio.

  • Air water heat exchanger demonstration.

  • Compressors:

- Type:  Air-cooled, two stage
- Displacement:  165 mL or approximate equal
- Second stage:  Single cylinder, completed with three different diameter pulleys
- Maximum working pressure:  12 kg/cm2
  • Air receiver
:  Approx. 60 L
  • Intercooler
:  Water cooled, counter flow heat exchanger
  • Measuring instruments

- Pressures:  Pressure gauges at first stage and second stage outlets, and air receiver
- Air flow rate:  Inlet orifice plate with air box and inclined water manometer, 0-450 mm x 1 mm
    graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Motor input power:  Advanced inverter
- Cooling water flow rate:  Rotameter
- Sensors with digital display:  Speed for compressors
 :  Temperatures for ambient, outlet air of each stage, second stage inlet and cooling
    water inlet and outlet



:  Atmospheric pressure
  • Power supply
:  220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 110 x 140 x 130 cm
  • Net Weight: Approx. 190 kg
  • MP203S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • MP200-030
P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer.
  • MP201-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power.
  • MP203-002A

Two separate motors (first stage 0.75 kW, second    stage 0.75 kW) with advanced inverters for variable speed ratio between the first and the second stage, instead of single motor and advanced inverter.

  • MP203-020

Additional receiver tank.

  • MP203-050
Computer Interface (computer not included)
This includes MP203S and significant sensor(s) instead of analog measuring instrument(s),
 data acquisition (capture, display, graph and/or data export),

additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • Other accessories can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • MP203S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

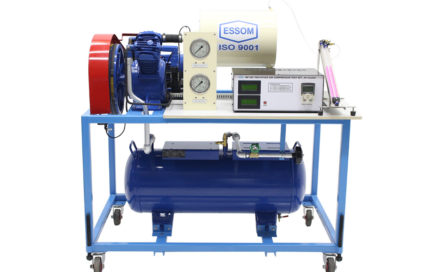

MP 202 TWO STAGE AIR COMPRESSOR TEST SET, Air Cooled

MP 202 TWO STAGE AIR COMPRESSOR TEST SET, Air Cooled.

Enquiry

Download

The test set is for studying the two stage reciprocating air compressor characteristics.
An industrial type compressor is driven via a vee-belt by a motor with an advanced inverter. Air cooling between the two stages is by finned tubes. The air receiver has safety valves, pressure switches, a drain valve and a discharge valve. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.

  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.
  • Effect of compressor speed.
  • Effect of inter cooling (optional).
  • Air water heat exchanger demonstration (optional).
  • Compressors:

- Type:  Air cooled, two stages
- Displacement:  300 ml or approximately equal
- Maximum working pressure:  12 kg/cm2
  • Air receiver
:  Approx. 60 L
  • Measuring instruments

- Pressure:  Pressure gauges at first stage and second stage outlets
- Air flow rate:  Inlet orifice plate with air box and inclined water manometer, 0-450 mm x 1 mm
   graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Motor input power:  Advanced inverter
- Sensors with digital display:  Speed for compressor
 :  Temperatures for ambient and outlet air of each stage
 :  Atmospheric pressure
  • Power supply
:  220V 1Ph 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 95 x 128 x 135 cm
  • Net Weight: Approx. 195 kg

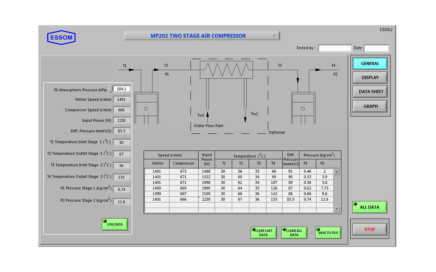

  • MP202S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • MP200-030
P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer.
  • MP201-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power.
  • MP202-013
Intercooler
This consists of water cooled inter cooler unit with rotameter,
temperatures for cooling water inlet and outlet. In this case, an outside water supply is required.
  • MP202-050

Computer Interface (computer not included) This includes MP202S and significant sensor(s)

 instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • Other accessories can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • MP202S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

MP 201 SINGLE STAGE AIR COMPRESSOR TEST SET, Air Cooled

MP 201 SINGLE STAGE AIR COMPRESSOR TEST SET, Air Cooled.

Enquiry

Download

The test set is for studying the single stage reciprocating air compressor characteristics.
An industrial type compressor is driven via a vee-belt by a motor with an advanced inverter. The air receiver has, safety valves, pressure switch, a drain valve and a discharge valve. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.

  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.

  • Effect of compressor speed.

  • Compressors:

- Type    : Air-cooled, single stage
- Displacement      : 150 ml or approximate equal
- Maximum working pressure: 7 kg/cm2
  • Air receiver
: Approx. 60 L
  • Measuring instruments

- Pressure: Pressure gauge at compressor outlet
- Air flow rate:  Inlet orifice plate with air box and inclined water manometer
   0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Motor input power : Advanced inverter
- Sensors with digital display: Speed for compressor
 : Temperatures for ambient and outlet air
 : Atmospheric pressure
  • Power supply
: 220V 1Ph 50 Hz. Other power supply is available on request.







  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 135 x 135 cm
  • Net Weight: Approx. 160 kg
  • MP201S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • MP200-030
P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer.
  • MP201-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power.
  • MP201-050

Computer Interface (computer not included)

This includes MP201S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),



additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • Other accessories can be supplied on request.

  • Other optional equipment, please contact manufacturer ([email protected])
  • MP201S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

MP 125 COMPACT AXIAL FLOW FAN TEST SET

MP 125 COMPACT AXIAL FLOW FAN TEST SET

Enquiry

Video

Download

This is a bench top unit for a studying of axial flow fan characteristics.
The unit consists of a small axial flow fan with DC motor on a steel base, a speed control switch, inlet and outlet ducts, and measuring instruments.
Instruction manual is also included.

  • Flow rate vs pressure
  • Fan input, output and overall efficiency.
  • Effect of speed on fan performance.
  • Fan ratings
- Maximum flow rate : 2.5 m3/min
- Maximum pressure : 0.10 kPa
  • Inlet duct
: Transparent with flow straighteners and inlet orifice
  • Outlet duct
: Transparent with flow straighteners and damper
  • Speed control
: DC speed control
  • Measuring instruments
- Air flow : Inlet orifice with inclined water manometer
- Differential pressure across fan : Twin inclined water manometers (for air flow rate and differential pressure across fan),
  0-450 mm x 1 mm graduation,              multiple slope 1:10, 1:5, 1:2 and 1:1
- Temperature : Thermometer
- Atmospheric pressure : Barometer
- Sensors with digital display : Sensors with digital display
: Fan speed
  • Power supply
: 220 V 1 Ph 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
: 85 x 360 x 130 cm
  • Net weight
: Approx. 430 kg
  • MP125S
Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

MP 124 AXIAL FLOW FAN TEST SET

Enquiry

Video

Download

This is a bench top set for studying industrial type axial flow fan characteristics.
The unit consists of a single stage variable pitch axial flow fan and motor, an advanced inverter, inlet and outlet ducts, and instruments for measurement of air flow rate, pressures, and temperature.
Instruction manual is also included.

  • Flow rate vs pressure.
  • Fan input, output and efficiency.
  • Effect of speed on fan performance.
  • Effect of impeller pitch angle on fan performance.
  • Investigations of velocity  distribution.
  • Effect of guide vane on fan performance (optional).
Fan
- Diameter: 400 mm
- Impeller construction: Single stage, aerofoil aluminium blades
 : Adjustable pitch angle
- Rated maximum flow rate: 4,000 m3/h
- Rated maximum pressure: 35 mm water
  • Inlet duct with inlet cone and flow straightener

  • Outlet duct with flow straightener and damper

  • Speed control
: Advanced inverter
  • Measuring instruments:

- Air flow rate: Travelling pitot and inlet cone and inclined water manometer
- Differential pressure: Twin inclined water manometer (for air flow rate and differential pressure across
   fan), 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Fan speed and motor input power: Advanced inverter
- Temperature : Thermometer
  • Accessory
: Barometer
  • Power supply
: 220V 1Ph 50 Hz. Other power supply is available on request.

  • Net shipping dimensions WxLxH
: 85 x 360 x 130 cm
  • Net weight
: Approx. 430 kg
MP124SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • MP124-010A
Anemometer for flow rate measurement instead of travelling pitot and inclined water manometer
  • MP124-005
Guide vane for increasing fan output pressure
  • MP124-006
Second fan with motor and inverter for Two Stage Axial Flow Fan Test Set
  • MP124-007
Exhaust silencer with stand
  • MP124-050
Computer Interface (computer not included)
 This includes MP124S and significant sensor(s) instead of analog measuring instrument(s), data acquisition
 (capture, display, graph and/or data export), additional software function for real-time data logging with
 computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone
 (iOS and Android)
SIMILAR PRODUCTS
