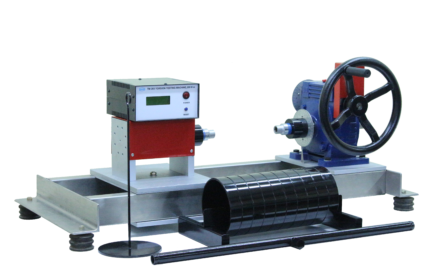

TM 203M TORSION TESTING MACHINE, 200 N-m.

Strength and properties of materials > Torsion testing machine

TM 203M TORSION TESTING MACHINE, 200 N-m.

Enquiry

Video

Download

This is an educational machine for an extensive range of torsion tests.

The machine consists of a torque applying unit, and a torque measuring unit sliding on two parallel stainless steel tubes. The torque applying unit is reduction gear with a hand wheel, and angular displacement measuring instruments. The torque measuring unit has a torque arm with a two-direction load cell. The specimen is held at each end by hexagonal drive sockets which fit on the input shaft from the gear box and the torsion shaft. The torsion shaft column can be slided on two parallel guides to accommodate specimen length. The equipment is a table top type with adjustable footings.

Instruction manual is also included.

  • Relation of torque and twist angle under elastic deformation.

  • Determination of modulus of rigidity and yield shear stress.

  • Determination of modulus of rupture.

  • Characteristic of materials under plastic deformation.

  • Comparation of twist angle for forward-reverse directions.

  • Relationship between twist angle, length and size of specimens.

  • Maximum torque
: 200 Nm
  • Drive shaft ends
: 3/4 in. square
  • Drive sockets
: 19 mm for hexagonal specimen
  • Maximum specimen length
: 350 mm.
  • Input shaft rotation:
-      Revolution counter : 5 digits
-      Circular scale : 360 × 1 degree graduation.
  • Torque digital display
: 0.1 N-m resolution.
  • Power supply
: 220V, 1 Ph, 50Hz. Other power supply is available on request.

  • Net (unpacked) Shipping Dimensions WxLxH:  65 x 170 x 50 cm
  • Net Weight:  Approx. 390 kg
  • TM203-002

Torque arm with weight hanger standard weights for torque calibration

  • TM203-005
Hexagonal head specimen
  • TM203-010
Angle digital display 0.1 degree resolution.
  • TM203-020
Chuck grips with a wrench for round specimen.
  • TM203-050
Computer Interface (computer not included)
                                      This includes TM203MS and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
TM203MSLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

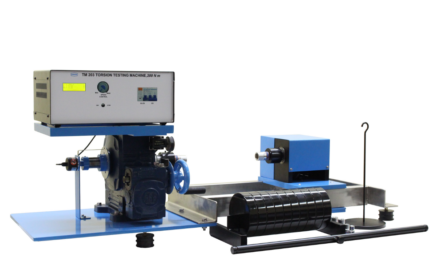

TM 203E TORSION TESTING MACHINE, 200 N-m., Computer Interface

TM 203E TORSION TESTING MACHINE, 200 N-m., Computer Interface

Enquiry

Video

Download

This is an educational machine for an extensive range of torsion tests.

The machine consists of a torque applying unit, and a torque measuring unit sliding on two parallel stainless steel tubes. The torque applying unit is a two stage reduction gear with a motor, and angular displacement measuring instruments. The torque measuring unit has a torque arm with a two direction load cell. The specimen is held at each end by hexagonal drive sockets which fit on the input shaft from the gear box and the torsion shaft. The motor is automatically stopped when the specimen is broken. The torsion shaft column can be slided on two parallel shafts to accommodate specimen length. The equipment is a table top type with adjustable footings.

Instruction manual is also included.

  • Relation of torque and twist angle under elastic deformation.

  • Determination of modulus of rigidity and yield shear stress.

  • Determination of modulus of rupture.

  • Characteristic of materials under plastic deformation.

  • Comparation of twist angle for forward-reverse directions.

  • Relationship between twist angle, length and size of specimens.

  • Maximum torque
: 200 Nm
  • Gear box

- Reduction ratio : 600:1
- Drive motor: 0.18 kW DC
- Rated torque: 370 Nm
- Maximum strain rate: 2.2 rpm
  • Drive shaft ends
: 3/4 in. square
  • Drive sockets
: 19 mm for hexagonal specimen
  • Maximum specimen length
: 350 mm
  • Angular displacement measurement


- Revolution counter: 5 digits, resettable
- Angular scale: 0-360° × 1 degree graduation
- Rotary encoder and an indicator: 0.1 degree resolution.
  • Torque digital display
: 0.1 N-m resolution
  • Computer interface unit

  • Software for data display and analysis by computer (separately supplied)

  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).

  • Power supply                                      : 220V, 1 Ph, 50Hz. Other power supply is available on request.

  • Net (unpacked) Shipping Dimensions WxLxH:  65 x 170 x 50 cm
  • Net Weight:  Approx. 390 kg
  • TM203-002
Torque arm with weight hanger and standard weights for torque calibration.
  • TM203-005
Hexagonal head specimen. Test section diameter approximately 12 mm diameter.
 -  Materials: Steel or brass (pack of 5)
  • TM203-020
2 Chuck grips with a wrench for round specimen.
  • TM203-060
Computer Control (computer not included)
                                      This includes TM 203-050 with the additional accessories for control function and additional software function for equipment controls by computer
SIMILAR PRODUCTS

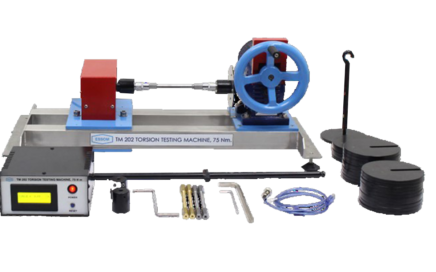

TM 202 TORSION TESTING MACHINE, 75 N-m.

TM 202 TORSION TESTING MACHINE, 75 N-m.

Enquiry

Video

Download

This is a bench top educational machine for torsion test of small specimens.

It consists of two parallel stainless steel tubes fixed together at both ends. At one end is a worm gear reducer where a torsion load is applied, and angular displacement measuring devices. At the other end is a torsion tubes with an arm attached to a load cell for measurement of torsion in both forward and reverse direction. This torsion shaft unit is slidable along the tubes to take up different length specimen. Both worm gear and torsion shaft have drive sockets for hexagonal head specimen. Round specimen requires special adapters (optional). Torque is applied manually.

The equipment is designed such that torsion shaft angular displacement, or parallel tubes and loading arm deflections are negligible under maximum load.  Angle of twist on the specimen is indicated by angular scales on the worm gear reducer shafts. A revolution counter is provided at the gear box to measure total input revolutions.

Instruction manual is also included.

  • Determination of modulus of rigidity and yield shear stress.

  • Determination of modulus of rupture in torsion.

  • Reversed torsion test to determine torsion hysteresis.

  • Capacity
:  75 Nm.
  • Drive shaft ends
:  1/2 in square
  • Drive sockets
:  1/2 in. whitworth for hexagonal specimen.
  • Maximum specimen length
:  300 mm
  • Input shaft rotation:

- Revolution counter:  5 digits
- Circular scale:  360 x 1 degree graduation
  • Torque digital display
:  0.1 N-m resolution
  • Power supply
:  220V, 1 Ph, 50Hz. Other power supply is available on request.



  • Net (unpacked) Shipping Dimensions WxLxH:

    40 x 140 x 45 cm (without gear motor)

  • Net (unpacked) Shipping Dimensions WxLxH:

    40 x 160 x 45 cm (without gear motor)

  • Net Weight:  Approx. 130 kg
  • TM202S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TM201- 001
Adapters for round specimen.
  • TM202- 002
Torque arm with weight hanger and standard weights for torque calibration.
  • TM202- 005
Hexagonal head specimen
  • TM201- 010
Angle digital display
  • TM202- 011
Torsiometer for accurate measurement of strain for 6 mm diameter specimen
  • TM202- 040A
Additional DC gear motor with speed control and synchronous belt drive system instead of manual operation.
  • Maximum specimen length can be extended on request.
  • Other specimen materials can be supplied on request.
  • TM202-050
Computer Interface (computer not included)
                                     This includes TM202S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TM202S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TM 201 TORSION TESTING MACHINE, 30 N-m.

TM 201 TORSION TESTING MACHINE, 30 N-m.

Enquiry

Download

This is a bench top educational machine for torsion test of small specimens.

It consists of two parallel stainless steel tubes fixed together at both ends. At one end is a worm gear reducer where a torsion load is applied, and angular displacement measuring devices. At the other end is a torsion tubes with an arm attached to a load cell for measurement of torsion in both forward and reverse direction. This torsion shaft unit is slidable along the tubes to take up different length specimen. Both worm gear and torsion shaft have drive sockets for hexagonal head specimen. Round specimen requires special adapters (optional). Torque is applied manually.

The equipment is designed such that torsion shaft angular displacement, or parallel tubes and loading arm deflections are negligible under maximum load.  Angle of twist on the specimen is indicated by angular scales on the worm gear reducer shafts. A revolution counter is provided at the gear box to measure total input revolutions.

Instruction manual is also included.

  • Determination of modulus of rigidity and yield shear stress.

  • Determination of modulus of rupture in torsion.

  • Reversed torsion test to determine torsion hysteresis.

  • Capacity
:  30 Nm.
  • Drive shaft ends
:  1/2 in square
  • Drive sockets
:  3/8 in. whitworth for hexagonal specimen.
  • Maximum specimen length
:  250 mm
  • Input shaft rotation:

- Revolution counter:  5 digits
- Circular scale:  360 x 1 degree graduation
  • Specimen angle of twist

- Circular scale:  360 x 1 degree reading
- Indirect reading by circular scale on input shaft:  1/60 degree reading
  • Torque digital display
:  0.1 N-m resolution.
  • Power supply
:  220V, 1 Ph, 50Hz. Other power supply is available on request.
  • Net (unpacked) Shipping Dimensions WxLxH:

    40 x 140 x 45 cm (without gear motor)

  • Net Weight:  Approx. 110 kg



  • Net (unpacked) Shipping Dimensions WxLxH:

    40 x 160 x 45 cm (without gear motor)

  • Net Weight:  Approx. 130 kg

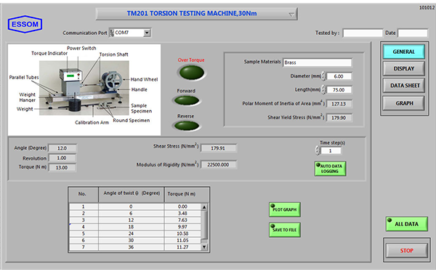

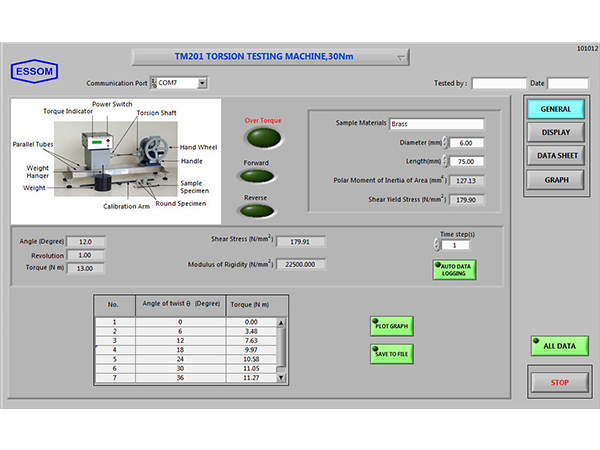

  • TM201S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TM201- 001
Adapters for round specimen.
  • TM201- 002
Torque arm with weight hanger and standard weights for torque calibration.
  • TM201- 005
Hexagonal head specimen
  • TM201- 010
Angle digital display
  • TM201- 011
Torsiometer for accurate measurement of strain for 6 mm diameter specimen
  • TM201- 040A
Additional DC gear motor with speed control and synchronous belt drive system instead of manual operation.
  • Maximum specimen length can be extended on request.
  • Other specimen materials can be supplied on request.
  • TM201-050
Computer Interface (computer not included)
                                     This includes TM201S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TM201S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
