TH 217 CROSS FLOW HEAT EXCHANGER, Water-to-Air

Thermodynamics > Heat exchangers

TH 217 CROSS FLOW HEAT EXCHANGER, Water-to-Air

Enquiry

Download

The apparatus is for studying heat transfer from hot water to cross flow air such as in automobile radiator.

    The unit consists of an air duct with outlet damper, an automotive radiator, an axial flow fan and a service module. The module provided hot water tank with transfer pump and control and measuring instruments.

    Instruction manual is also supplied.

  • Demonstration of heat transfer under parallel and counter flow.



  • Determination of heat transfer coefficient.



  • Effects of flow rate and temperature difference.

  • Heat exchanger:
- Type : Finned tube
- Material : Copper/Aluminum (Cu/Al)
: Heat transfer area approximately 30,000 cm2
  • Air duct
: 250 x 250 mm
  • Pump
- Power consumption : 180 W
- Maximum flow rate : Approx. 45 LPM
  • Fan
: Axial, adjustable speed
- Power consumption : Approx. 0.12 kW
- Maximum flow rate : Approx. 30 m3/min
  • Service module consisting of :
- Stainless steel hot water tank with level switch to prevent heater operation if level is too low.
- Hot water pump :  1
- Heater : 3000 W.
- Air flow rate : Portable anemometer
- Flow meters : Hot water.
- Sensors with digital display : Temperature for hot water inlet and outlet.
for air inlet and outlet
- Temperature control unit to limit temperature of hot water.
  • Power supply                                         : 220V 1Ph 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 55 x 120 x 80 cm.

Net weight  : Approx. 70 kg




  • TH217-050
Computer Interface (computer not included)
 This includes TH217S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • TH217-060

Computer Control (computer not included)

                                  This includes TH 217-050 with the additional accessories for control function and additional software function for equipment controls by computer



  • TH217S
Learning Software


to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

TH 527 REFRIGERATION TRAINER

TH 527 REFRIGERATION TRAINER

Enquiry

Video

Download

A table top refrigeration system is used to investigate energy balance at compressor, condenser and evaporator.

Both the condenser and evaporator used water cooled heat exchangers. Instruments are provided for measurement of temperatures, pressures and cooling water flow rates. The system requires outside water supply.

Instruction manual is also included.

  • Familiarization with refrigeration cycle and components.



  • p-h diagram.



  • Energy balances at evaporator and condenser.



  • Overall heat transfer coefficients for evaporator and condenser.



  • Effects of load variation.

  • Compressor
: 0.37 kW
  • Refrigerant
: R134 a
  • Condenser
: Co-axial coil heat exchanger
  • Evaporator
: Co-axial coil heat exchanger
  • Measuring instruments:

- Pressure gauges: Compressor inlet and outlet
- Water rotameters: 2x 1-7 Lpm (approx.) for heat exchangers
- Sensors with digital display: Temperature for compressor inlet and outlet, condenser outlet, evaporator inlet,


condenser and evaporator, cooling water outlets and cooling water inlet


  • Power supply
:              220V 1Ph 50Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 75 x 90 x 100 cm

Net weight  : 60 kg

  • TH527S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH527-001
Sight glass of refrigerant at condenser exit
  • TH527-014
Cooling unit
 - Capacity : 0.75 RT
  • TH527-030
Watt meter for compressor input power
  • TH527-040
Concentric tube heat exchanger instead of co-axial coil heat exchanger
  • TH527S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 525 AIR – TO – WATER HEAT PUMP

TH 525 AIR - TO – WATER HEAT PUMP

Enquiry

Video

Download

A table top air conditioning system is used to demonstrate how heat is transferred from air to water.

A water cooled heat exchanger is used as a condenser while the liquid refrigerant is evaporated in an air cooled evaporator. Instruments are provided for measurement of temperatures, pressures, and water flow rate. The system requires outside water supply.

Instruction manual is also included.

  • Design and operation of air to water heat pump.



  • P-h diagram.



  • Energy balances.



  • Coefficient of performance.



  • Overall heat transfer coefficients for evaporator and condenser.



  • Effects of loads variation.

  • Compressor
:   0.37 W
  • Refrigerant
:   R134a
  • Evaporator
:   Air cooled
  • Condenser
:   Co-axial coil heat exchanger
  • Measuring instruments:
- Pressure gauges : Compressor inlet and outlet.
- Water rotameter : 1-7 Lpm (approx.)
- Sensors with digital display : Temperatures for compressor inlet and outlet, condenser outlet, evaporator inlet, condenser cooling water inlet and outlet, and air -side of evaporator inlet and outlet.
  • Accessory
: Pressure switch
  • Power supply
: 220V 1Ph 50Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 80 x 95 x 75 cm

Net weight  : 60 kg

  • TH525S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH525-001
Sight glass of refrigerant at condenser exit
  • TH525-014
Cooling unit



- Capacity : 0.75 RT
  • TH525-030
Watt meter for compressor input power
  • TH525-040
Concentric tube heat exchanger instead of co-axial coil heat exchanger
  • TH525S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 522 ICE MAKER TEST RIG

TH 522 ICE MAKER TEST RIG

Enquiry

Video

Download

This table top refrigeration system is intended for studying ice making process.

The unit comprises a typical refrigeration system whereby a small ice maker is used for evaporator. Instruments are provided for measurement of pressures and temperatures.

Instruction manual is also included.

  • Familiarization with ice making system and components.



  • P-h diagram.



  • Coefficient of performance.

  • Ice making unit
:   0.4 kg/h
  • Refrigerant
:   R134A
  • Measuring instruments:
- Pressure gauges : Compressor inlet and outlet
- Sensors with digital display : Temperatures for compressor inlet and outlet, evaporator inlet, condenser outlet and ice/water in the ice tank
  • Accessory
: Pressure switch
  • Power supply
: 220 V, 1 Ph, 50Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 65 x 90 x 65 cm

Net weight  : 50 kg

  • TH522S
Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH522-001
Sight glass of refrigerant at condenser exit
  • TH522-030
Watt meter for compressor input power.
  • TH522S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 520 BASIC REFRIGERATION SYSTEM

TH 520 BASIC REFRIGERATION SYSTEM

Enquiry

Download

This unit is used for demonstration of a normal household refrigerator operation. Individual components are clearly shown. Temperatures and pressures at various points are indicated. Sight glasses are provided to indicate the state of the refrigerant.

Instruction manual is also included.

  • Study of layout and process diagram.



  • Observation of pressures and temperatures.



  • Using a p-h state diagram.

  • Compressor
- Type : Hermetic
- Size : Approx. 70 W
  • Condenser
: Tube with wire grid
  • Evaporator
: Circular chamber
  • Refrigerant
: R134a
  • Sight glasses
: 3 at compressor exit, condenser exit and evaporator exit
  • Measuring instruments
- Pressure gauges : Compressor inlet and outlet
- Sensors with digital display : Temperature for compressor inlet and outlet, condenser outlet, after expansion valve and in refrigerator
  • Power supply
: 220 V, 1 Ph, 50Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 50 x 95 x 35 cm

Net weight  : Approx. 48 kg

  • TH520S
Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH520S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 518 RECIRCULATING AIR CONDITIONING UNIT, With Climatic Chamber

TH 518 RECIRCULATING AIR CONDITIONING UNIT, With Climatic Chamber

Enquiry

Download

This is a recirculating air conditioning unit with transparent windows and a climatic chamber.

Inlet air is cooled by a refrigeration system, heated by a preheater, and added moisture or latent heat by a humidifier before entering the climatic chamber for demonstration of climate control. The air in the climatic chamber is further heated by a reheater and a humidifier before leaving. A fan installed after the preheater is used to circulate the air in the duct. Part of the air leaving the climatic chamber is vented and the remaining is recirculated and mixed with fresh air entering the inlet duct. The amount of air recirculation is controlled by ventilation dampers. Steam generator, compressor and condenser are installed underneath the duct.

Measuring instruments are provided for air flow rate, and temperature and humidity at various stages. Additional instruments are provided for measurement of refrigerant flow rate, temperature and pressure as well as power for the compressor and heat sources.

The unit is on steel frame on wheels.

Instruction manual is also included.

  • Familiarization with recirculating air conditioning system and components.



  • Determination of preheating, cooling and dehumidification, humidification, and reheating processes.



  • Energy balance in the preheater, evaporator, and reheater.



  • Demonstration of preheating, cooling and dehumidification, humidification, reheating, and mixing processes on psychrometric chart.



  • Demonstration of refrigeration cycle on Pressure-Enthalpy diagram of the refrigerant R134a.



  • Determination of recirculating and mixing process of moist air.



  • Effects of climatic chamber heat loads.

  • Air duct
: 250 x 250 mm, stainless steel sheet
  • Climatic chamber
: Approx. 180 L
  • Fan
: Adjustable speed
- Maximum airflow rate: Approx. 750 m3/h
  • Humidifier
: 3000 W, adjustable.
  • Preheater
: 1200W, adjustable
  • Reheater
: 600W, adjustable
  • Heater controller
: 1
  • Evaporator
: 250 x 250 mm
  • Compressor
: Approx. 0.55 kW.
  • Condenser
: with fan
  • Refrigerant
: R134a
  • Temperature controller
: 1
  • Measuring instruments

- Sensors with digital display: Air flow rate, velocity sensor
 : Temperatures at duct inlet, evaporator inlet, humidifier inlet, humidifier outlet ,
 reheater inlet and outlet, compressor inlet and outlet and condenser outlet.
 : Power measurement for compressor, humiditier, preheater and reheater
- Portable temperature/humidity meter: 0-50°C, 10-90% RH, at duct inlet, preheater inlet and climatic chamber outlet
- Refrigerant rotameter
- Pressure gauges : Compressor inlet and outlet
  • Power supply
: 380 V 3 Ph 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 70 x 270 x 185 cm

Net weight  : 320 kg

  • TH518S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH516-001

Humidity digital display instead of portable temperature/humidity meter

  • TH518-050

Computer Interface (computer not included)

                     This includes TH518S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • TH516S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 516 LABORATORY AIR CONDITIONING SYSTEM

TH 516 LABORATORY AIR CONDITIONING SYSTEM

Enquiry

Download

This is an open circuit air conditioning system with transparent window.

The unit consists of a fan, a compressor and condenser, a humidifier, a preheater, a cooling unit, a reheater, and measuring instruments.

Variable speed inlet fan deliver air to the duct. A steam humidifier injects moisture to the duct inlet. The humidified air passes through a preheater, a cooling unit, and a reheater before exit to the atmosphere. Steam generator, compressor and condenser are underneath the duct.

Instruments are provided for measurement of temperatures, pressures, humidity, power, air flow rate, and refrigerant flow rate.

The unit is on a steel frame on wheels.

Instruction manual is also included.

  • Familiarization with an open air conditioning system and components.



  • Determination of humidification, preheating, cooling and dehumidification, and reheating processes.



  • Energy balance in the preheater, evaporator, and reheater.



  • Demonstration of humidification, preheating, cooling and dehumidification, and reheating processes on psychrometric chart.



  • Demonstration of refrigeration cycle on Pressure-Enthalpy diagram of the refrigerant R134a.

  • Air duct
: 250 x 250 mm, stainless steel sheet
  • Fan with speed controller
- Maximum airflow rate : 750 m3/h
  • Humidifier
: 1500 W, adjustable
  • Preheater
: 1500 W, adjustable
  • Reheater
: 1500 W, adjustable
  • Heater controller
: 1
  • Evaporator
: 250 x 250 mm
  • Compressor
: 0.55 kW
  • Condenser
: with fan
  • Refrigerant
: R134a
  • Temperature controller
: 1
  • Measuring instruments
- Sensors with digital display : Air flow rate, velocity sensor
: Temperature at duct inlet, humidifier, preheater inlet and outlet, evaporator outlet,
reheater outlet, compressor inlet and outlet and condenser outlet.
: Power for compressor, humidifier, preheater and reheater
- Refrigerant rotameter
- Portable temperature / humidity meter : 0-50oC, 10-90% RH
- Pressure gauges : Compressor inlet and outlet
  • Power supply
: 380 V, 3 Ph, 50Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 70 x 195 x 135 cm

Net weight  : Approx. 200 kg

  • TH516S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH516-001
Humidity digital display instead of portable temperature/humidity meter.

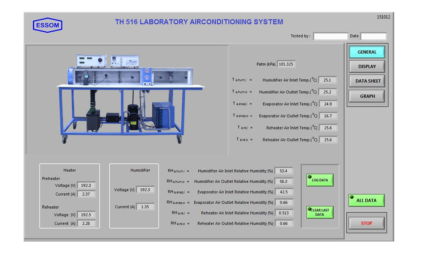

  • TH516-050
Computer Interface (computer not included)
 This includes TH516S and significant sensor(s) instead of analog measuring instrument(s),
 data acquisition (capture, display, graph and/or data export),


additional software function for real-time data logging with computer interface unit and

 WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • TH516S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 512 CAR AIR CONDITIONING SYSTEM

TH 512 CAR AIR CONDITIONING SYSTEM

Enquiry

Video

Download

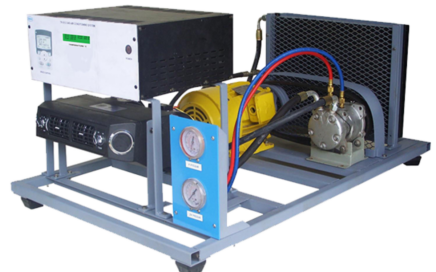

The trainer unit contains a belt-driven compressor, an air-cooled condenser and an evaporator with cold air outlet. All components used in the trainer are normal automotive parts. A motor is used to drive to the compressor by a belt and step pulleys.

Instruction manual is also included.

  • Study of layout and process diagram.

  • Recognition of typical faults and repair on an air conditioner.



  • Simulation of system faults.



  • Thermodynamic cyclic process.



  • Observation of pressures and temperatures.

  • Compressor, automotive type
: 1 with magnetic clutch
  • Condenser
: Air cooled with fan
  • Refrigerant
: R-134a
  • Drive motor
: 3.7 kW
  • Speed adjustment
: 3 step pulleys
  • Filter / dryer
: 1
  • Evaporator
: Automotive type
  • Measuring instruments

- Pressure gauges : Compressor inlet and outlet
- Sensors with digital display: Temperature for compressor inlet and outlet, condenser outlet, expansion valve outlet, and air–side at evaporator outlet.
  • Secondary power supply
: 12 VDC
  • Main power supply
: 220 V, 1 Ph, 50Hz. Other power supplies available on request.

Net (unpacked) shipping dimensions WxLxH  : 70 x 112 x 55 cm

Net weight  : Approx. 78 kg

  • TH512S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH512-001
Sight glasses (3 positions) for observation of state of refrigerant
  • TH512-002
Variable area flow meter for expansion valve inlet
  • TH512-003
Inverter instead of step pulleys
  • TH510-010
Anemometer
  • TH512-020
Fault simulation
 8 faults (Blocked expansion valve, blocked filter drier, compressor fault, poor condensing, poor evaporating, blocked hoses or connection between each equipment, A/C system not cooling, not optimum refrigerant charge)
  • TH512S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 510 SPLIT TYPE AIR CONDITIONER SYSTEM

TH 510 SPLIT TYPE AIR CONDITIONER SYSTEM

Enquiry

Video

Download

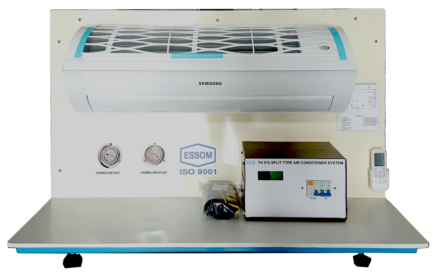

This unit is used for the demonstration of split type room air conditioning operation. Individual components are clearly shown. Temperatures and pressures at various points are indicated.

Instruction manual is also included.

  • Study of layout and process diagram
  • Observation of pressures and temperatures
  • Remote control operation
  • Cooling capacity
: Approx. 2.5kW or 9000 BTU
  • Compressor type
: Rotary
  • Refrigerant
: R32
  • Measuring instruments

- Pressure gage: Compressor inlet and outlet
- Sensors with digital display: Temperatures for compressor inlet, outlet, condenser outlet, expansion valve outlet and
air -side of evaporator inlet and outlet

  • Remote control

  • Power supply
: 220 V, 1 Ph, 50Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 76 x 123 x 114 cm

Net weight  : Approx. 75 kg

  • TH510S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • TH510-001
Sight glasses for observation of state of refrigerant
  • TH510-010
Anemometer 0-10 m/s
  • TH510-011
Climate chamber



  • TH510S
Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

TH 501 TEMPERATURE MEASURING APPARATUS

TH 501 TEMPERATURE MEASURING APPARATUS

Enquiry

Video

Download

This bench top unit is used for studying temperature measurement of several commonly used devices as well as understanding related principles.

The unit consists of four types of display and five different other temperature measuring devices.

Heat sources and means for calibration and accuracy comparison of the different devices is also provided.

Instruction manual is also included.

  • Understanding the physical principles of each device.



  • Understanding calibration techniques.



  • Understanding lead and conduction errors.



  • Dynamic response.



  • Errors associated with incorrect applications.



  • Air humidity.

  • Temperature digital display:
- Platinum resistance thermometer, range-49.9°C to 199.9°C x 0.1°C resolution
- Thermistor, 0-100°C x 0.1°C resolution
- Thermocouple type K, - 75 to +120°C x 1°C resolution
- Thermocouple type K, -75 to +120oC with millivoltmeter
  • General industrial temperature measuring devices :
- Bimetallic thermometer, 0-200°C
- Vapor pressure thermometer, 20-150°C
- Liquid in glass thermometer, 0-150°C
- Self-adhesive surface temperature indicator, various strips with range up to 250°C
- Wet and dry bulb thermometers
  • Heat source:
- Hot plate with thermostat and stainless steel pot
  • Power supply: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.

Net (unpacked) shipping dimensions WxLxH  : 46 x 52 x 94 cm

Net weight  : Approx. 20 kg

  • TH501-001
Hot air blower and temperature sensors stand

  • TH413S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS
