CF 210 TRAY DRYER

Chemical engineering and food technology > Food technology

CF 210 TRAY DRYER

Enquiry

Video

Download

This is a basic unit for studying of tray drying by hot air.

The unit consists of a rectangular duct.  Air is drawn into the duct by an axial flow fan with guide vane, wire mesh screen and flow strengthener at the front end of the duct.  Fan speed is adjustable.  A bank of electric heaters behind the fan raises air temperature. Behind the heater is a drying compartment with transparent access door. A rack of trays is suspended from a balance above the duct.  Temperatures and humidity before and after the drying trays are measured.

Instruction manual is also included.

  • Tray drier drying curves.

  • Effect of particle size.

  • Effect of air velocity.

  • Effect of air temperature.

  • Drying section
:  350 x 350 mm
  • Fan

- Capacity:  ……..kW
  • Heater capacity
:  3 kw, variable
  • Trays
:  4
  • Tray capacity
:  3 kg of solids (approx.)
  • Measuring instruments

- Sampling weigh:  Digital balance
- Air velocity:  Anemometer
- Temperature-Humidity measurement:  Portable thermo-hygrometer
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 60 x 250 x 120 cm
  • Net Weight:  Approx. 240 kg
  • CF210-001
Heater power          : Watt or voltage and current digital display for heater power measurement.
  • CF210-050
Computer Interface (computer not included)
                                      This includes CF210S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • CF210S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 200 CYCLONE SEPARATOR

Enquiry

Video

Download

The equipment is for studying the principle of two phase flow using a centrifugal blower.

Powder material is fed by an agitator and a variable speed screw feeder to a Venturi tube. The material is carried by air in the tube to a cyclone where the velocity is reduced and the material is separated and dropped to the bottom.

Instruction manual is also included.

  • Velocity profile of air in the transfer tube using a travelling Pitot.

  • Observation of material separation in the cyclone.

  • Comparison of theoretical expression with test results for pressure loss and material collection efficiency at each air velocity.

  • Blower :

- Type:  Centrifugal blower
- Maximum air flow rate:  Over 6 m3/min
  • Speed control
:  Inverters
  • Cyclone
:  Clear acrylic and discharge tube
  • Accessories
:  Cyclone dust box
 :  Filter bag
 :  Stop watch
 :  Platform balance
 :  Beaker
  • Measuring instruments

- Air flow:  Travelling Pitot with water manometer
- Pressure:  Water manometer for measurement of pressure difference in the transfer tube and the cyclone
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: Approx, 75 x 180 x 100 cm
  • Net Weight:  Approx. 180 kg








  • CF200S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 110 FILTER PRESS APPARATUS

Enquiry

Download

Filter press is used for clarifying intermediate products. Such as suspension water. A suspension water is prepared in a feed tank. A stirrer ensures that the solid remains suspended and does not settle. The pump delivers the suspension water into the individual separating chambers of the filter press. The filtrate passes through the filter cloth and flows into the filtrate tank.

The flow rate through the filter press is controlled by a pump. The pressure occurring during filtration is indicated on a pressure gauge.

The unit is painted steel frame with adjustable footings.

  • Learning the fundamental principle and method of operation of a plate and frame filter press

  • Production of a suspension

  • Fundamentals of cake filtration (Darcy’s equation)

  • Variation in time of filtrate quantity and solid concentration in filtrate

  • Feed tank
:  Clear acrylic tank with stirrer.
  • Filter press
:  1 set.
  • Feed pump
:  1 ea.
  • Filtrate tank
:  Clear acrylic tank with drain point.
  • Measuring instruments
- Pressure :  Pressure gauge at filter inlet.
  • Power supply
:  220V 1Ph 50Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 60 x 120 x 120 cm.
  • Net Weight:  Approx. 90 kg
  • CF110-001
Filter paper
  • CF110-002
Portable turbidity meter
  • CF110-003
Digital balance.
  • CF110-004
Watch glass
  • CF110-005
Lockable wheel instead of screw adjustable footing
  • Larger size is available on request.

  • Other optional equipment, please contact manufacturer ([email protected])

  • CF110S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 503 GAS ABSORPTION COLUMN

Enquiry

Video

Download

This equipment is for demonstration of gas absorption principles.

The unit consists of two packed absorption columns, one on top of another. The two columns are held together by steel frame and are packed by Raschig glass rings. A centrifugal pump draws a liquid from a feed tank underneath the column and delivers to the top of the column where it falls down through the packing and to the storage tank. Flow rate is indicated on a variable area flow meter.

A gas to be absorbed such as carbon dioxide is drawn from a pressure cylinder through a flow meter and is mixed with an air stream supplied through an air blower. Air flow rate is measured by a flow meter. The mixed gas enters the column at the bottom of the column and rises up to the top.

Pressure tapping points and gas sampling points are provided at the bottom, middle and top of the column to measure pressure drops by manometer and differential pressure gauge. Carbon dioxide content is determined by a Hempel apparatus (optional). All instruments are mounted on a panel.

Instruction manual is also included.

  • Principles of liquid-gas absorption in a packed column.

  • Methods of gas and liquid analysis.

  • Determination of mass transfer coefficient.

  • Mass balancing over the packed absorption column.

  • Hydrodynamic characteristics of a packed column.

  • Pack column
:  2, connected in series
- Material:  Borosilicate glass
- Size:  75 mm diameter x 0.7 m height
  • Packing

- Material:  Raschig rings, plastics
- Volume:  6 L
  • Feed tank
:  50 L
  • Pump
:  1
  • Air blower
:  Rotary type
  • Measuring instruments

- Air flow rate :  Flow meter
- Gas flow rate :  Flow meter
- Solvent flow rate :  Flow meter
- Pressure drop:  Water manometer
 :  Differential pressure gauge
  • Carbon dioxide
:  1 tank with pressure regulator (Thailand market only)
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 100x130x160 cm
  • Net Weight:  Approx. 170 kg
  • CF503-001
Additional column with different packing material to replace the standard column for study the packing characteristics.
  • CF503-002
Titration glassware for liquid analysis.
  • CF503-003
Vent piping to outside laboratory.
  • CF503-004
Separate drain tank for effluent treatment.
  • CF503-005
Hempel gas analyzer
  • CF503-021
Portable pH meter (high temperature resistance)



  • CF503S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HM 511 CONTINUOUS DISTILLATION

Enquiry

Video

Download

This equipment demonstrates a process for separation of a mixture (one soluble in another) of two liquids of different boiling points.

The unit consists of reboiler, two distillation columns, condenser, reflux tank, top product tank, feed tanks with feed pump, feed preheater, bottom product tanks, measuring instruments, and other accessories.

An initial feed is added to the reboiler where the vapor with higher concentration of the lower boiling point component rises in the distillation column. The vapor leaves the top and is condensed in the condenser and collected in the reflux tank. Part of the condensate in the reflex tank is fed back to the top of the column where heat exchange is taken place with the rising vapor. This results in the vapor phase being richer in the lower boiling point component, and the liquid phase being richer in the higher boiling point component. The liquid phase moves down to the reboiler.

The feed is pumped from feed tanks, preheated in a preheater, before delivery to the distillation column. The feed is partially evaporated in the column on its way to the bottom where it is heated to boiling.

The hot mixture in the reboiler is rich in higher boiling point components is used to preheat the feed and collected in the bottom product tanks.

Two columns, sieve plate column and packed column with Rasching rings, can be interchanged simply by valve control. Lagging is provided for reboiler, sieve column, condenser, and preheater.

The unit is installed on a stainless steel frame.

Instruction manual is also included.

  • Comparison of sieve column and packed column performance in continuous operation.

  • Comparison with batch distillation.

  • Column efficiency vs boil up rate at total reflux.

  • Top product composition vs time at constant reflux ratio.

  • Manual control of reflux ratio.

  • Plate to plate temperature profiles.

  • Mass balance across the system.

  • Plate column
:  Stainless steel with a view port
 :  8 sieve plates, with a sampling point
  • Packed column
:  Borosilicate glass with Rachig rings
  • Reboiler
:  1
  • Heater
:  Adjustable
  • Maximum temperature
:  130oC
  •  Condenser
:  Shell and tube, stainless steel, water cooled
  • Preheater
:  Coiled in shell, stainless steel
  • Feed pump
:  400 mL/min
  • Vacuum pump
:  1
  • Reagents
:  Methanol/water solution
  • Tanks

- Reflux tank:  1, Stainless steel
- Top product tank:  1, Stainless steel
- Feed tanks:  2, Stainless steel
- Bottom products tanks  :  1, Stainless steel
  • Measuring instruments

- Pressure drop across column:  Water manometer
- Cooling water flow rate:  Flow meter
- Feed flow rate:  Flow meter (Alcohol resistance)
- Reflux ratio  :  0 - 100%
- System pressure:  Pressure / vacuum gauge
- Sensors with digital display:  Temperatures
 :   Watt meter
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 95 x 60 x 250 cm
  • Net Weight:  Approx. 80 kg
  • CF511-011A
Borosilicate glass with stainless steel sieve plates instead of stainless-steel sieve plate column.
  • CF511S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

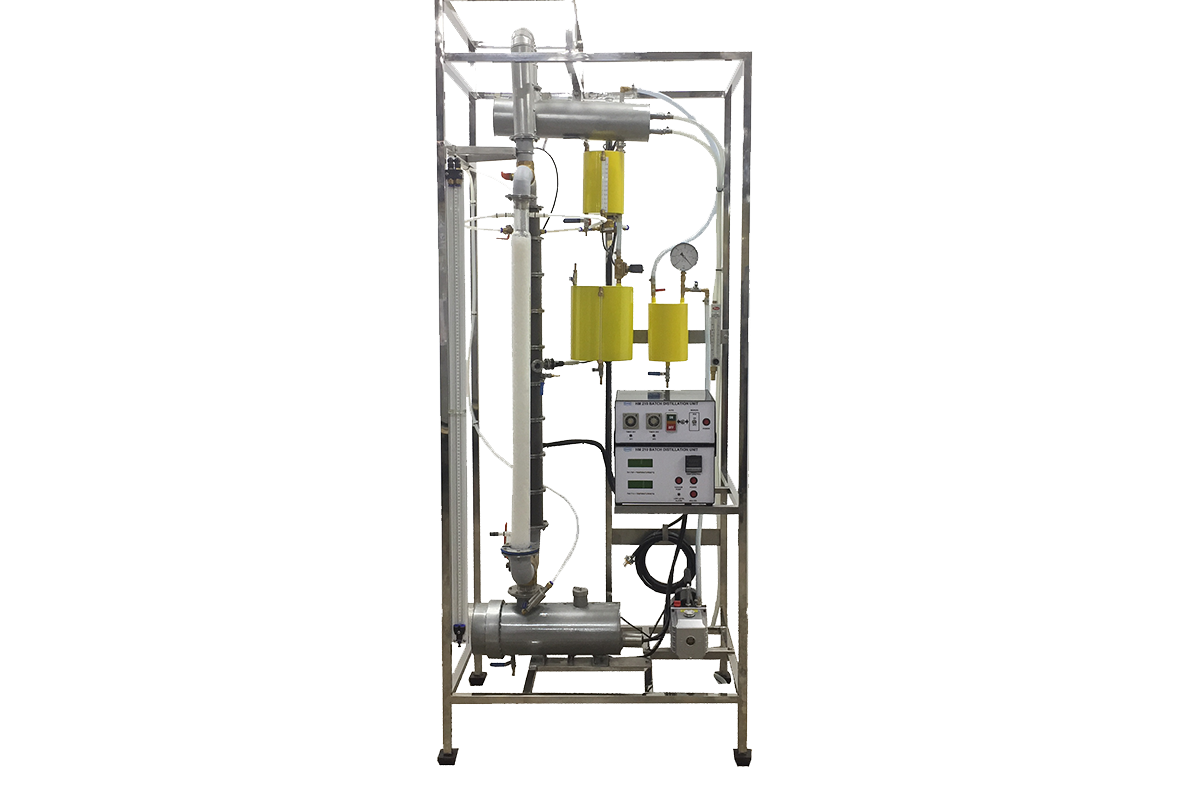

CF 510 BATCH DISTILLATION UNIT

Enquiry

Video

Download

This equipment demonstrates a process for separation of a mixture (one soluble in another) of two liquids of different boiling points.

The unit consists of reboiler, two distillation columns, condenser, reflux tank, top product tank, vacuum pump, measuring instruments, and other accessories.

The liquid mixture is added to the reboiler where the mixed vapor with higher concentration of the lower boiling point component rises in the distillation column. The vapor leaves the top and is condensed in the condenser and the reflux tank. Part of the condensate in the reflux tank is fed back to the top of the column where heat exchange is taken place with the rising vapor. This results in vapor phase being richer in lower boiling point component, and the liquid phase being richer in higher boiling point component. The liquid phase moves down to the reboiler. Thus, the mixture in the reboiler is richer in the higher boiling point component with time.

Two columns, sieve plate column and packed column with Rasching rings, can be interchanged simply by valve control. Lagging is provided for reboiler, sieve plate column, and condenser.

The unit is installed on a stainless steel frame.

Instruction manual is also included.

  • Comparison of plate column and packed column performance.

  • Pressure drop across column vs boil up rate.

  • Column efficiency vs boil up rate at total reflux.

  • Top product composition vs time at constant reflux ratio.

  • Manual control of reflux ratio.

  • Plate to plate temperature profiles.

  • Mass balance across the system.

  • Plate column
:  Stainless steel with a view port
 :  8 sieve plates
  • Packed column
:  Borosilicate glass with Raschig rings
  • Reboiler

  • Heater
:  Adjustable
  • Maximum temperature
:  130oC
  • Condenser
:  Shell and tube, stainless steel, water cooled
  • Reflux tank
:  Stainless steel
  • Top product tank
:  Stainless steel
  • Reagents
:  Water/Methanol solution
  • Vacuum pump
:  1
  • Measuring instrument

- Pressure drop across column:  Water manometer
- Cooling water flow rate:  Flow meter
- Reflux ratio:  0 - 100%
- System pressure:  Pressure/vacuum gauge
- Sensors with digital display:  Temperatures
 :  Watt meter
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request
  • Net (unassembled) Shipping Dimensions WxLxH: 95 x 60 x 250 cm.
  • Net Weight:  Approx. 80 kg
  • CF510-011A    Borosilicate glass with stainless steel sieve plates instead of stainless steel sieve plate column.
  • Other optional equipment, please contact manufacturer ([email protected])

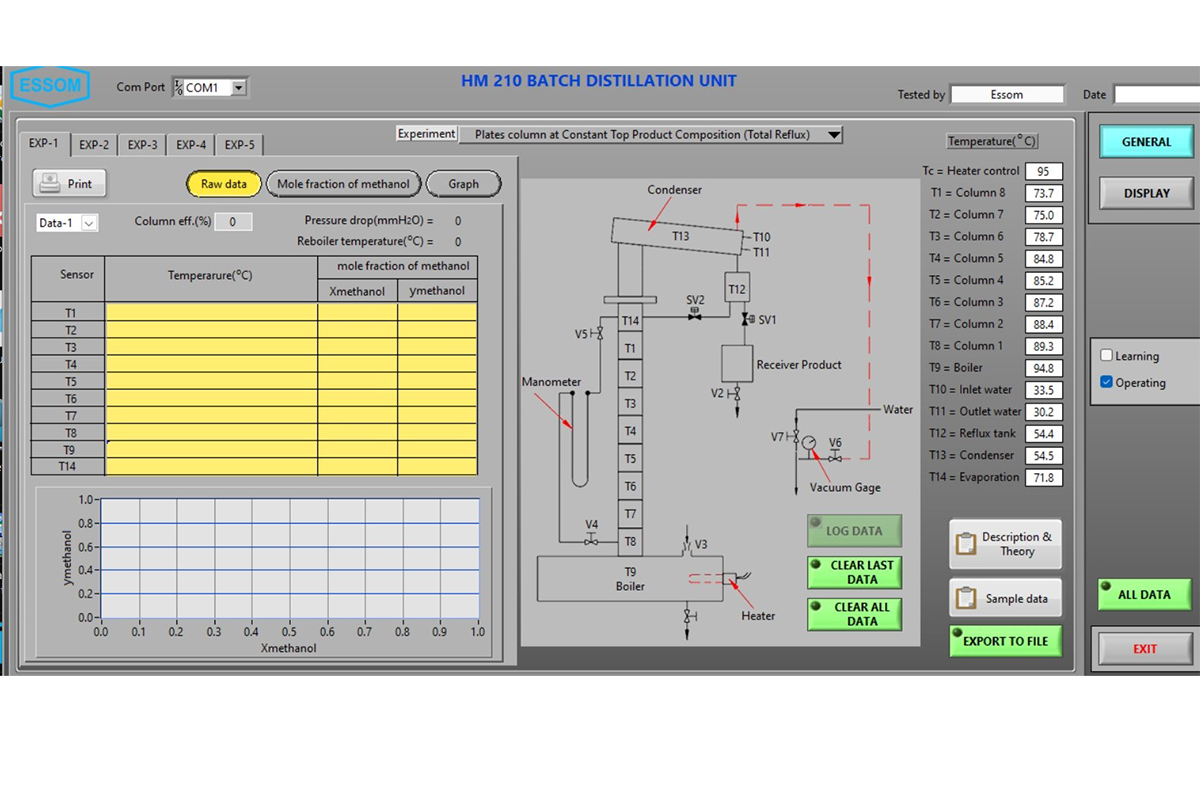

  • CF510S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 502 FLUIDIZATION AND HEAT TRANSFER

CF 502 FLUIDIZATION AND HEAT TRANSFER

Enquiry

Video

Download

This bench top equipment is for studying the behavior of a fluidized bed and heat transfer coefficient of a hot surface in a fluidized bed.

The unit consists of a glass cylinder with a bottom chamber and a top assembly. The bottom chamber has as a built-in air distributor. The distributor can be replaced by a locally designed one for students and other investigations. The top assembly consists of an air filter and a heating element, temperature probes and a pressure probe. The glass cylinder assembly is attached to a panel through the top assembly and can be easily removed and installed.

The glass cylinder is partially filled with granular bed material. Air is supplied to the bottom chamber. The air fluidizes the bed material and escapes to the atmosphere through the top filter.

A small air compressor is provided. The air flow rate is measured by a flow meter. A heating element is provided in the glass cylinder. Temperature probes are provided for measurement of heating element surface, fluidized bed and air inlet to the bottom chamber. A water manometer measures pressure drop in the fluidized bed. The heating element, temperature probes and pressure probe can move up and down at any position in the glass cylinder.

Safety features include overheating and overpressure. A second temperature probe on the heating element limits heating element maximum temperature by a controller. A pressure relief valve is provided at inlet airline to limit maximum pressure in the glass cylinder due to blocked filter.

Instruction manual is also included.

  • To study the behavior of a fluidized bed for various types of granular materials.

  • To study changes in pressure drop vs air flow for various granular materials, both pack and fluidized beds.

  • To study the effect of superficial velocity, depth of immersion, and granular size on the surface heat transfer coefficient by a hot surface in a fluidized bed.

  • To investigate the effect of distributor design on the bed behavior.

  • To demonstrate separation by particle size and density.

  • Glass cylinder
:  Borosilicate glass
  • Air distributor
:  Porous materials
  • Heater
:  180 W with power control
  • Heating surface temperature control

  • Measuring instruments

-       Pressure drop         :  Water manometer
-       Air flow rate:  Flow meter
-      Sensors with digital display:  Temperatures for fluidized bed and inlet air
 :  Voltage and current
  • Granular bed material
:  Aluminium oxide
-  Size     :  4 sizes
-  Quantity:  1 L for each size
  • Accessory
:  Pressure relief valve
  • Power supply
:  220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 75 x 50 x 90 cm
  • Net Weight:  Approx. 40 kg
  • CF502-001
Air compressor
  • CF502-010A

Air flow digital display instead of rotameter.

  • CF502-011A
Differential pressure digital display instead of water manometer.
  • CF502S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 501 FIXED AND FLUIDIZED BED APPARATUS

CF 501 FIXED AND FLUIDIZED BED APPARATUS

Enquiry

Video

Download

This bench top apparatus is designed for a study of fluid bubbling phenomena in fixed and fluidized beds of solid particles.

The apparatus consists of a water and an air system. Each has a fluidized column and a pump. Air or water is supplied to the column via bottom porous plate and escape to the top. Control valve varies the rate of flow. Two sizes of bed materials are supplied.   Measurement of flow rate is by flow meter and pressure drop is by manometer.

Instruction manual is also included.

  • Visualization of fluidization

  • Pressure drop through packed and fluidized beds for both water and air systems

  • Observation of difference between particulate and aggregative fluidization

  • Verification of Carman - Kozeny equation.

  • Fluidized column
:  Glass tube with 1 mm scale
 :  50 mm diameter x 550 mm long
  • Bed plate
:  Wire mesh
  • Manometer
:  For air and water
  • Flow meter
:  For air and water
  • Water pump
:  1
  • Air compressor
:  1
  • Bed material
:  Alumina oxides or washed sand, two sizes
  • Power supply
:  220 V, 1 Ph, 50 Hz.  Other power supply is available on request.





  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 50 x 80 cm
  • Net Weight:  Approx. 35 kg
  • CF501S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 400 KINETIC REACTORS IN SERIES

CF 400 KINETIC REACTORS IN SERIES

Enquiry

Video

Download

This bench top unit is designed for a study of mixed multi stage process dynamics.

The unit consists of three reactor vessels connected in series. Each reactor has a variable speed agitator. Two reagent vessels, each with a reagent pump and a flow meter, feed the reagents to the first reactor. Piping connection allows the reagents to be fed directly to any reactor. A drain tank under each reactor and a dead time coil are provided.

Conductivity probes are fitted to each reactor for monitoring the process. Instruments are provided for indicating reagent flow rate and conductivity.

Instruction manual is also included.

  • Study of dynamic process for stirred tank reactors in series.

  • Influence of flow rate.

  • Study of chemical reaction in three tank system.

  • Study of time constant using a dead-time coil.

  • Reagent tanks
:  2
  • Reactor tanks
:  3
  • Drain tanks
:  3
  • Reagent pumps
:  2
  • Variable speed agitator
:  3, with speed control units
  • Measuring instruments


- Flow meters

:  2 for each inlet feed reagent
- Sensors with digital display:  Conductivities for each reactor
 :  Speeds for each agitator.
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.




  • Net (unassembled) Shipping Dimensions WxLxH: 120 x 60 x 90 cm
  • Net Weight:  Approx. 58 kg
  • CF400-050
Computer Interface (computer not included)
                                      This includes CF400S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • CF400S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

CF 120 DEEP BED FILTER COLUMN

Enquiry

Video

Download

The deep bed filter is a demonstration unit for treatment of water with suspended particles by sand filtration.

The unit consists of a filtration column is fitted with vertical row of pressure tapping points on one side and similar sampling points on the other side. Both ends of the column are closed with flanges for liquid inlet and outlet. A pump delivers raw water from the raw water tank to the top of the column. Suspended particles are trapped in the sand filter as water flow down through the column to the bottom via filter. The treated water is collected from the bottom in a treated water tank. Hoses connect pressure from the tappings along the side of the column to a manometer bank. Samples of raw water is collected from the sampling points on the side of the column. A manometer bank is provided for measurement of pressure along the column.

Overtime more particles are deposited in the filter which increases the pressure drop across the filter and flow rate decreases. Backwashing is required using treated or clean water and pressure drop is reduced again. Required pipings are provided.

The filter unit is on a steel frame.

Instruction manual is also included.

  • Understanding the principles of depth filtration by sand filter.

  • Measurement of filter differential pressure vs flow rate.

  • Observation of pressure drop with time.

  • Measurement of suspended particles at different height.

  • Demonstration of back washing.

  • Column
: 110 mm OD and 100 mm ID acrylic tube x 1400 mm high.
  • Pressure taps
: 20 points
  • Sampling taps
: 30 points
  • Pumps
: 0.37 kW
  • Sump tanks
: 2
  • Flow meter
: 2
  • Power supply
: 220 V, 1 Ph, 50Hz. Other power supply is available on request.







  • Net (unassembled) Shipping Dimensions WxLxH: 160 x 270 x 80 cm
  • Net Weight:  Approx. 235 kg
  • CF120-050
Computer Interface (computer not included)
                                           This includes CF120S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • Washed sand 160 kg (Due to export laws and regulations, washed sand cannot be exported. Buyer should source it locally.)
  • Other optional equipment, please contact manufacturer ([email protected])
  • CF120S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS
