HB 030M SERIES AND PARALLEL PUMP, Multi Speeds

Fluid Mechanic > Pump and turbine test accessories – HB Series

HB 030M SERIES AND PARALLEL PUMP, Multi Speeds

Enquiry

Video

Download

This equipment is designed to study head vs flow rate characteristics of two pumps connected in series or parallel. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

It consists of two identical pumps with 3 different speeds, inter connecting pipings, and control valves. Both pumps are interconnected and mounted on a support next to the Hydraulic Bench. By manipulating flow control valves, the two pumps can be operated individually, or both pumps in series or in parallel. Pressure gauges are installed at pump suction and discharge. The apparatus is equipped with suction hoses and strainers and a discharge hose.

Instruction manual is also included.

  • Characteristics of two pumps connected in series or parallel

  • Flow rate vs head at three different speeds for individual pump.

  • Flow rate vs head at a fixed speed for two pumps connected in series or parallel.

  • Pump


     - Multi speeds

     - Maximum flow

     - Maximum head

: 3 different speeds

: 70 LPM

: Approx. 7 m water


  • Pressure gauge
:   4
  • Power supply

:   220 V, 1 Ph, 50 Hz. Other power supply is available on request.





  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 65 x 65 cm
  • Net Weight:  Approx. 28 kg
  • HB030MS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

HB030MS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HB 029 PUMP TEST APPARATUS

HB 029 PUMP TEST APPARATUS

Enquiry

Video

Download

This equipment is designed to study of centrifugal pump characteristics at various speed. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The pump with motor is mounted on the Hydraulics Bench. An advanced inverter controls speed as well as indicating speed and input power. Pump hoses with half unions are used to connect the pump with the Hydraulics Bench. Pressure gauges are installed at pump suction with half union and also at pump discharge (optional). The pump draws water from the Hydraulics Bench storage tank via a suction hose with a strainer and delivers flow to the Hydraulics Bench measuring tank (HB100) or flow digital display (HB100N).

Instruction manual is also included.

  • Flow rate vs head at various speeds

  • Pump input, output and overall efficiency at various speeds

  • Pump


     - Types

     - Maximum flow rate

     - Maximum head

:  Approx. 80 LPM

:   Approx. 18 m water

:  Advanced inverter


  • Pressure gauge
:   Suction
  • Power supply

:   220 V, 1 Ph, 50 Hz. Other power supply is available on request.





  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 75 x 50 cm
  • Net Weight:  Approx. 20 kg
  • HB029S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HP002-2
Pressure gauge (required accessory)
  • HP011
Pressure digital display
  • HB029RA

Reciprocating pump instead of standard pump

HB029S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HB 025 HYDRAULIC RAM PUMP

HB 025 HYDRAULIC RAM PUMP

Enquiry

Download

The apparatus demonstrates the principle of a ram pump. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

Water from a Hydraulics Bench is supplied to a reservoir with an overflow pipe. Height of the reservoir is adjustable. Water from the reservoir is supplied to the ram pump which has two valves. One valve allows the water to discharge in adjustable pulse controlled by a counter weight. When this valve shuts, the pressure wave will push the water in the pump via a check valve through a non-return valve to the delivery pipe. Water is delivered to a clear graduated cylinder with an adjustable height. A pulse chamber is provided to smoothen the ram delivery.

Instruction manual is also included.

  • Demonstration of the principle of a ram pump

  • Determination of efficiency of the Hydraulic Ram

  • Pump material
:  Stainless steel casing
  • Reservoir
:  1
  • Graduated cylinder
:  1
  • Adjustable supply head
:  Up to 1000 mm
  • Adjustable delivery head
:  Up to 2000 mm


  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 65 x 125 cm
  • Net Weight:  Approx. 16 kg

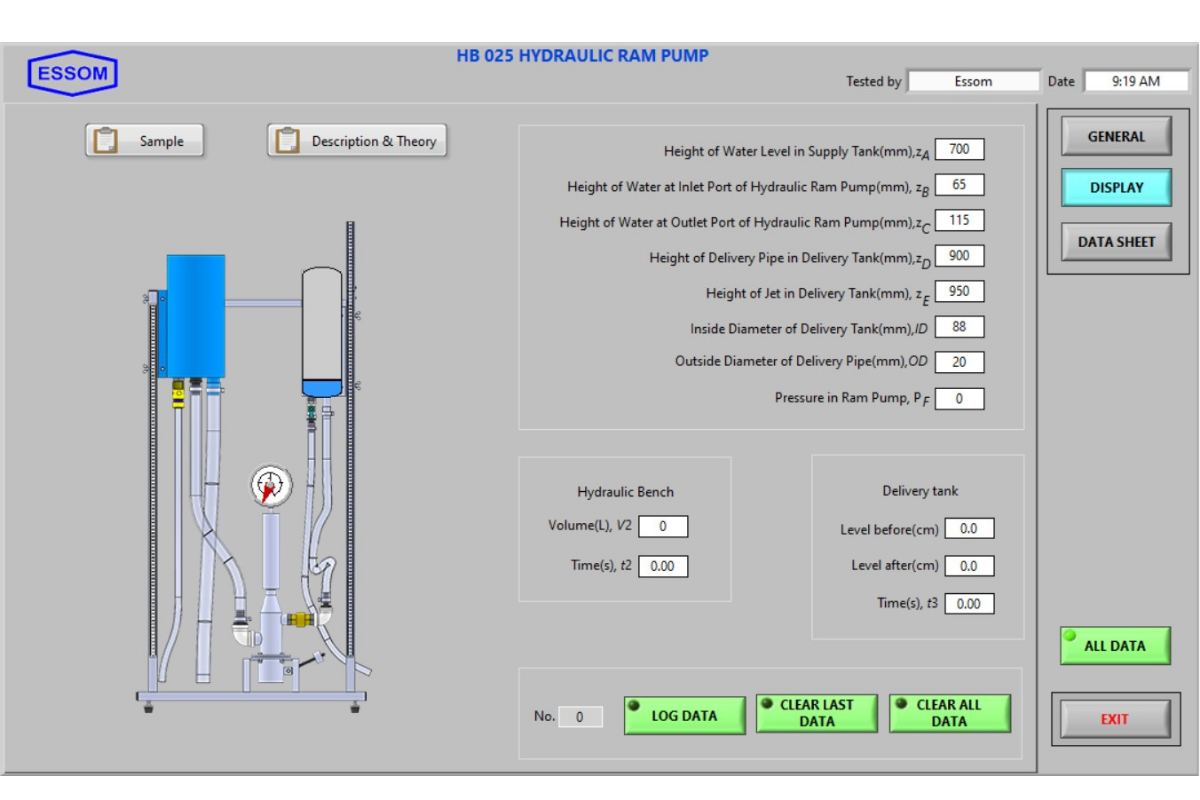

  • HB025S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

HB025S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HB 023P MINI PELTON TURBINE

HB 023P MINI PELTON TURBINE

Enquiry

Download

This equipment demonstrates Pelton turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The adjustable turbine nozzle directs water jet to the runner buckets. Inlet pressure is indicated by a pressure gauge (optional). Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.

Instruction manual is also included.

  • Efficiency of Axial flow propeller turbine

  • Characteristic of Axial flow propeller turbine

  • Turbine torque and power output versus speed and flow rate at various heads

  • Construction

:  Stainless steel casing with transparent window


  • Turbine ratings

     - Maximum power:  Over 40 W
  • Measuring instruments


     - Torque

     - Speed

: Spring balances

: Portable tachometer


  • Accessory
:  Inlet hose

  • Net (unassembled) Shipping Dimensions WxLxH: 36 x 45 x 70 cm
  • Net Weight:  Approx. 17 kg
  • HB023PS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HP002-2

Pressure gauge (required accessory)

HB023PS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

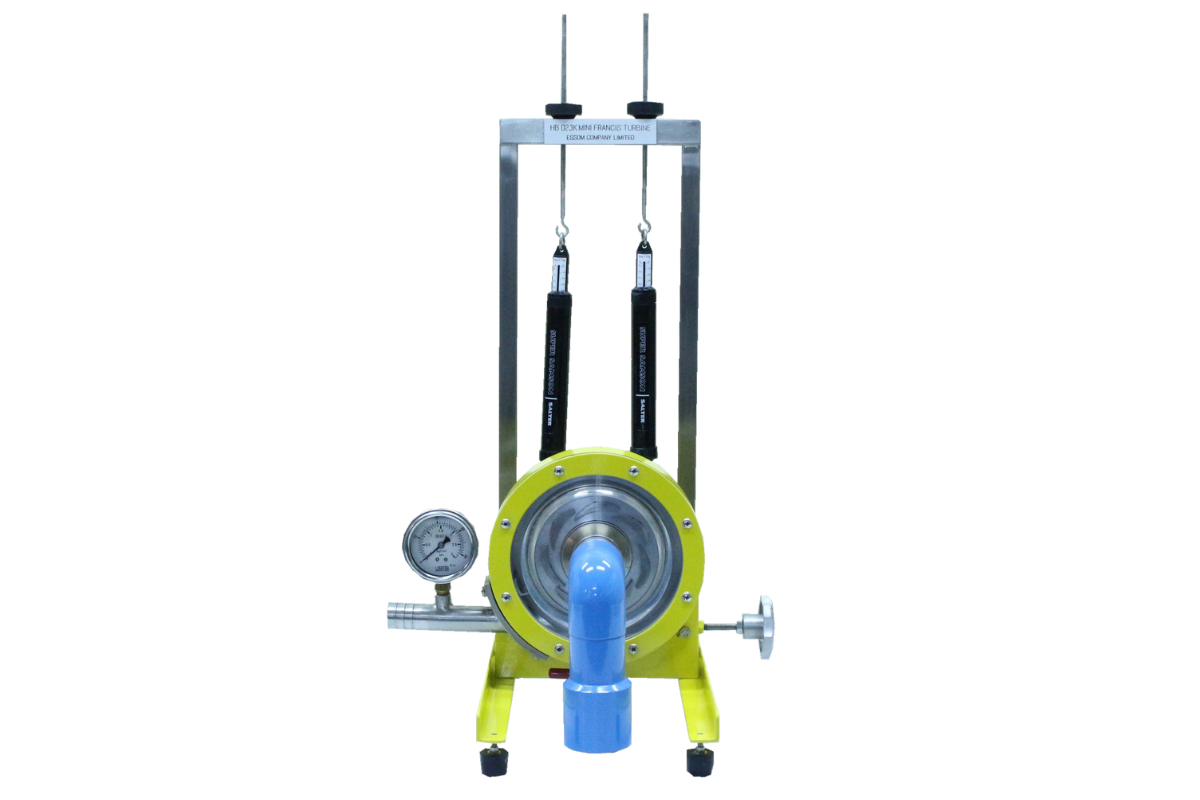

HB 023K MINI KAPLAN TURBINE

HB 023K MINI KAPLAN TURBINE

Enquiry

Video

Download

This equipment demonstrates Kaplan turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The turbine employs adjustable guide vanes and redirects water helically to the runner. Inlet pressure is indicated by a pressure gauge. Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.

Instruction manual is also included.

  • Efficiency of Axial flow propeller turbine

  • Characteristic of Axial flow propeller turbine

  • Turbine torque and power output versus speed and flow rate at various heads

  • Construction

:  Metal runner with adjustable guide vanes

:  Non-corrosion metal casing with transparent window and runner section


  • Turbine ratings

     - Maximum power:  Over 15 W
  • Measuring instruments


     - Torque

     - Speed

: Spring balances

: Portable tachometer


  • Accessory
:  Inlet hose

  • Net (unassembled) Shipping Dimensions WxLxH: 30 x 53 x 30 cm
  • Net Weight:  Approx. 8.5 kg
  • HB023KS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HP002-2

Pressure gauge (required accessory)

HB023KS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HB 023F MINI FRANCIS TURBINE

HB 023F MINI FRANCIS TURBINE

Enquiry

Video

Download

This equipment demonstrates Francis turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The turbine adjustable guide vanes direct water spirally to the runner. Inlet pressure is indicated by a pressure gauge (optional). Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench.

Instruction manual is also included.

  • Efficiency of Axial flow propeller turbine

  • Characteristic of Axial flow propeller turbine

  • Turbine torque and power output versus speed and flow rate at various heads

  • Construction

:  Bronze runner with adjustable guide vanes

:  Non-corrosion metal casing with transparent window


  • Turbine ratings

     - Maximum power:  Over 25 W
  • Measuring instruments


     - Torque

     - Speed

: Spring balances

: Portable tachometer


  • Accessory
:  Inlet hose

  • Net (unassembled) Shipping Dimensions WxLxH: 30 x 53 x 30 cm
  • Net Weight:  Approx. 8.5 kg
  • HB023FS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HP002-2

Pressure gauge (required accessory)

HB023FS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HB 023AI MINI AXIAL FLOW IMPULSE TURBINE

HB 023AI MINI AXIAL FLOW IMPULSE TURBINE

Enquiry

Download

This equipment demonstrates axial flow impulse turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The turbine twin nozzles with flow control valves direct water jets to the runner blades. Inlet pressure is indicated by a pressure gauge (optional). Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench.

Instruction manual is also included.

  • Efficiency of Axial flow propeller turbine

  • Characteristic of Axial flow propeller turbine

  • Turbine torque and power output versus speed and flow rate at various heads

  • Construction
: Stainless steel casing with transparent section
  • Turbine ratings

     - Maximum power:  Over 25 W
  • Measuring instruments


     - Torque

     - Speed

: Spring balances

: Portable tachometer


  • Accessory
:  Inlet hose

  • Net (unassembled) Shipping Dimensions WxLxH: 38 x 53 x 20 cm
  • Net Weight:  Approx. 7 kg
  • HB023AIS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HP002-2

Pressure gauge (required accessory)

HB023AIS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HB 023A MINI AXIAL FLOW PROPELLER TURBINE

HB 023A MINI AXIAL FLOW PROPELLER TURBINE

Enquiry

Download

This equipment demonstrates axial flow propeller turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with a submersible pump and a Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The turbine fixed guide vanes with flow control valve direct water helically to the runner. Inlet-pressure is indicated by a manometer. Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.

Instruction manual is also included.

  • Efficiency of Axial flow propeller turbine

  • Characteristic of Axial flow propeller turbine

  • Turbine torque and power output versus speed and flow rate at various heads

  • Construction
:  Stainless steel casing with transparent section for observation of guide vane and runner
  • Turbine ratings with submersible pump

     - Maximum power:  Over 10 W
  • Submersible pump


     - Motor

     - Power supply

:  0.37 kW

: 220V, 1 Ph, 50Hz. Other power supply is available on request.


  • Measuring instruments


     - Torque

     - Speed

     - Pressure

:  Spring balances

: Portable tachometer

:  Pressure gauge


  • Net (unassembled) Shipping Dimensions WxLxH: 30 x 55 x 30 cm
  • Net Weight:  Approx. 7 kg
  • HB023AS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.



  • HB023AS

U-tube mercury manometer

     - Range :  0-300 mm x 1 mm graduation

Note: Due to transport laws, mercury cannot be supplied.

Buyer must source it locally.

Approximately 25 mL or 350 g is required. Filling kit is provided.

HB023AS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
