ST 373 TENSION COEFFICIENTS

Structure and accessories > Force and moment

ST 373 TENSION COEFFICIENTS

Enquiry

Video

Download

The equipment demonstrates the use of tension coefficients in resolving three dimensional forces. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

A space frame is constructed from two tension members and one compression member. Each member has a built-in spring balance. The three members are joined together at an apex where a load is suspended. The other end of the compression member is a ball joint fixed to the bed and the other ends of the tension members have chains for attachment to two stationary columns. All joints can be slightly swiveled to minimize fixing moment. Resulting force for each member is measured by a three dimensions co-ordinate scale.

Instruction manual is also included.

  • Calculation of the forces induced, using the method of tension coefficients

  • Determination of the forces induced in individual frame members

  • Comparison of experimental and theoretical results

  • Vertical columns
:   2
  • Compression member
:   1
  • Tension members
:   2
  • Load hanger
:   1
  • Weights
:   1 lot
  • Three dimensions coordinate scale








  • Net (unassembled) Shipping Dimensions WxLxH: 30 x 80 x 10 cm
  • Net Weight:  Approx. 15 kg
  • ST373S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST373-001
Spring balance and weight in Newtons instead of grams
  • ST373S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 355 SUSPENSION CABLE

ST 355 SUSPENSION CABLE

Enquiry

Video

Download

This equipment is used for studying the inter-action between suspension cables and load measuring supports with uniform or non-uniform distributed load on the catenary cable. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

A light roller chain (the cable) is held by two sprocket pulleys and a spring balance is connected to each end of the roller chain. Load hangers are evenly placed along the roller chain whose length simulates a parabolic curve. Weights can be put on the load hangers to create symmetrical and non-symmetrical cable.

Instruction manual is also included.

  • Analysis using catenary and parabola theory

  • Cable weight and tension

  • Comparison of a symmetrical suspension cable and catenary

  • Unsymmetrical suspension cable

  • A point load on a suspension cable

  • Roller chain
:  1000 mm long
  • Load hangers
:  9
  • Weights
:  1 lot
  • Sprocket pulleys
:  2
  • Spring balances
:  2
  • Hanger slider
:  2







  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 40 x_20 cm
  • Net Weight:  Approx. 3.5 kg
  • ST355S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
ST355-055  Computer Assist (computer not included)
                                    This includes ST355S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST355S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 322 AREA MOMENT METHOD

ST 322 AREA MOMENT METHOD

Enquiry

Video

Download

The equipment is used for verification of the deflections and slopes of a beam by area-moment method. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.



The beam has a moment support and one built-in / knife edge support. The supports allow longitudinal travel of the beam. The moment support has a rotating arm which is monitored by a dial indicator. The moment is applied and measured by load on the rotating arm. The beam deflection is measured by a dial indicator.

Instruction manual is also included.

  • Deflections and slopes of a beam by area-moment method

  • Shape of a deflected beam.

  • Test beam

- Steel:  2
- Aluminum:  1
- Brass:  1
  • ST 115 Moment Support
:  1
  • ST 112 Built-in/Knife edge Support
:  1
  • Pulley set
:  1
  • Hanger slider
:  1
  • Cord
:  1
  • Load hangers
:  2
  • Weights
:  1 lot
  • ST131 Dial Indicator
:  3

  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 75 x 15 cm
  • Net Weight:  Approx. 10 kg
  • ST322S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
ST322-055  Computer Assist (computer not included)
                                    This includes ST322S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST322S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 320 EQUILIBRIUM OF A BEAM

ST 320 EQUILIBRIUM OF A BEAM

Enquiry

Video

Download

This equipment is used for measurement of support reactions of a simple beam or cantilever in equilibrium under different loads.  It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied).

The beam is supported by two weighing machines with knife edges fixed on to the pan. Load hanger with weights are hung on the beam between the two supports.  In the case of a cantilever, a spring balance and a weighing machine are used.

Instruction manual is also included.

  • Principle of Moments.

  • Reactions for a point load along a beam.

  • Test beam with scale

:  700 mm x 1 mm reading

  • Digital weighing machines
:  2
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot.








  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 60 x 15 cm
  • Net Weight:  Approx. 15 kg
  • ST320S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST320S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 319 THREE DIMENSIONAL EQUILIBRIUM

ST 319 THREE DIMENSIONAL EQUILIBRIUM

Enquiry

Video

Download

The equipment is used for studying the equilibrium of five concurrent and non-concurrent forces in a three-dimensional system.

A rigid box frame has four swiveling pulleys at the top corners and leveling screws at the legs. Four cords, each with a load hanger outside the frame, pass over the pulleys and meet inside the frame concurrently or non-concurrently with an additional cord between two joints. A vertical load with a cord is applied at one of the joints. Each cord is marked out a 100 mm length. Two PVC sheet are attached on two adjacent side walls and transparent plates with transparent graph grids are attached on the other two side walls.  By aligning each marked cord to the mirror, its coordinates in space can be measured.

Instruction manual is also included.

  • Equilibrium of a set of forces acting in a three-dimension system

  • Equilibrium of concurrent and non-concurrent forces

  • Frame dimensions
:  500 mm wide x 500 mm long x 600 mm high
  • Two rings cord
:  1
  • Cords
:  4
  • Accessory
:  Measuring tape
 :  Reference bar
  • Load hangers with cord
:  6
  • Weights
:  1 lot






  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 80 x 90 cm
  • Net Weight:  Approx. 30 kg
  • ST319S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST319S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 318 EQUILIBRIUM OF A RIGID BODY

ST 318 EQUILIBRIUM OF A RIGID BODY

Enquiry

Video

Download

This equipment is used for studying the ground and wall reactions as a weight is moved up a rigid ladder. It is to be used with ST300 Universal Structural Frame (separately supplied).

A ladder with rollers at each end leans against a wall.  Reactions at both ends of the ladder are measured by nylon

cords tensioned by weights. A sliding weight can be clamped at any position on the ladder and the ladder is prevented from falling by a stirrup at the top.

Instruction manual is also included.

  • Determine ground and wall reactions as a body moves up a ladder.

  • Experimental verification of calculations using the three conditions of equilibrium

  • Ladder
:   500 mm long
  • Pulley sets
:   3
  • Cords
:   3
  • Sliding weight
:   1
  • Load hangers and cords
:   3
  • Weights
:   1 lot
  • Track plates
:   2






  • Net (unassembled) Shipping Dimensions WxLxH: 25 x 70 x 20 cm
  • Net Weight:  Approx. 13 kg
  • ST318S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST318S
Learning Software
   to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

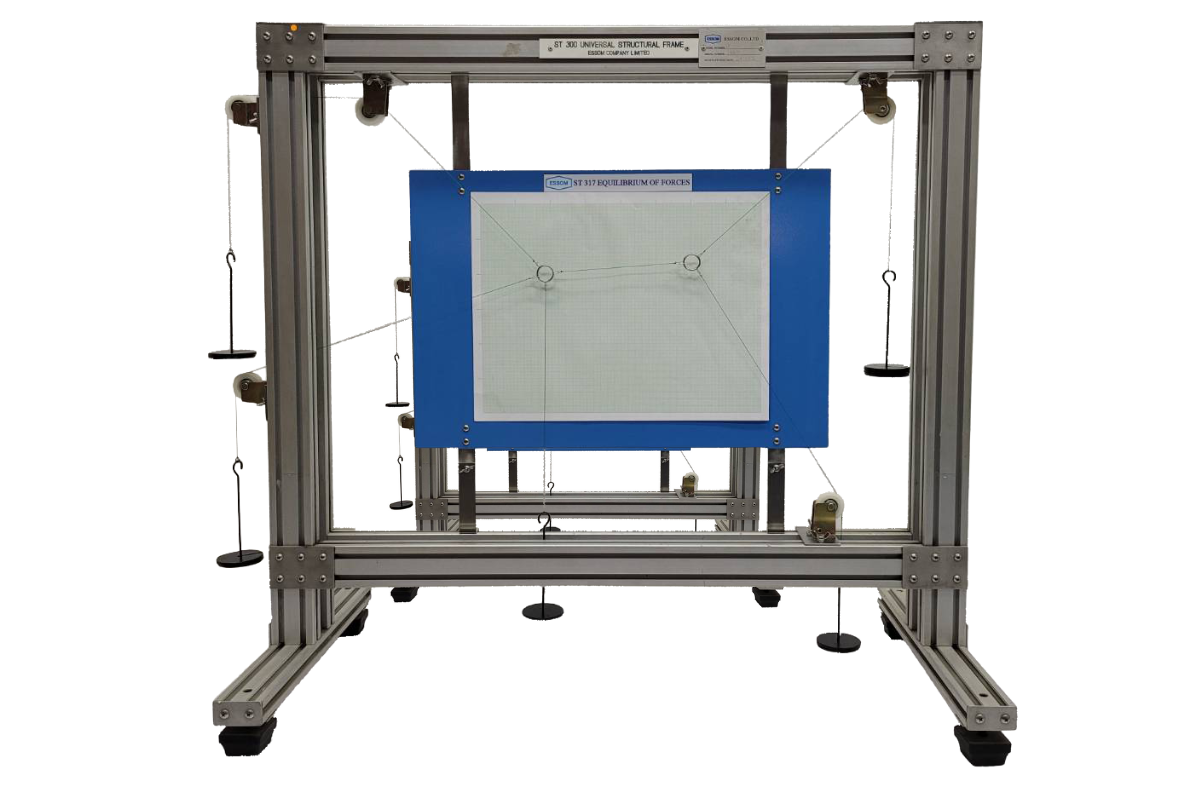

ST 317 EQUILIBRIUM OF FORCES

ST 317 EQUILIBRIUM OF FORCES

Enquiry

Video

Download

The equipment is used for studying the equilibrium of concurrent and non-concurrent forces in a single plane. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

Pulleys are fitted around the frame and multi directional forces are produced with nylon cords by weight hangers and weights. A graph paper (not supply) attached to the board is used for recording the lines of forces. Two rings cord for concurrent or non-concurrent forces and a device for marking the lines of the cords are provided.

Instruction manual is also included.

  • Equilibrium of a set of forces acting in a vertical plane

  • Equilibrium of concurrent and non-concurrent forces

  • Force board
:  300 x 500 mm
  • Two rings cord

  • Cord marking pen

  • Angular scale

  • Pulley set
:  1 set
  • Nylon cords
:  6
  • Load hangers
:  6
  • Weights
:  1 lot





  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 60 x 25 cm
  • Net Weight:  Approx. 17 kg
  • ST317S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST317S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 3112 SHEAR FORCE AND BENDING MOMENT

ST 3112 SHEAR FORCE AND BENDING MOMENT

Enquiry

Video

Download

This equipment is used for measurement of shear force and bending moment in a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance for measuring the shear force and an underhung spring balance for measuring bending moment are provided. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam

  • Variation in bending moment for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values and bending moment diagrams

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Hanger sliders
:  3
  • Spring balances
:  2
  • Load hangers
:  3
  • Weights
:  1 lot
  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST3112S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST3112-055
Computer Assist (computer not included)
                                  This includes ST3112S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST3112S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 312 SHEAR FORCE

Enquiry

Video

Download

This equipment is used for measurement of shear force on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance measures the shear force and an underhung spring is provided to resist bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Visual demonstration of the shear force at a cut section in a beam

  • Variation in shear force for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring
:  1
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot







  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST312S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST312-055
Computer Assist (computer not included)
                                  This includes ST312S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST312S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 311 BENDING MOMENT

ST 311 BENDING MOMENT

Enquiry

Download

This equipment is used for measurement of bending moment on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with a ball bearing hinge at the joint. An underhung spring balance holds the hinge in compression, hence resists and determines bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included

  • Visual demonstration of the bending moment at a cut section in a beam

  • Variation in bending moment for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values and bending moment diagrams

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot











  • Net (unassembled) Shipping Dimensions WxLxH: 125 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST311S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST311-055
Computer Assist (computer not included)
                                  This includes ST311S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST311S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
