Category Archives: ST Series

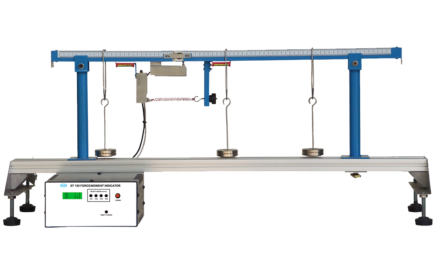

ST 3112 SHEAR FORCE AND BENDING MOMENT

Posted on by

Structure and accessories > Force and moment

ST 3112 SHEAR FORCE AND BENDING MOMENT

Enquiry

Video

Download

This equipment is used for measurement of shear force and bending moment in a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance for measuring the shear force and an underhung spring balance for measuring bending moment are provided. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam

  • Variation in bending moment for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values and bending moment diagrams

  • Beam length
 :  700 mm
  • ST111 Round Supports
 :  2
  • Hanger sliders
 :  3
  • Spring balances
 :  2
  • Load hangers
 :  3
  • Weights
 :  1 lot
  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST3112S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST3112-055
Computer Assist (computer not included)
                                  This includes ST3112S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST3112S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

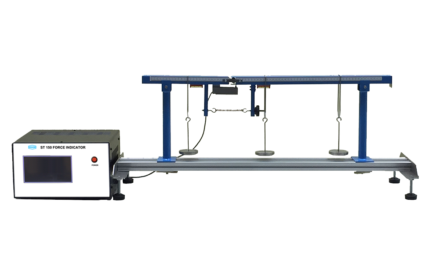

ST 312 SHEAR FORCE

Posted on by

Structure and accessories > Force and moment

ST 312 SHEAR FORCE

Enquiry

Video

Download

This equipment is used for measurement of shear force on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance measures the shear force and an underhung spring is provided to resist bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Visual demonstration of the shear force at a cut section in a beam

  • Variation in shear force for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring
:  1
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot







  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST312S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST312-055
Computer Assist (computer not included)
                                  This includes ST312S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST312S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

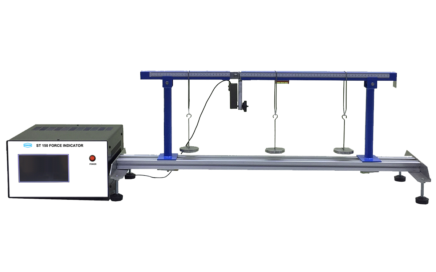

ST 311 BENDING MOMENT

Posted on by

Structure and accessories > Force and moment

ST 311 BENDING MOMENT

Enquiry

Video

Download

This equipment is used for measurement of bending moment on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with a ball bearing hinge at the joint. An underhung spring balance holds the hinge in compression, hence resists and determines bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included

  • Visual demonstration of the bending moment at a cut section in a beam

  • Variation in bending moment for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values and bending moment diagrams

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot











  • Net (unassembled) Shipping Dimensions WxLxH: 125 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST311S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST311-055
Computer Assist (computer not included)
                                  This includes ST311S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST311S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 400 UNIVERSAL TEST FRAME, 300kN

Posted on by

Structure and accessories >

ST 400 UNIVERSAL TEST FRAME, 300kN

Enquiry

Video

Download

The universal test frame is used for studying loading experiments on steel work or civil engineering structure such as girder, beam, truss etc. where actual 1:1 loading can be made. The structure is to be provided by the user.

It consists of twin frame with intermediate space to permit structure longer than the frame opening to be tested. The frame is made of channels joined together by high strength bolts. Two cross bearers under the columns support the frame and rest on four anti vibration leveling feet. The frame is to be assembled at site.

Loading is by hydraulic jacks on traveling carriages. Accessories for loading, attachment of dial gauges, and stabilization of the experiment plane frame are provided.

Instruction manual is also included.

  • Verification of structure deflection under loads.
  • Main frame
:  Twin frame of channel
  • Loading capacity

-   Three point bending:  300kN
-   Four point bending:  2x 200kN
  • Frame opening
:  3.5 x 1.65 m
  • Maximum distance between two loading points
:  5.25 m
  • Traveling carriages
:  2
  • Hydraulic pump
:  With mobile table and 4 hoses with self-sealing coupling
  • Hydraulic jacks

  • Measuring instruments
:  2
- Force gauges:  2
- ST 131 Dial Indicators:  3
  • Power supply
:  220 V, 1 Ph, 50Hz. Other power supply is available on request.
  • Accessories include cross bearers, thick plates, half round bearings, full round bearings, c-clamps, cross beams for holding dial   gauge or truss member in place.
  • Net (unassembled) Shipping Dimensions WxLxH: 125 x 560 x 185 cm
  • Net Weight:  Approx. 2,500 kg
  • ST400S
Learning Software
                                to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • A-frame with 5 MT hoist for heavy beam installation.
  • 30 MT load digital display.
  • ST400-050
Computer Interface (computer not included)
                                 This includes ST400S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST400S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 305 UNIVERSAL BASE FRAME

Posted on by

Structure and accessories >

ST 305 UNIVERSAL BASE FRAME

Enquiry

Video

Download

This is a bench top base frame made from 30 x 30 mm aluminum profile with stainless steel support and adjustable footings. The base is a twin member on which optional structural models and accessories are attached. This frame is more economical than ST300 Universal Structural Frame, and is intended to replace ST300 for many experiments in structural mechanics where underhung and side hung are not required.

  • Dimensions WxLxH
:   300 x 950 x 100 mm
  • Twin member space
:   30 mm
  • Accessory
:   Measuring tape






  • Net (unassembled) Shipping Dimensions WxLxH:6 x 95 x 10 cm
  • Net Weight:  Approx. 4 kg








This software can accommodate both manually key-in inputs and inputs from computer interface unit. The software includes test data table, formula and calculated data.



SIMILAR PRODUCTS

ST 300 UNIVERSAL STRUCTURAL FRAME

Posted on by

Structure and accessories >

ST 300 UNIVERSAL STRUCTURAL FRAME

Enquiry

Video

Download

This is a basic bench top type twin rectangular frame of 30 x 60 mm aluminum profile with adjustable footings. Optional structural models and accessories are attached to the twin frame by clamps to support specific experiments in the field of structural mechanics especially where underhung and sidehung weights are required.

  • Dimensions WxLxH
 :   450 x 970 x 980 mm
  • Twin member space
 :   30 mm
  • Window opening
 :   850 x 650 mm
  • Maximum load capacity
 :   2.5 kN
  • Accessory
 :   Measuring tape
  • Net (unassembled) Shipping Dimensions WxLxH: 15 x 90 x 15 cm
  • Net Weight:  Approx. 14 kg













SIMILAR PRODUCTS

MM 221 EPICYCLIC GEAR TRAIN

Posted on by

Machine Elements and Theory of Machines > Mechanism for Motion Study > MM

MM 221 EPICYCLIC GEAR TRAIN

Enquiry

Video

Download




GENERAL DESCRIPTION

This mechanism demonstrates relative angular motion in degrees between two shafts with common axis using sun and planetary gears to produce a forward speed.








  • Net (unassembled) Shipping Dimensions WxLxH: 23 x 30 x 20 cm
  • Net Weight:  Approx. 6 kg
