MP 315D SUBSONIC WIND TUNNEL, Downstream Fan

Posted on by

Airflow and air compression > Wind Tunnels

MP 315D SUBSONIC WIND TUNNEL, Downstream Fan

Enquiry

Video

Download

The wind tunnel is an open circuit down stream fan type designed for studying the subsonic aerodynamics. It is to be used with optional accessories and models below.

The air enters the tunnel via a wire mesh screen and a flow straightener. A high contraction ratio section ensures uniform velocity across the transparent test section. Downstream of the working section is a low angle diffuser which terminates at the tunnel fan. The diffuser and contraction sections have a high quality internal finish to minimize the boundary layer effects. The fan impeller blades are of an aerofoil design cast aluminum to ensure maximum aerodynamic efficiency and minimum turbulence. Fan speed is adjustable by an inverter.

Four equally spaced static pressure taps are connected to a manifold to minimize effects from a model. Air speed is indicated by an inclined manometer and a calibration graph. Models are mounted on two components balance support with digital display for measurement of drag and lift. Model holder can be rotated to allow quick change on the angle of incidence.  This angle is indicated on an angular scale.

The tunnel is on a frame with adjustable footings for table top mounting.

Instruction manual is also included.

  • Pressure and velocity measurement.
  • Estimation of drag coefficients of various bodies, eg. sphere, hemisphere, disc, streamlined shape etc.
  • Estimation of drag and lift coefficients of an aerofoil.
  • Pressure distribution around an aerofoil or a cylinder.
  • Investigation of boundary layer at a flat plate by measuring total head distribution.
  • Stream lines visualization using a smoke generator.
  • Wakes behind models.









  • Fan:

- Diameter: 300 mm
- Impeller: Single stage, aerofoil blade
  • Contraction area ratio
: 9:1
  • Test section
: 150 mm x 150 mm x 450 mm long, transparent on three sides
  • Maximum air velocity
: Over 30 m/s
  • Measuring instruments

- Water manometer: Twin type
- Wind velocity : Multiple taps contraction section differential pressure with velocity calibration graph (to be used with inclined water manometer above)
- Sensors with digital display
  • Lift and drag
: Two component balance with model holder for measurement of lift and drag
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 60 x 145 cm
  • Net Weight: 55 kg
  • MP315DS
 Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • MP315-003A
 Three component balance with digital display and model holder for measurement of lift, drag, and pitching instead of two component balance.
  • MP330-110
 Anemometer for velocity measurement, telescopic handle
  • MA216-450
 Multitube inclined water manometer
  • MA216-450D
 16 points differential pressure sensor with sequential readings (To be used with computer)
  • MP315-121
 Pitot-static probe, stainless steel
  • MP315-122
 Yaw probe, three tube type with clamp
  • MP315-125
 Wake survey rake
  • MP315-160
 Computer Control (computer not included) This includes MP315DS and significant sensor(s) instead of analog measuring instrument(s),
data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging and control
with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • MP315DS
 Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

MP315-160 Computer Control

OPTIONAL MODELS FOR LIFT AND DRAG

: Models for a study of lift, drag and pitching include:

MP315-011Sphere, plastics
MP315-012Hemisphere, plastics
MP315-013Circular disc
MP315-014Circular ring
MP315-015Square plate
MP315-016Vane
MP315-017Cylinder, plastics
MP315-018Streamlined shape, plastics
MP315-019Aerofoil, aluminium
MP315-019LAerofoil, long, aluminium
MP315-030Aerofoil with slot and flap, aluminium
MP315-030LAerofoil with slot and flap, long

OPTIONAL MODELS AND ACCESSROIES FOR INDIVIDUAL STUDY

MP315-053 Pressure wing, aluminium
MP315-055Pressure cylinder, plastics:
MP315-057Boundary layer plate with probe
MP330-130Smoke generator set
MP142-003Additional Smoke fluid
SIMILAR PRODUCTS

MP 142 AIR FLOW VISUALIZATION

Posted on by

Airflow and air compression > Wind Tunnels

MP 142 AIR FLOW VISUALIZATION

Enquiry

Video

Download

The apparatus is intended for visualization of stream lines flow around models.
The apparatus consists of a stilling entrance, a contraction section with air flow straighteners, a streamlines distributor, a viewing window, and a smoke generator.
Air flow is generated by a fan. The window has a black back ground and side lights are provided for better visualization of the streamlines. The stream lines are in a vertical pattern. Models are provided.
Instruction manual is also included.

  • Laminar and turbulence flow observation.



  • Flow patterns around bodies.



  • Boundary separation on bodies.



  • Effects of angle of attack.

  • Viewing window
 :  180 x 250 mm
  • Number of streamlines
 :  18
  • Smoke generator
 :  1 ea. with smoke fluid
  • Models
 :  1 x Aerofoil NACA 0015 profile
:  1 x Cylinder
:  1 x Plate
:  1 x Automobile
  • Power supply
 :  220V 1Ph 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 60 x 145 cm
  • Net Weight: 55 kg
MP142-001 Additional model set A: Slotted orifice, circular disc, circular orifice, sphere, hemispheres, wing tip, ISA nozzle and truck.
MP142-002 Additional model set B: Bend, bend with turning vane, corner, cylindrical tube bank.
MP142-003 Additional smoke fluid, 4 L
  • Other accessories can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])




SIMILAR PRODUCTS

MP 203 TWO STAGE AIR COMPRESSOR TEST SET, Air-Water Cooled

Posted on by

Airflow and air compression > Air compressor test sets

MP 203 TWO STAGE AIR COMPRESSOR TEST SET, Air-Water Cooled

Enquiry

Video

Download

The test set is for studying the two stage reciprocating air compressor characteristics.
For educational purpose, the two stages are separated and can be operated at different speeds. Both stages are connected by vee-belts to the same motor with an advanced inverter. The second stage compressor has three alternative pulleys to vary the pressure ratio between the two stages. An intercooler is provided between first and second stage. The air receiver has a drain valve, safety valve, pressure switches and a discharge valve. The piping system is arranged such that intercooler or second stage compressor can be by passed. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.

  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.

  • Effect of compressor speed.

  • Effect of intercooler.

  • Effect of second stage drive ratio.

  • Air water heat exchanger demonstration.

  • Compressors:

- Type:  Air-cooled, two stage
- Displacement:  165 mL or approximate equal
- Second stage:  Single cylinder, completed with three different diameter pulleys
- Maximum working pressure:  12 kg/cm2
  • Air receiver
:  Approx. 60 L
  • Intercooler
:  Water cooled, counter flow heat exchanger
  • Measuring instruments

- Pressures:  Pressure gauges at first stage and second stage outlets, and air receiver
- Air flow rate:  Inlet orifice plate with air box and inclined water manometer, 0-450 mm x 1 mm
    graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Motor input power:  Advanced inverter
- Cooling water flow rate:  Rotameter
- Sensors with digital display:  Speed for compressors
 :  Temperatures for ambient, outlet air of each stage, second stage inlet and cooling
    water inlet and outlet



:  Atmospheric pressure
  • Power supply
:  220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 110 x 140 x 130 cm
  • Net Weight: Approx. 190 kg
  • MP203S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • MP200-030
P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer.
  • MP201-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power.
  • MP203-002A

Two separate motors (first stage 0.75 kW, second    stage 0.75 kW) with advanced inverters for variable speed ratio between the first and the second stage, instead of single motor and advanced inverter.

  • MP203-020

Additional receiver tank.

  • MP203-050
Computer Interface (computer not included)
This includes MP203S and significant sensor(s) instead of analog measuring instrument(s),
 data acquisition (capture, display, graph and/or data export),

additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • Other accessories can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • MP203S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

MP 202 TWO STAGE AIR COMPRESSOR TEST SET, Air Cooled

Posted on by

Airflow and air compression > Air compressor test sets

MP 202 TWO STAGE AIR COMPRESSOR TEST SET, Air Cooled.

Enquiry

Video

Download

The test set is for studying the two stage reciprocating air compressor characteristics.
An industrial type compressor is driven via a vee-belt by a motor with an advanced inverter. Air cooling between the two stages is by finned tubes. The air receiver has safety valves, pressure switches, a drain valve and a discharge valve. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.

  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.
  • Effect of compressor speed.
  • Effect of inter cooling (optional).
  • Air water heat exchanger demonstration (optional).
  • Compressors:

- Type:  Air cooled, two stages
- Displacement:  300 ml or approximately equal
- Maximum working pressure:  12 kg/cm2
  • Air receiver
:  Approx. 60 L
  • Measuring instruments

- Pressure:  Pressure gauges at first stage and second stage outlets
- Air flow rate:  Inlet orifice plate with air box and inclined water manometer, 0-450 mm x 1 mm
   graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Motor input power:  Advanced inverter
- Sensors with digital display:  Speed for compressor
 :  Temperatures for ambient and outlet air of each stage
 :  Atmospheric pressure
  • Power supply
:  220V 1Ph 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 95 x 128 x 135 cm
  • Net Weight: Approx. 195 kg
  • MP202S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • MP200-030
P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer.
  • MP201-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power.
  • MP202-013
Intercooler
This consists of water cooled inter cooler unit with rotameter,
temperatures for cooling water inlet and outlet. In this case, an outside water supply is required.
  • MP202-050

Computer Interface (computer not included) This includes MP202S and significant sensor(s)

 instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • Other accessories can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • MP202S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HP 104 ADVANCED INVERTER WITH COMPUTER INTERFACE UNIT

Posted on by



FLUID MECHANICS > Pump test set

HP 104 ADVANCED INVERTER WITH COMPUTER INTERFACE UNIT

Enquiry

Video

Download

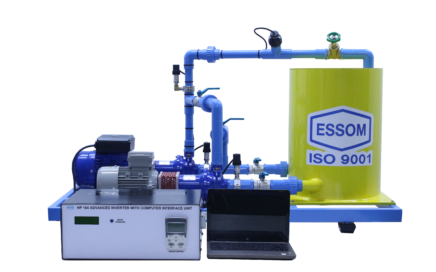

The unit is designed to be used with pump demonstration unit. The unit consists of an advanced inverter for controlling and indicating motor speed as well as for calculating motor input power and also provides power supply to the motor, digital display, and the computer interface unit.

  • Advanced inverter
:  Speed control.
  • Digital display
:  Speed and motor input power.
  • Computer interface unit
:  4 channels
  • Input power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH: 21 x 31 x 11 cm
  • Net Weight:  Approx. 5 kg

SIMILAR PRODUCTS

HF 566 SEDIMENT FLOW CHANNEL, 600 mm Wide

Posted on by

     Fluid mechanics > Tilting flow channels

HF 566 SEDIMENT FLOW CHANNEL, 600 mm Wide

Enquiry

Video

Download

The channel is designed for studying the sediment transport and bed forms as well as flow phenomena without sediment. It is a service unit to be used with optional accessories and models. Instruction manual is also included.

Under Frame

The channel bed rests on twin I-beam under frame which ensures static loading deflections are kept to a minimum. The length of the I-beam is about 6 m Each section is shipped with glass side walls. This simplifies site installation as there are less joints and is easier to ensure straight side walls throughout the length. To ensure minimum deflection, the I beam base frame of 18 m is supported by a fulcrum at the middle and adjustable height support at both upstream and downstream ends for a total of 3 supports.

Slope Adjustment

Each adjustable height support uses twin screws and with a system of worm and wheel gear boxes and miter gears which are intern driven by a motor. A slope scale is provided at one end of the flume.

Channel Bed

The channel bed is made of stainless steel with twin screw holes of equal distance along the channel length to hold accessories or models to the flume bed when used as a normal tilting flow channel. These holes can also be used for pressure tapping points to measure pressure loss along the channel length.

Side Walls

For safety reasons, the side walls are made of tempered glass. The walls are supported at interval by brackets with screws for vertical position adjustment.

Instrument Carriage

Top rails made of stainless steel tubes are attached to the top angle on each wall of the channel. Screws supporting the rails can be adjusted to ensure uniform height and in a straight line. A scale graduated in mm. is attached along the full length of one top angle of the walls. The instrument carriage is manually operated.

Head Tank

The head tank is made of stainless steel and its sides and bottom are curved to ensure smooth flow into the channel. Perforated plates are also provided in the head tank to further smoothen the flow.

Sediment Feeder

The channel bed may be filled by a sediment feeder with a slope stopper upstream and another one just before sediment trap at the downstream end of the channel. Feeding is by a screw.

Sediment Trap

A Sediment trap is provided at the downstream end of the channel. The trapped sediment can be discharged by

 a bottom value. The trap is covered when used as a normal flow channel.

Storage Tank

An underground concrete storage tank is recommended as standard. This tank is to be built by the user. However, above ground tank is available (optional).

Walkway

A steel walkway with a checker plate floor and side rails is provided on both side of the flume for ease of model installation and flow observations.

Circulating Pump

The pump is ceramic coated to minimize wear by sediment abrasion. A mechanical seal is used. A geared butterfly valve is provided to control accurate rate of flow.

Flow measurement

A flow digital display is used. In the case of an underground storage tank, a measuring tank with a calibrated weir is available as an option. The flow rate is controlled by a geared butterfly valve.

Model and Accessories

In the case of no sediment, the channel may be used as a normal tilting flow channel. All accessories and models have side seals to ensure no water seep or leak through the sides of the models. A wide variety of models and accessories are available as an option.

As Sediment Channel:

  • Fixed smooth bed flow
  • Flow over mobile sand bed
  • Flow structures
  • Local scour
  • Mechanics of sediment transport
  • Bed form hysteresis
  • Depositionary features and fancies
  • Computational work
  • Flow over fixed gravel bed



As Tilting Flow Channel:

  • Flow measurement
  • Hydraulic jump
  • Analysis of model structures
  • Gauging structures
  • Velocity profile
  • Continuity and energy equations
  • Similarity laws
  • Roughened bed characteristics
  • Surge propagation
  • Channel size
: 600 mm wide, 700 mm high
  • Channel length
: 18 m (12 m length can be supplied on request)
  • Total length
:  Additional length 3 m for head and storage tanks.
  • Tilting adjustment
: -0.5 to +2%
  • Side walls
: Tempered glass
  • Channel bed
:  Stainless steel
  • Sediment feeder
:  Motorized
  • Sediment trap

:  Stainless steel with cover and sediment recovery system


  • Water storage tank

:  Underground tank to be provided by user. Aboveground tank is optional


  • Head tank
:  Stainless steel
  • Sluice gate
:  Stainless steel, rack and pinion type, built-in at downstream end of flume
  • Pump
:  1
  • Flow measurement
:  Flow digital display
  • Instrument trolley
:  Manual operated
  • Power supply
:  380 V, 3 Ph, 50 Hz. Other power supply is available on request.
  • Shipping Dimensions: One 40 ft. container (without storage tank)
  • HF566S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HF560-001A
Motorized instrument trolley instead of manual operated trolley
  • HF560-002
Above ground storage tank, fiber glass or stainless steel, with lids

As A Sediment Flow Channel:

  • HF566-010
Sediment drying oven.

As A Tilting Flow Channel:

  • HF566-017
Flow calibration tank
  • HF566-019
Stainless steel vernier hook and point gauge with vertical and horizontal movement
  • HF566-020
Basic weir plate with stainless steel 60˚ V notch and rectangular notch weir attachment.
  • HF566-022
Sharp crested weir
  • HF566-023
Broad crested weir, sharp edges
  • HF566-023A
Round edge attachment for HF560-023
  • HF566-024
Crump weir
  • HF566-025
Trapezoidal weir
  • HF566-030
Ogee weir with consisting of base profile unit both upstream and downstream pressure tappings and manometer board
  • HF566-031
Dam spillway consisting of base profile unit with different interchangeable downstream sections:
 - Toe, ski jump, piers and pegs, gravel box, or stop logs
  • HF566-032
USBR type 2,3 or 4 energy dissipater
  • HF566-033
Syphon spillway
  • HF566-034
Bridge pier, round or square edge
  • HF566-035
Culvert fittings, round or square, horizontal or drop inlet with or without entrance flare
  • HF566-036
Vibration pile
  • HF566-040
Venturi flume
  • HF566-041
Parshall flume
  • HF566-042
Submerged orifice made from stainless steel on plastics
  • HF566-050
Sluice gate, rack and pinion drive with stainless steel attachment
  • HF566-052
Radial gate, rack and pinion drive with stainless steel attachment
  • HF566-060
Pitot tube with manometer board for measurement of flow velocity and various channel sections
  • HF566-061
Current meter
  • HF566-065
Lift and drag balance and models, large and small cylinders and aerofoil section
  • HF566-070
Roughened bed, gravel, sand, or corrugated
  • HF566-075R
Sediment transport study system with sediment recirculating system



In this case, pump will be cover with ceramic for corrosion prevention.
  • HF566-080
Wave generator with variable speed geared motor
  • HF566-080F
Full randomly wave generator



This include HF560-082 and HF560-080M.
  • HF566-080M
Wave measuring system
  • HF566-082
Absorbing beach, plain, roughened, or permeable
  • HF566-085
End tank, stainless steel, at downstream end of flume
  • Other accessories and models can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • HF566S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 560 TILTING FLOW CHANNEL, 600 mm wide

Posted on by

     Fluid mechanics > Tilting flow channels

HF 560 TILTING FLOW CHANNEL, 600 mm wide

Enquiry

Video

Download

The channel is designed for studying the hydraulic flow phenomena. It is a service unit to be used with optional accessories and models. Instruction manual is also included.



Under Frame

The channel bed rests on twin I-beam under frame which ensures static loading deflections are kept to a minimum. The length of the I-beam is about 6 m. Each section is shipped with glass side walls. This simplifies site installation as there are only two joints and is easier to ensure straight side walls throughout the length. To ensure minimum deflection, the I beam base frame of 18 m. is supported by a fulcrum at the middle and adjustable height supports of both upstream and downstream ends for a total of 3 supports.



Slope Adjustment

Each adjustable height support uses twin screws and with a system of worm and wheel gear boxes and miter gears which are intern driven by a motor. A slope scale is provided at one end of the flume.



Channel Bed

The channel bed is made of stainless steel with twin screw holes of equal distance along the channel length to hold accessories or models to the flume bed. These holes can also be used for pressure tapping to measure pressure loss along the channel length.



Side Walls

For safety reasons, the side walls are made of tempered glass or clear acrylic. The walls are supported at interval by brackets with screws for vertical position adjustment.



Instrument Carriage

Top rails made of stainless steel tubes are attached to the top angle on each wall of the channel. Screws supporting the rails can be adjusted to ensure uniform height and in a straight line. A scale graduated in mm. is attached along the full length of one top angle of the walls. The instrument carriage is manually operated.



Head Tank

The head tank is made of stainless steel and its sides and bottom are curved to ensure smooth flow into the channel. Perforated plates are provided in the head tank to further smoothen the flow.



Storage Tank

An underground concrete storage tank is recommended as standard. This tank is to be built by the user. However, above ground storage tank is available (optional).



Walkway

A steel walkway with a checker plate floor and side rail is provided on one side of the flume for ease of model installation and flow observations.



Circulating Pump

The pump seal is mechanical. A geared butterfly valve is provided to control an accurate flow rate.



Flow measurement

A flow digital display is used. In the case of an underground storage tank, a measuring tank with calibrated weir is available as an option. The flow rate is controlled by a geared butterfly valve.



Model and Accessories

All accessories and models have side seals to ensure no water seepage or leakage through the sides of the models. A wide variety of models and accessories are available as option.

  • Flow measurement

  • Hydraulic jump

  • Analysis of model structures

  • Gauging structures

  • Velocity profile

  • Continuity and energy equations

  • Similarity laws

  • Roughened bed characteristics

  • Surge propagation

  • Wave generation and absorption

  • Channel size
: 600 mm wide, 700 mm high
  • Channel length
: 18 m (12 m length can be supplied on request)
  • Total length
:  Additional length 34 m for head and storage tanks.
  • Tilting adjustment
: -0.5 to +2%
  • Side walls
: Tempered glass
  • Channel bed
:  Stainless steel
  • Water storage tank
: Underground tank to be provide by user.
  • Sluice gate
:  Stainless steel, rack and pinion type, built in at downstream end of the channel
  • Pump
:  1
  • Flow measurement
:  Water meter with stop watch.
  • Instrument trolley
:  Manual operation
  • Power supply
: 380 V, 3 Ph, 50 Hz Other power supply is available on request.
  • Shipping Dimensions: One 40 ft. container (without storage tank)
  • HF560S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HF560-001A
Motorized instrument trolley instead of manually operated trolley
  • HF560-002
Above ground storage tank, 12 m3
  • HF560-017
Flow calibration tank consisting of two sections where water is discharged into the first section and flows through stilling partition before discharging via calibrated weir into underground tank.
  • HF560-019
Stainless steel vernier hook and point gauge 0-600 mm with 0.05 mm reading or 1 mm graduation
  • HF560-020
Basic weir plate with stainless steel 90˚V notch and rectangular notch weir attachment
  • HF560-022
Sharp crested weir
  • HF560-023
Broad crested weir, sharp edges
  • HF560-023A
Round edge attachment for HF560-023
  • HF560-024
Crump weir
  • HF560-025
Trapezoidal weir
  • HF560-030
Ogee weir consisting of base profile unit with both upstream and downstream pressure tappings and manometer board
  • HF560-031
Dam spillway consisting of base profile unit with different interchangeable downstream sections:
 - Toe, ski jump, piers and pegs, gravel box, or stop logs.
  • HF560-032
USBR type 2,3 or 4 energy dissipater.
  • HF560-033
Syphon spillway made from clear acrylic and PVC.
  • HF560-034
Bridge pier, round or square edge
  • HF560-035
Culvert fittings, round or square, horizontal or drop inlet with or without entrance flare
 Tube is made from clear acrylic
  • HF560-036
Vibration pile
  • HF560-040
Venturi flume made from clear acrylic with stainless steel attachment.
  • HF560-041
Venturi flume made from clear acrylic with stainless steel attachment.
  • HF560-042
Submerged orifice made from stainless steel on plastics.
  • HF560-050
Sluice gate, rack and pinion drive with stainless steel attachment
  • HF560-052
Radial gate, rack and pinion drive with stainless steel attachment.
  • HF560-060
Pitot tube with manometer board for measurement of flow velocity and various channel sections.
  • HF560-061
Current meter
  • HF560-065
Lift and drag balance and models, large and small cylinders and aerofoil section.
  • HF560-070
Roughened bed, gravel, sand, or corrugated
  • HF560-075R
Sediment transport study system with sediment recirculating system
 In this case, pump will be cover with ceramic for corrosion prevention.
  • HF560-080
Wave generator with variable speed geared motor, maximum stroke 30 cm
  • HF560-080F
Full randomly wave generator
 This include HF560-082 and HF560-080M.
  • HF560-080M
Wave measuring system
  • HF560-082
Absorbing beach, plain, roughened, or permeable.
  • HF560-085
End tank, stainless steel, at downstream end of flume.
  • Other accessories and models can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • HF560S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 530 TILTING FLOW CHANNEL, 300 mm wide

Posted on by

     Fluid mechanics > Tilting flow channels

HF 530 TILTING FLOW CHANNEL, 300 mm wide

Enquiry

Video

Download

The channel is designed for studying the hydraulic flow phenomena. It is a service unit to be used with optional accessories and models below. Instruction manual is also included.



Under Frame

The channel bed rests on twin beam under frame which ensures static loading deflections are kept to a minimum. Each section is shipped with glass side walls. This simplifies site installation as there is only one joint and is easier to ensure alignment of the channel. The beams are supported by a fulcrum at one end and an adjustable height support at the other end.



Slope Adjustment

The adjustable height support uses twin screws. Each screw is driven by a worm and wheel gear box with a common motor. A slope scale is provided at one end of the flume.



Channel Bed

The channel bed is made of stainless steel with screw holes of equal distance along the channel length to hold accessories or models to the channel bed. These holes can also be used for pressure tapping to measure pressure loss along the channel length.



Side Walls

For safety reasons, the side walls are made of tempered glass or clear acrylic. The walls are supported at interval by brackets with screw adjustment to ensure that the channel wall is straight and vertical.



Instrument Carriage

Top rails made of stainless steel tubes are attached to the top angle on each wall of the channel. Screws supporting the rails can be adjusted to ensure uniform height and in a straight line. A scale graduated in mm. is attached along the full length of one top angle of the walls. The instrument carriage is manually operated.



Head Tank

The head tank is made of stainless steel and bottom slope to ensure smooth flow into the channel. Perforated sheets are also provided in the head tank to further smoothen the flow.



Storage Tank

The storage tank has adequate water to fill the full channel. Fiber glass storage tank(s) is provided at downstream end of the channel. Capacity of tank varies according to channel length.



Model Installation

A mobile ladder is used. In the case of small fiber glass tanks (optional) are used, the top covers of the tanks (optional) are used as a walkway and model installation.



Circulating Pump

The pump seal is mechanical. A geared butterfly valves is provided for accurate flow control.



Flow measurement

A flow digital display is used for easy observation on flow adjustment. A water meter is available as an option and may be used as a reference for flow indicator setting later.



Model and Accessories

All accessories and models have side seals to ensure no water seepage or leakage through the sides of the models. A wide variety of models and accessories are available as an option.

  • Flow measurement

  • Hydraulic jump

  • Analysis of model structures

  • Gauging structures

  • Velocity profile

  • Continuity and energy equations

  • Similarity laws

  • Roughened bed characteristics

  • Surge propagation

  • Wave generation and absorption.

  • Flume dimensions
: 300 mm wide, 450 mm high
  • Flume length
: 12.5 m (5, 7.5, 10 m, or other length can be supplied on request.)
  • Tilting adjustment
: -1% to +3%.
  • Side walls

: 6 mm tempered glass.


  • Channel bed
: Stainless steel
  • Water storage tank
:  Fiber glass, Approx. 2 x 1800 L (for 5,7.5 m, approx. 1 x 2000 L is supplied).
  • Head tank
:  Stainless steel
  • Sluice gate
:  Stainless steel, rack and pinion type, built in at downstream end of the channel
  • Circulating Pump
: 5.5 kW with a maximum flow rate approximately 1800 lpm.
  • Flow measurement
:  Flow digital display.
  • Instrument carriage
:   Manual operation.
  • Power supply
: 380 V, 3 Ph, 50 Hz. Other power supply is available on request.
  • Shipping Dimensions: One 40 ft. container (without storage tank)
  • HF530S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HF530-001A
Motorized instrument trolley instead of manually operated trolley
  • HF530-019
Stainless steel hook and point gauge 450 mm with 0.05 mm reading graduation.
  • HF530-019A
Stainless steel hook and point gauge 450 mm x 1.0 mm scale.
  • HF 530-BWB
Basic weir base for HF 530-020 , HF 530-021 and HF 530-025.
  • HF530-020
60˚V notch weir.
  • HF530-021
Rectangular notch weir.
  • HF530-022
Sharp crested weir
  • HF530-023
Broad crested weir, sharp edges
  • HF530-023A
Round edge attachment for HF530-023
  • HF530-024
Crump weir
  • HF530-025
Trapezoidal weir
  • HF530-030
Ogee weir consisting of base profile unit with both upstream and downstream pressure tappings and manometer board
  • HF530-031

Dam spillway consisting of base profile unit with different interchangeable downstream sections:

- Toe, ski jump, piers and pegs, gravel box, or stop logs

  • HF530-032
USBR type 2,3 or 4 energy dissipater
  • HF530-033
Syphon spillway made from clear acrylic and PVC
  • HF530-034
Bridge pier, round or square edge
  • HF530-035

Culvert fittings, round or square , horizontal or drop inlet with or without entrance flare

Tube is made from clear acrylic

  • HF530-036
Vibration pile
  • HF530-040
Venturi flume made from clear acrylic with stainless steel attachment.
  • HF530-041
Parshall flume made from clear acrylic with stainless steel attachment.
  • HF530-042
Submerged orifice made from stainless steel on plastics.
  • HF530-043
Trapezoidal flume made from clear acrylic.
  • HF530-050
Sluice gate, rack and pinion drive with stainless steel attachment
  • HF530-052
Radial gate, rack and pinion drive with stainless steel attachment
  • HF530-060
Pitot tube with manometer board for measurement of flow velocity and various channel sections
  • HF530-061
Current meter : digital or analog indicator, low speed probe from 5 to 150 cm/s or high speed probe 60-300 cm/s
  • HF530-065
Lift and drag balance and models, large and small cylinders and aerofoil section
  • HF530-070
Roughened bed, gravel, sand, or corrugated, 2.4 m
  • HF530-071
False floor section.
  • HF530-075
Sediment transport study system.
  • HF530-080
Wave generator with variable speed geared motor.
  • HF530-081
Wave measuring system.
  • HF530-082
Absorbing beach, plain, roughened, or permeable
  • HF530-085
End tank, stainless steel, at downstream end of flume
  • HF530-090
Checker plate walkway along one side of the flume
  • Pressure tapping points with manometer board.
  • Other accessories and models can be supplied on request.
  • HF530S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 515A TILTING FLOW CHANNEL, 150 mm wide, Adjustable bed

Posted on by

     Fluid mechanics > Tilting flow channels

HF 515A TILTING FLOW CHANNEL, 150 mm wide, Adjustable bed

Enquiry

Video

Download

The settlement of river water sediments over a long period of time results is a shallow river bed. Occasional dredging may be required to deepen the river bed for navigation purpose. The adjustable bed flow channel allows a study of flow under the simulated shallow and deepened river bed.

This is a self contained open channel designed for studying flow phenomena with change in bed slope. It is a service unit to be used with optional accessories and models below.

The channel is of rectangular cross section supported by rectangular steel frame. Side walls are transparent to allow full observation and are supported by adjustable steel brackets to ensure accurate wall alignment.  Tilting can be adjusted by a manual screw jack. The middle section of the bed can be adjusted manually upward or downward by a screw. A head tank with a stilling baffle provides a smooth flow and water is returned to the storage tank via an end tank. Models are attached to the top edges or bed of the flume by screws. Screw holes at the bed can also be used for pressure tapping to measure pressure loss along the channel length.

Instruction manual is also included.

  • Open channel flow

  • Flow measurement

  • Hydraulic jump

  • Continuity and energy equations

  • Discharge under sluice gate

  • Channel size
:  150 mm wide, 350 mm high
  • Channel length
:  5 m (Extended length can be supplied on request.)
  • Tilting adjustment
:  -1% to +3%
  • Side walls
: Clear acrylic or tempered glass, with clear vertical scale
  • Channel bed
:  Stainless steel
  • Bed adjustment
: Upward and downward
  • Water storage tank
:  1
  • Head tank
:  Stainless steel
  • Pump
:  1
  • End tank
:  Stainless steel
  • Sluice gate
:  Stainless steel, rack and pinion type, built in at downstream end of the channel
  • Flow measurement
:  Water meter with stop watch.
  • Power supply

:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH: 100 x 700 x 160 cm
  • Net Weight:  Approx. 620 kg
  • HF515AS

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HF515-019
Stainless steel vernier hook and point gauge 300 mm x 0.05 mm reading
  • HF515-019A
Stainless steel hook and point gauge 300 mm x 0.5 mm scale
  • HF515-020
Basic weir plate with stainless steel 60˚ V notch and rectangular notch weir attachment
  • HF515-022
Sharp crested weir
  • HF515-023
Broad crested weir, sharp edges
  • HF515-023A
Round edge attachment for HF515-023
  • HF515-024
Crump weir
  • HF510-025
Trapezoidal weir
  • HF515-030
Ogee weir consisting of base profile unit with both upstream and downstream pressure tappings and manometer board
  • HF515-031

Dam spillway consisting of base profile unit with different interchangeable downstream sections:

-  Toe, ski jump, piers and pegs, gravel box, or stop logs

  • HF515-033
Syphon spillway made from clear acrylic and PVC
  • HF515-034
Bridge pier, round or square
  • HF515-035
Culvert fittings: round or square , horizontal or drop inlet with or without entrance flare
  • HF515-036
Vibration pile
  • HF515-040
Venturi flume made from clear acrylic with stainless steel attachment.
  • HF515-050
Sluice gate, rack and pinion drive with stainless steel attachment
  • HF515-051
Sluice gate, sliding type with stainless steel attachment
  • HF515-052
Radial gate, rack and pinion drive, with stainless steel attachment
  • HF515-060
Pitot tube with manometer board for measurement of flow velocity at various channel actions
  • HF515-061
Current meter
  • HF515-070
Roughened bed, gravel, sand, or corrugated, 1.2 m
  • HF515-080
Wave generator with variable speed geared motor
  • HF515-081
Motorized tilting
  • HF515-082
Absorbing beach, plain, roughened, or permeable, 1.2 m
  • HP010
Flow digital display
  • Other accessories and models can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • HF515AS
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 515 TILTING FLOW CHANNEL, 150 mm wide

Posted on by

     Fluid mechanics > Tilting flow channels

HF 515 TILTING FLOW CHANNEL, 150 mm wide

Enquiry

Video

Download

This is a self contained open channel designed for studying a flow phenomena. It is a service unit to be used with optional accessories and models below.

The channel is of rectangular cross section supported by rectangular steel frame. Side walls are transparent to allow full observation and are supported by adjustable steel brackets to ensure accurate wall alignment.  Tilting can be adjusted by a manual screw jack. A head tank with a stilling baffle provides a smooth flow and water is returned to the storage tank via an end tank. Models are attached to the top edges or bed of the flume by screws. Screw holes at the bed can also be used for pressure tapping to measure pressure loss along the channel length.

Instruction manual is also included.

  • Open channel flow

  • Flow measurement

  • Hydraulic jump

  • Continuity and energy equations

  • Discharge under sluice gate

  • Channel size
 :  150 mm wide, 350 mm high
  • Channel length
 :  5 m (Extended length can be supplied on request.)
  • Tilting adjustment
 :  -1% to +3%
  • Side walls
 : Clear acrylic or tempered glass, with clear vertical scale
  • Channel bed
 :  Stainless steel
  • Water storage tank
 :  1
  • Head tank
 :  Stainless steel
  • Pump
 :  1
  • End tank
 :  Stainless steel
  • Sluice gate
 :  Stainless steel, rack and pinion type, built in at downstream end of the channel
  • Flow measurement
 :  Water meter with stop watch.
  • Power supply
 :  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 100 x 700 x 160 cm
  • Net Weight:  Approx. 620 kg
  • HF515S

Learning Software

to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

  • HF515-019
Stainless steel vernier hook and point gauge 300 mm x 0.05 mm reading
  • HF515-019A
Stainless steel hook and point gauge 300 mm x 0.5 mm scale
  • HF515-020
Basic weir plate with stainless steel 60˚ V notch and rectangular notch weir attachment
  • HF515-022
Sharp crested weir
  • HF515-023
Broad crested weir, sharp edges
  • HF515-023A
Round edge attachment for HF515-023
  • HF515-024
Crump weir
  • HF510-025
Trapezoidal weir
  • HF515-030
Ogee weir consisting of base profile unit with both upstream and downstream pressure tappings and manometer board
  • HF515-031

Dam spillway consisting of base profile unit with different interchangeable downstream sections:

-  Toe, ski jump, piers and pegs, gravel box, or stop logs

  • HF515-033
Syphon spillway made from clear acrylic and PVC
  • HF515-034
Bridge pier, round or square
  • HF515-035
Culvert fittings: round or square , horizontal or drop inlet with or without entrance flare
  • HF515-036
Vibration pile
  • HF515-040
Venturi flume made from clear acrylic with stainless steel attachment.
  • HF515-050
Sluice gate, rack and pinion drive with stainless steel attachment
  • HF515-051
Sluice gate, sliding type with stainless steel attachment
  • HF515-052
Radial gate, rack and pinion drive, with stainless steel attachment
  • HF515-060
Pitot tube with manometer board for measurement of flow velocity at various channel actions
  • HF515-061
Current meter
  • HF515-070
Roughened bed, gravel, sand, or corrugated, 1.2 m
  • HF515-080
Wave generator with variable speed geared motor
  • HF515-081
Motorized tilting
  • HF515-082
Absorbing beach, plain, roughened, or permeable, 1.2 m
  • HP010
Flow digital display
  • Other accessories and models can be supplied on request.
  • Other optional equipment, please contact manufacturer ([email protected])
  • HF515S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS
