MM 343 STATIC AND DYNAMIC BALANCING APPARATUS

Posted on by

Force and Motion Study > MM Series

MM 343 STATIC AND DYNAMIC BALANCING APPARATUS
MM 343

Enquiry

Video

Download

This apparatus is for demonstration of simple balancing techniques.

It consists of a balanced steel shaft mounted on two self-aligned ball bearings on a rigid frame with rubber footings to minimize vibration. Four different balance masses, which can be easily clamped on any position on the shaft are provided.

For static balancing, an extension shaft with a pulley is fitted to one end of the shaft. Two weight containers with a cord are wound around the pulley. Steel balls are then added to one container until the shaft is in equilibrium to determine the maximum moment of each balance mass. An angular scale is attached to the other end of the shaft and a linear scale is attached along the frame parallel to the shaft to measure angular and linear positions of each mass.

For dynamic balancing, the shaft assembly is driven by a fixed speed motor via a belt. In the case of unbalance, the shaft will vibrate and the vibration is absorbed on the rubber footings. A safety guard with transparent front is provided.

Instruction manual is also included.

  • Static balancing of the system using moment polygon.

  • Dynamic balancing of the system by calculating positions of the masses along the shaft and by resolving and taking moments

       about one end of the shaft.

  • Demonstration of a balanced and unbalanced system by actual running of the apparatus.

  • Shaft length
: 200 mm
  • Balance masses
: 4 different weights.
  • Baskets with cord
: 2
  • Steel balls
: 1 lot.
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unpacked) Shipping Dimensions WxLxH: 50 x 110 x 50 cm
  • Net Weight:  Approx. 85 kg
  • MM343-001
: Inverter for speed control, and portable tachometer.
  • MM343S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.



SIMILAR PRODUCTS

MM 340 STATIC AND DYNAMIC BALANCING MACHINE, Computer interface

Posted on by

Force and Motion Study > MM Series

MM 340 STATIC AND DYNAMIC BALANCING MACHINE, Computer interface
MM 340

Enquiry

Video

Download

The machine is used for studying of balancing principles.

A rotor shaft is connected to the motor by a double universal joint and rests on two supports with adjustable distance between supports. Each support holds the shaft in place by three bearings with crest. Two standard rotors and two radially slotted rotors are provided for various cases of balancing. The unbalance forces are picked up by two vibration transducers and converted to digital signals. The speed is adjusted by an inverter and speed signal is provided by a sensor. The magnitude and angle of the unbalance for each plane is analyzed and displayed on a computer (separately supplied). The vibration and speed transducers are removable for field use. A note book computer is recommended for field use but is not included in the scope of supply. A transparent cover is provided for safety.

Instruction manual is also included.

  • Single plane balancing.

  • Two plane balancing.

  • Balancing machine calibration.

  • Single plane field balancing.

  • Two plane field balancing.

  • Balancing bed
: Mild steel, different diameter and length.

     - Balancing bed

: 2
     - Maximum working shaft length: 2
  • Standard rotors:

     - Quantity: 2
  • Slotted rotors:

     - Quantity: 2
  • Balancing weights

    - Calibrated bolts
    - Calibrated washers
    - Calibrated nuts
  • Motor
: 0.37 kW.
  • Speed control
: 0.75 kW, inverter
  • Speed measurement
: Speed sensor
  • Vibration transducers

  • Computer interface unit with software for data display and analysis by computer (separately supplied)

  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unpacked) Shipping Dimensions WxLxH: 50 x 110 x 50 cm
  • Net Weight:  Approx. 85 kg
SIMILAR PRODUCTS

MP 201 SINGLE STAGE AIR COMPRESSOR TEST SET, Air Cooled

Posted on by

Airflow and air compression > Air compressor test sets

MP 201 SINGLE STAGE AIR COMPRESSOR TEST SET, Air Cooled.
MP 201
MP201-2

Enquiry

Video

Download

The test set is for studying the single stage reciprocating air compressor characteristics.
An industrial type compressor is driven via a vee-belt by a motor with an advanced inverter. The air receiver has, safety valves, pressure switch, a drain valve and a discharge valve. The unit is equipped with necessary measuring instruments and is on wheels.
Instruction manual is also included.

  • Compressor characteristics e.g. volumetric efficiency, isothermal efficiency, pressure ratio, temperature ratio.

  • Effect of compressor speed.

  • Compressors:

- Type    : Air-cooled, single stage
- Displacement      : 150 ml or approximate equal
- Maximum working pressure: 7 kg/cm2
  • Air receiver
: Approx. 60 L
  • Measuring instruments

- Pressure: Pressure gauge at compressor outlet
- Air flow rate:  Inlet orifice plate with air box and inclined water manometer
   0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Motor input power : Advanced inverter
- Sensors with digital display: Speed for compressor
 : Temperatures for ambient and outlet air
 : Atmospheric pressure
  • Power supply
: 220V 1Ph 50 Hz. Other power supply is available on request.







  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 135 x 135 cm
  • Net Weight: Approx. 160 kg
  • MP201S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • MP200-030
P-V diagram set consisting of pressure sensor with signal converter and software for demonstration of the diagram on computer.
  • MP201-002A
Motor dynamometer with an inverter, torque and speed digital display instead of advanced inverter for measurement of TRUE input power.
  • MP201-050

Computer Interface (computer not included)

This includes MP201S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),



additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • Other accessories can be supplied on request.

  • Other optional equipment, please contact manufacturer ([email protected])
  • MP201S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

MM 325 Whirling of Shafts Apparatus

Posted on by

Force and Motion Study > MM Series

MM 325 WHIRLING OF SHAFTS APPARATUS
MM 325

Enquiry

Video

Download

For studying the critical rotational speeds on simply loaded of various shafts. It is a self-contained bench mounting. Apparatus includes a DC motor drives the shaft via a flexible coupling. Motor speed can be continuously variable and displayed on a digital readout by a revolution counter. A transparent protective cover and safety rings ensure safe operation. The unit includes the tools need for easy experiment setup.

Instruction manual is also included.

  • Demonstration of basic whirling

  • The effect of end conditions

  • Variation of shaft diameter and supported length

  • Loaded shaft (with mass disc)

  • Eccentric loading

  • Shaft
 : Mild steel, different diameter and length.
  • Mass
 : 1 lot.
  • Measuring tape
 : 1
  • Fixed bearing support
 : 1
  • Free bearing support
 : 1
  • Motor
  • Speed control
  • Power supply
 : 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 65 x 154 x 34 cm
  • Net Weight:  Approx. 52 kg
  • MM325-001
: Stroboscope (separately supplied)
  • MM325S

: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HF 501 SEDIMENT BED AND FLOW VISUALIZATION TANK

Posted on by

fluid mechanics> sediment flow channels

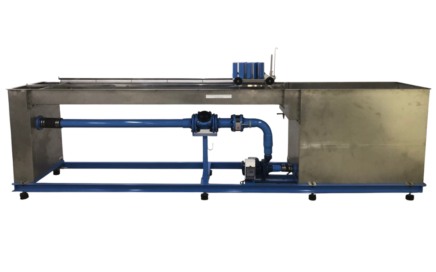

HF 501 SEDIMENT BED AND FLOW VISUALIZATION TANK
HF 501
HF 501-1

Enquiry

Video

Download

The equipment is a self-contained unit designed to study the mobile bed formation and two-dimensional flow observation.

The unit consists of;

      .    Head tank with perforated plate to minimize turbulence and smoothen the flow.

      .    The working section containing sand is for study of the mobile bed formation and to observe two dimensional flow patterns. Wire mesh is provided to contain the sand. Plastics plates are used when two-dimensional flow is to be observed.

      .    The storage tank collects discharge from the working section and acts as a reservoir. An adjustable overshot weir is provided to control the water level in the working section.  The tank also has a sand trap to collect the over-spilled sand.

      .    A pump to draw water from the storage tank and deliver it to the head tank. A water meter with a flow control valve are also supplied.

      .    An instrument carriage traveling on stainless steel tube rails attached to the edges of the working section is designed such that the carriage can travel length wise and crosswise over the working section. A stainless steel vernier hook and point gauge is attached to the carriage to measure the sand profile level.

      Various accessories are supplied to simulate different flow obstructions and diversions. An aluminium dust or equal is supplied for two-dimensional flow observations.

Instruction manual is also included.

  • Sand bed formation under various flow rates

  • Erosion of sand bed around piers or branch canal

  • Two-dimensional flow pattern around pier and branch canal

  • Head tank
:  1
  • Working section
:  Stainless steel, 610 mm wide, 2000 mm long and 150 mm high
  • Instrument carriage with two direction rails.

  • Hook and point gauge
:  1
  • Pump
:  1
  • Flow measurement
:  Water meter with stop watch
  • Accessories

-  Plastic:  Plates
-  Bridge piers:  Rectangles
 :  Rounded ends
 :  Profiled ends
 :  Cylinders
-  Aerofoil:  Symmetry
 :  Asymmetry
-  Sections for flow direction:  Channels
 :  Tees
 :  Angles
 :  Bell month entries


:  Channel walls with different dimension


-  Aluminum dust or equal     :  1 bottle
  • Power supply
:  220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 75 x 395 x 100 cm
  • Net Weight:  Approx. 450 kg
  • HF501S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • HF501-001A
Stainless steel storage tank instead of standard tank
  • HF501-002
Working section extension (2 m long) with water storage tank
  • HP010
Flow digital display

  • Washed sand, 200 kg (Due to export laws and regulations, washed sand cannot be exported. Buyer should source it locally.)

  • HF501S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 401 BASIC HYDROLOGY APPARATUS

Posted on by

FLUID MECHANICS  > Hydrology

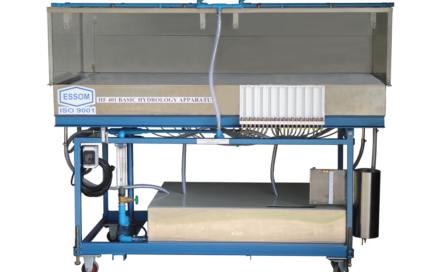

HF 401 BASIC HYDROLOGY APPARATUS
4 HF-401

Enquiry

Video

Download

The apparatus is a self-contained unit for studying basic hydrology.

It consists of a large stainless steel rectangular tank with adjustable tilting mechanism. The tank is filled with a granular medium. Two separate sets of four spray nozzles above the tank simulate rain fall on the catchments. The tank upper walls are transparent. Valve control of the nozzles varies the lag time on the hydrograph to simulate a moving storm.

The compartments at each end of the tank are connected to the catchment area by wire mesh to allow flow between the compartment and the catchment. Two wells with valve control are also provided at the middle of the tank. Twenty pressure tappings along the orthogonal axes of the tank measure water table profile by a manometer bank.

A metal frame supports the tank and houses a storage tank. Water is drawn from the storage tank by a pump and separately supplied to the overhead nozzles and/or the two end compartments via a flow meter and pipings with valve control. Run-off from the catchment is measured by a calibrated rectangular weir or returns directly to the storage tank.

Instruction manual is also included.

  • Investigation of rainfall/runoff relationships for dry, saturated and impermeable catchments of various slopes for surface runoff.

  • Effect of interflow on outflow hydrograph

  • Simulation of multiple and moving storms.

  • Cone of depression for single well and interaction of cones of depression for two adjacent wells.

  • De-watering of excavation sites by use of wells.

  • Flow from a well in a confined aquifer.

  • Demonstration of watersheds for a simulated island with rainfall and well flows.

  • Demonstration of sediment transport and meanders in simulated rivers.

  • Tank

:        Stainless steel 100 cm wide x 200 cm long x 19 cm high


  • Inclination

:        0-3%


  • End compartments
:         2 ea.
  • Wells
:         2 ea.
  • Spray nozzles

:        8 nozzles with separate shutoff valves


  • Flow measurement


- Rain water

- Run off

:         Variable area flow meter

:         Calibrated weir


  • Manometer
:         1 set
  • Upper walls
:         Clear acrylic
  • Accessories

:         1x Rectangular ring

:         1x Circular ring

:         1x Confined aquifer (closed circular ring)

:         1x Cylindrical pier

:         2x Canal banks

:         1x Scraper


  • Power supply
:         220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 112 x 230 x 180 cm
  • Net Weight:  Approx. 250 kg
  • HF401S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.

  • Washed sand, 330 kg (Due to export laws and regulations, washed sand cannot be exported. Buyer should source it locally.)

  • Other optional equipment, please contact manufacturer ([email protected])

  • HF401S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 315 PERMEABILITY APPARATUS

Posted on by

FLUID MECHANICS  > Hydrology

HF 315 PERMEABILITY APPARATUS
HF-315

Enquiry

Video

Download

The apparatus is a self-contained unit for a studying the water flow through a permeable media.

It consists of a rectangular open top tank mounted on a steel frame.  The front panel is of clear tempered glass to allow observation of flow pattern through permeable media. Other walls and bottom are stainless steel. The rear panel has pressure tappings with filters. The tappings are connected to a manometer bank for measurement of head distribution.

Two adjustable overflows near each end of the tank are provided to maintain different constant water levels.

A storage tank and a pump provide a recirculatory water system.

The permeable media is contained in the tank by two removable stainless steel mesh baffles-one on each side.  Plate with seals is provided to simulate sheet piling and dams.  A dye injection system allows visualization of the flow line.

Instruction manual is also included.

  • Flow under a sheet pile

  • Seepage through an earth embankment.

  • Uplift pressure on structures.

  • Determination of flow nets in permeable media.

  • Demonstrate the tile line, the uplift and the lateral impact reduction by drainage, the quicksand and dam stability.

  • Tank dimensions approximately
: 1500 mm long x 100 mm wide x 580 mm high
  • Pressure tapping points
:  14
  • Pump
:  1
  • Water storage tank
:  1
  • Accessories:


- End baffles

- Curved baffle

- Dye injection system

- Manometer

:  2 ea.

:  1 ea.

:  1 set.

:  14 tubes


  • Models:

- Sheet pile :  1
- Stand pipes              :  1 set on horizontal base plate.
 :  1 set vertical wall.
  • Power supply
:  220 V. 1 Ph., 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 70 x 165 x 140 cm
  • Net Weight:  Approx. 200 kg
  • HF315S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.

  • Tank dimensions, number of pressures tapping points and number of manometer tubes and length can be modified on request.

  • Washed sand, 100 kg (Due to export laws and regulations, washed sand cannot be exported. Buyer should source it locally.)

  • Other optional equipment, please contact manufacturer ([email protected])

  • HF311S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 311 GROUND WATER FLOW APPARATUS

Posted on by

FLUID MECHANICS  > Hydrology

HF 311 GROUND WATER FLOW APPARATUS
HF311_2019
HF311 Acc.

Enquiry

Video

Download

This apparatus is for studying the hydrological principles of ground water flow and application of the flow to certain engineering constructions.

The apparatus consists of a square stainless steel sand tank supported on epoxy painted steel frame. Two horizontal water inlet pipe diffusers are installed at both ends of the sand tank. Two vertical outlet wells are installed next but interior to the inlet diffusers. Both inlet and outlet are controlled by valves to produce various water flow tables and flow rates.

Nineteen tappings with special filter at the base of the tank arranged in orthogonal axes are connected to a manometer at the side of the tank to indicate ground water levels. Outside water supply in required.

Instruction manual is also included.

  • Hydraulic profile between inlet and outlet

  • Profile with one outlet

  • Profile with two outlets

  • Profile with concentric cove

  • Profile with square ditch

  • Tank dimensions approximately
:  100 cm long x 50 cm wide x 30 cm deep
  • Inlet pipes and outlet wells
:  2
  • Manometer
:  19 tubes
  • Models

:  Small square, large square, concentric cove





  • Net (unassembled) Shipping Dimensions WxLxH: 85 x 100 x 90 cm
  • Net Weight:  Approx. 70 kg
  • HF311S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.

  • Washed sand, 100 kg (Due to export laws and regulations, washed sand cannot be exported. Buyer should source it locally.)

  • HF311S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 235 FLOW MEASUREMENT TEST SET

Posted on by

FLUID MECHANICS > Other flow measurement and studies

HF 235 FLOW MEASUREMENT TEST SET
HF235
HF-235-3
HF-235-2

Enquiry

Video

Download

This is a bench top self contained water circulating unit for studying the various flow measuring instruments including primary flow measuring devices.

The flow measuring instruments are connected in series and all except the measuring tank are arranged on a water proof panel.

Measurement of flow by a primary flow measuring devices is by coefficient of discharge which is determined from a pressure drop across the device and a flow rate. Flow rate is obtained from a water meter reading and a stop watch. The pressure drop is measured by deferential pressure using manometers. Pressure tapping is by small ball valves with quick connection. Water tanks are behind the panel. Flow rate is varied by a flow control valve.

Instruction manual is also included.

  • Comparison of differential pressure at various flow rates for Venturi meter, orifice meter, Pitot tube, and variable area flow meter.

  • Determination of coefficients of discharge for Venturi meter, orifice meter and Pitot tube and compare the flow rates with those from water meter, variable area flow meter and measuring tank.

  • Pump
:  1
  • Water storage tank
:  1
  • Primary flow measuring devices
:  Clear acrylic

     - Venturi tube

- Orifice plate

- Pitot tube

:  1

:  1

:  1


  • Other flow measuring devices:


- Water meter with stop watch.

- Rotameter

- Measuring tank

:  1

:  1

:  1


  • Measuring instruments:

- Differential pressure measurement:  Water manometer, 8 tubes
  • Power supply

:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH: 60 x 130 x 105 cm
  • Net Weight:  Approx. 70 kg
  • HF235S
Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • HF013
Additional ISA nozzle
  • HF031
Differential pressure digital display
  • HP010
Flow digital display
  • HF034A
Portable differential pressure meter
  • Other flow measuring devices can be supplied on request e.g. vortex, paddle wheel, electromagnetic, ultrasonic etc.
  • HF235-050
Computer Interface (computer not included)
This includes HF235S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)



  • HF235S
: Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 160 WATER HAMMER APPARATUS, Computer Interface

Posted on by

FLUID MECHANICS > Other flow measurement and studies

HF 160 WATER HAMMER APPARATUS, Computer Interface
HF160
HF-160-2

Enquiry

Video

Download

This apparatus is used to study the effects of both pipe surge and water hammer using two separate straight pipes with a constant head tank.

Pipe surge employs a clear acrylic surge shaft to demonstrate gradual velocity change, hence pressure rise and its oscillations by slow valve closing. Water hammer employs a quick closing valve and two pressure sensors-one next to the valve and another further away. Sudden rise in pressure on quick closing valve can be demonstrated on a computer (separately supplied). The equipment is to be used with Hydraulics Bench (separately supplied).

Instruction manual is also included.

  • Pipe surge and oscillations in surge shaft

  • Friction loss between head tank and surge shaft

  • Pressure profiles for water hammer and comparison with theoretical values

  • Determination of the velocity of sound through a fluid in a pipe

  • Constant head tank
:  1 ea.
  • Delivery pipes:

     - Water surge:  Stainless steel pipe and clear acrylic surge shaft with slow closing valve and a flow control valve
     - Water hammer:  Stainless steel pipe with quick closing valve.
  • Pressure measurement
:  Sensors on water hammer pipe
  • Computer interface unit

  • Power supply
:   220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Software for data display and analysis by computer (separately supplied).
  • WiFi feature for data logging and/or real-time display remotely on smartphone (iOS and Android).
  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 375 x 110 cm
  • Net Weight:  Approx. 190 kg
  • HB100
Hydraulics Bench (required accessory)




SIMILAR PRODUCTS
