This equipment is designed to study of centrifugal pump characteristics at various speed. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The pump with motor is mounted on the Hydraulics Bench. An advanced inverter controls speed as well as indicating speed and input power. Pump hoses with half unions are used to connect the pump with the Hydraulics Bench. Pressure gauges are installed at pump suction with half union and also at pump discharge (optional). The pump draws water from the Hydraulics Bench storage tank via a suction hose with a strainer and delivers flow to the Hydraulics Bench measuring tank (HB100) or flow digital display (HB100N).

Instruction manual is also included.

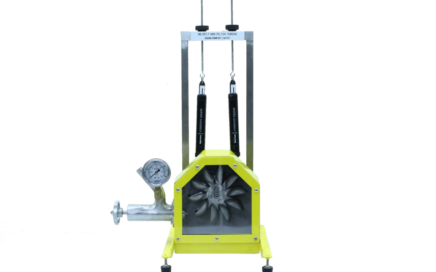

This equipment demonstrates Pelton turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The adjustable turbine nozzle directs water jet to the runner buckets. Inlet pressure is indicated by a pressure gauge (optional). Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.

Instruction manual is also included.

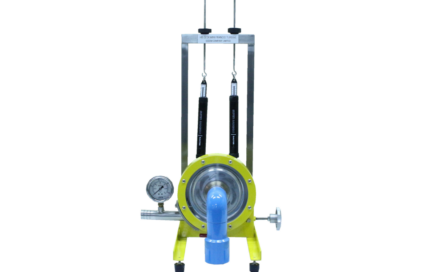

This equipment demonstrates Kaplan turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The turbine employs adjustable guide vanes and redirects water helically to the runner. Inlet pressure is indicated by a pressure gauge. Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench measuring tank.

Instruction manual is also included.

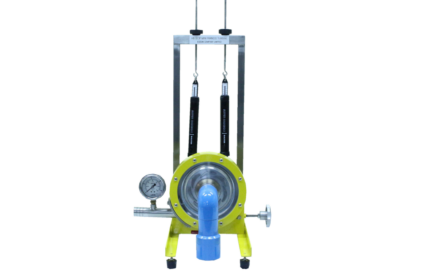

This equipment demonstrates Francis turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The turbine adjustable guide vanes direct water spirally to the runner. Inlet pressure is indicated by a pressure gauge (optional). Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench.

Instruction manual is also included.

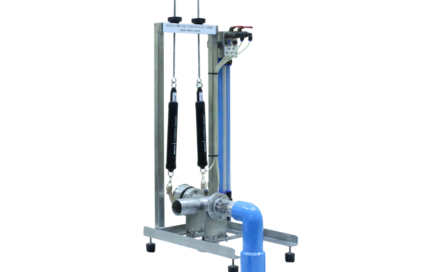

This equipment demonstrates axial flow impulse turbine characteristics i.e. torque, power and efficiency at different speeds for various heads and flow rates of water. It is to be used with Hydraulics Bench i.e. HB100 or HB100N (separately supplied) for a water supply and flow measurement.

The turbine twin nozzles with flow control valves direct water jets to the runner blades. Inlet pressure is indicated by a pressure gauge (optional). Torque is measured by a Prony brake with two spring balances. Speed is indicated on a portable tachometer. Flow rate is measured by the Hydraulics Bench.

Instruction manual is also included.
