ST 317 EQUILIBRIUM OF FORCES

Posted on by

Structure and accessories > Force and moment

ST 317 EQUILIBRIUM OF FORCES

Enquiry

Video

Download

The equipment is used for studying the equilibrium of concurrent and non-concurrent forces in a single plane. It is to be used with ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

Pulleys are fitted around the frame and multi directional forces are produced with nylon cords by weight hangers and weights. A graph paper (not supply) attached to the board is used for recording the lines of forces. Two rings cord for concurrent or non-concurrent forces and a device for marking the lines of the cords are provided.

Instruction manual is also included.

  • Equilibrium of a set of forces acting in a vertical plane

  • Equilibrium of concurrent and non-concurrent forces

  • Force board
:  300 x 500 mm
  • Two rings cord

  • Cord marking pen

  • Angular scale

  • Pulley set
:  1 set
  • Nylon cords
:  6
  • Load hangers
:  6
  • Weights
:  1 lot





  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 60 x 25 cm
  • Net Weight:  Approx. 17 kg
  • ST317S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST317S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 3112 SHEAR FORCE AND BENDING MOMENT

Posted on by

Structure and accessories > Force and moment

ST 3112 SHEAR FORCE AND BENDING MOMENT

Enquiry

Video

Download

This equipment is used for measurement of shear force and bending moment in a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance for measuring the shear force and an underhung spring balance for measuring bending moment are provided. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Visual demonstration of the Shear Force and Bending Moment at a cut section in a beam

  • Variation in bending moment for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values and bending moment diagrams

  • Beam length
 :  700 mm
  • ST111 Round Supports
 :  2
  • Hanger sliders
 :  3
  • Spring balances
 :  2
  • Load hangers
 :  3
  • Weights
 :  1 lot
  • Net (unassembled) Shipping Dimensions WxLxH: 55 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST3112S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST3112-055
Computer Assist (computer not included)
                                  This includes ST3112S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST3112S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 312 SHEAR FORCE

Posted on by

Structure and accessories > Force and moment

ST 312 SHEAR FORCE

Enquiry

Video

Download

This equipment is used for measurement of shear force on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with one part having ball bearings travel on vertical surface of the other part, an overhung spring balance measures the shear force and an underhung spring is provided to resist bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included.

  • Visual demonstration of the shear force at a cut section in a beam

  • Variation in shear force for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring
:  1
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot







  • Net (unassembled) Shipping Dimensions WxLxH: 50 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST312S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST312-055
Computer Assist (computer not included)
                                  This includes ST312S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST312S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 311 BENDING MOMENT

Posted on by

Structure and accessories > Force and moment

ST 311 BENDING MOMENT

Enquiry

Video

Download

This equipment is used for measurement of bending moment on a section of a beam from which comparison with theoretical values can be made. It is to be used with ST305 Universal Base Frame or ST300 Universal Structural Frame (separately supplied) for attachment of the accessories.

The beam has two parts with a ball bearing hinge at the joint. An underhung spring balance holds the hinge in compression, hence resists and determines bending moment. The beam rests on two round supports. Load hangers and weights slide along the beam.

Instruction manual is also included

  • Visual demonstration of the bending moment at a cut section in a beam

  • Variation in bending moment for variations in load, load position and load arrangement

  • Comparison of experimental results with theoretical values and bending moment diagrams

  • Beam length
:  700 mm
  • ST111 Round Supports
:  2
  • Spring balance
:  1
  • Load hangers
:  3
  • Weights
:  1 lot











  • Net (unassembled) Shipping Dimensions WxLxH: 125 x 85 x 15 cm
  • Net Weight:  Approx. 6 kg
  • ST311S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • ST311-055
Computer Assist (computer not included)
                                  This includes ST311S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST311S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 400 UNIVERSAL TEST FRAME, 300kN

Posted on by

Structure and accessories >

ST 400 UNIVERSAL TEST FRAME, 300kN

Enquiry

Video

Download

The universal test frame is used for studying loading experiments on steel work or civil engineering structure such as girder, beam, truss etc. where actual 1:1 loading can be made. The structure is to be provided by the user.

It consists of twin frame with intermediate space to permit structure longer than the frame opening to be tested. The frame is made of channels joined together by high strength bolts. Two cross bearers under the columns support the frame and rest on four anti vibration leveling feet. The frame is to be assembled at site.

Loading is by hydraulic jacks on traveling carriages. Accessories for loading, attachment of dial gauges, and stabilization of the experiment plane frame are provided.

Instruction manual is also included.

  • Verification of structure deflection under loads.
  • Main frame
:  Twin frame of channel
  • Loading capacity

-   Three point bending:  300kN
-   Four point bending:  2x 200kN
  • Frame opening
:  3.5 x 1.65 m
  • Maximum distance between two loading points
:  5.25 m
  • Traveling carriages
:  2
  • Hydraulic pump
:  With mobile table and 4 hoses with self-sealing coupling
  • Hydraulic jacks

  • Measuring instruments
:  2
- Force gauges:  2
- ST 131 Dial Indicators:  3
  • Power supply
:  220 V, 1 Ph, 50Hz. Other power supply is available on request.
  • Accessories include cross bearers, thick plates, half round bearings, full round bearings, c-clamps, cross beams for holding dial   gauge or truss member in place.
  • Net (unassembled) Shipping Dimensions WxLxH: 125 x 560 x 185 cm
  • Net Weight:  Approx. 2,500 kg
  • ST400S
Learning Software
                                to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • A-frame with 5 MT hoist for heavy beam installation.
  • 30 MT load digital display.
  • ST400-050
Computer Interface (computer not included)
                                 This includes ST400S and significant sensor(s) with data acquisition (capture, display, graph and/or data export) instead of analog measuring instrument(s), additional software function for real-time data logging with computer assist unit and WiFi feature for data logging and display remotely on smartphone (iOS and Android)
  • ST400S
Learning Software
                                 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

ST 305 UNIVERSAL BASE FRAME

Posted on by

Structure and accessories >

ST 305 UNIVERSAL BASE FRAME

Enquiry

Video

Download

This is a bench top base frame made from 30 x 30 mm aluminum profile with stainless steel support and adjustable footings. The base is a twin member on which optional structural models and accessories are attached. This frame is more economical than ST300 Universal Structural Frame, and is intended to replace ST300 for many experiments in structural mechanics where underhung and side hung are not required.

  • Dimensions WxLxH
:   300 x 950 x 100 mm
  • Twin member space
:   30 mm
  • Accessory
:   Measuring tape






  • Net (unassembled) Shipping Dimensions WxLxH:6 x 95 x 10 cm
  • Net Weight:  Approx. 4 kg








This software can accommodate both manually key-in inputs and inputs from computer interface unit. The software includes test data table, formula and calculated data.



SIMILAR PRODUCTS

ST 300 UNIVERSAL STRUCTURAL FRAME

Posted on by

Structure and accessories >

ST 300 UNIVERSAL STRUCTURAL FRAME

Enquiry

Video

Download

This is a basic bench top type twin rectangular frame of 30 x 60 mm aluminum profile with adjustable footings. Optional structural models and accessories are attached to the twin frame by clamps to support specific experiments in the field of structural mechanics especially where underhung and sidehung weights are required.

  • Dimensions WxLxH
 :   450 x 970 x 980 mm
  • Twin member space
 :   30 mm
  • Window opening
 :   850 x 650 mm
  • Maximum load capacity
 :   2.5 kN
  • Accessory
 :   Measuring tape
  • Net (unassembled) Shipping Dimensions WxLxH: 15 x 90 x 15 cm
  • Net Weight:  Approx. 14 kg













SIMILAR PRODUCTS

CF 100 LIQUID SEDIMENTATION APPARATUS

Posted on by

Chemical engineering and food technology > Chemical engineering

CF 100 LIQUID SEDIMENTATION APPARATUS

Enquiry

Video

Download

The apparatus is designed to study the settling characteristics and particle sizes of suspended solid.

Five transparent glass sediment tubes are mounted vertically on a rigid frame. The rear panel is translucent with LED backlight. Scales are provided on the tubes. The tubes can be removed for washing, filling or mixing of solid particles. Sedimentation rate is observed using a stopwatch.

Instruction manual is also included.

  • Settling rate curve.

  • Effect of particle size distribution.

  • Effect of suspension height on sedimentation rates.

  • Effect of concentration on sedimentation rate.

  • Effect of flocculent.

  • Glass tubes
: 5
  • Stop watch
: 1
  • Beakers
: 3
  •  Lamps
: 4
  • Specific gravity bottle
: 1
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH:  40x 70 x 115 cm
  • Net Weight:  Approx. 36 kg
  • SP261
Triple beam balance.
  • HF112S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

MM 321 UNIVERSAL VIBRATION APPARATUS, Computer Interface

Posted on by

Machine Elements and Theory of Machine > Vibration > MM Series

MM 321 UNIVERSAL VIBRATION APPARATUS, Computer Interface

Enquiry

Video

Download

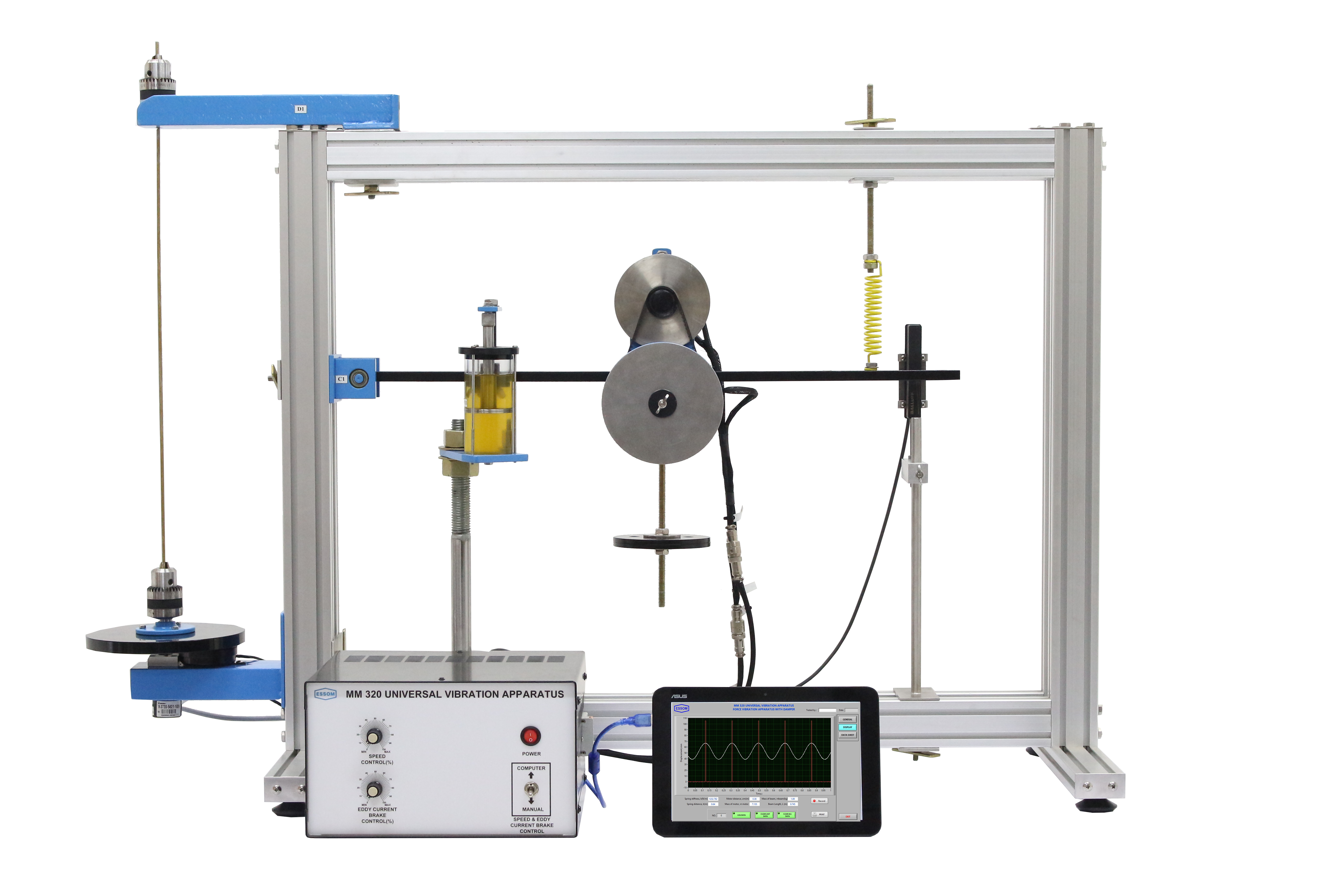

This apparatus is used for studying a wide range of vibration experiments namely, pendulums, mass-spring, free and forced vibration, lateral vibration, torsional vibration, vibration with and without damping.

The apparatus consists of a basic unit for use with optional accessories for individual experiment.

Instruction manual and software for data display and analysis are supplied.

  • Simple pendulums study
  • Compound pendulum study
  • Kater pendulum study
  • Bifilar and Trifilar suspension study
  • Center of percussion study
  • Mass-Spring system study
  • Determination of center of percussion
  • Torsional vibration study
  • Lateral Vibration study
  • Force vibration
  • Free vibration
  • Damped vibration
  • Damping ratio
  • Demonstrate vibration absorption
  • Study of frequency ratio vs amplitude and phase angle.

The following experiments are available. Only one experiment at a time can be carried out on the MM320-001 Floor Standing Unit, MM320-005 Bench Top Unit or MM 320-007 Pendulum Unit.

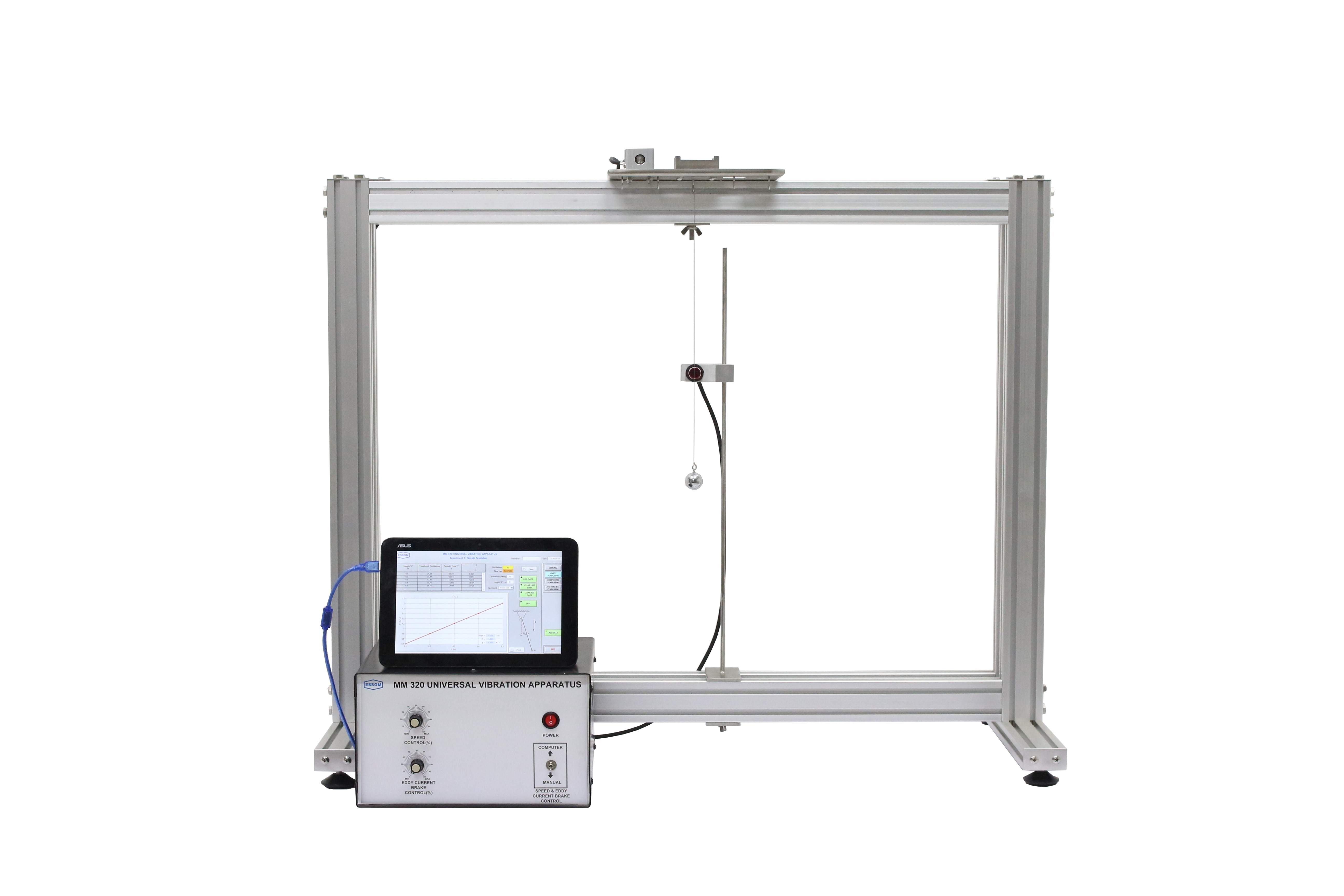

MM 321-011 Simple Pendulums

MM 321-013 Compound Pendulum
MM 321-014 Reversible Pendulum (Kater Pendulum)
MM 321-012 Bifilar and Trifilar Suspension.

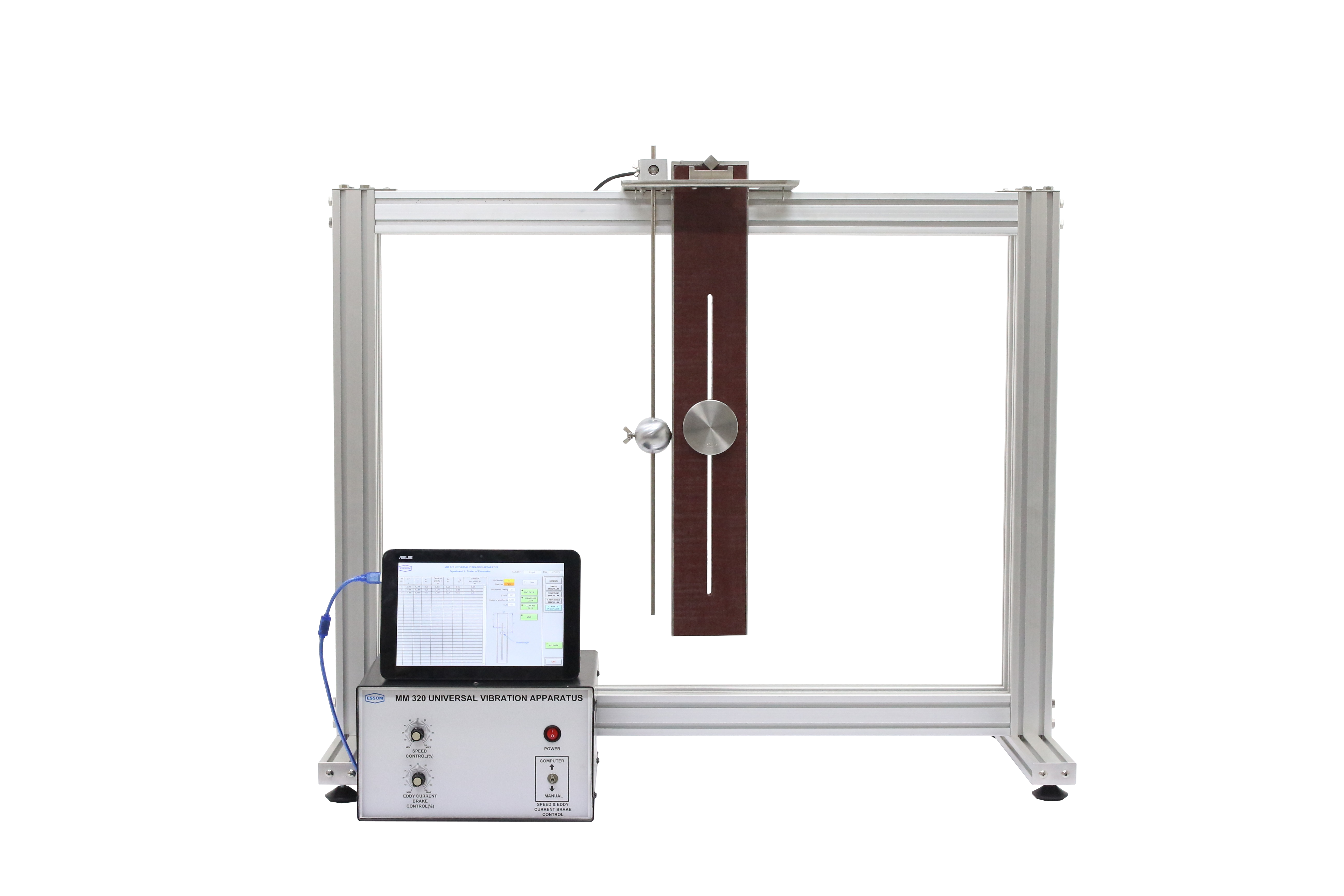

MM 321-015 Center of Percussion.
MM 321-020 Mass-spring Apparatus.
MM 321-030 Free Vibration for a Beam and Spring.

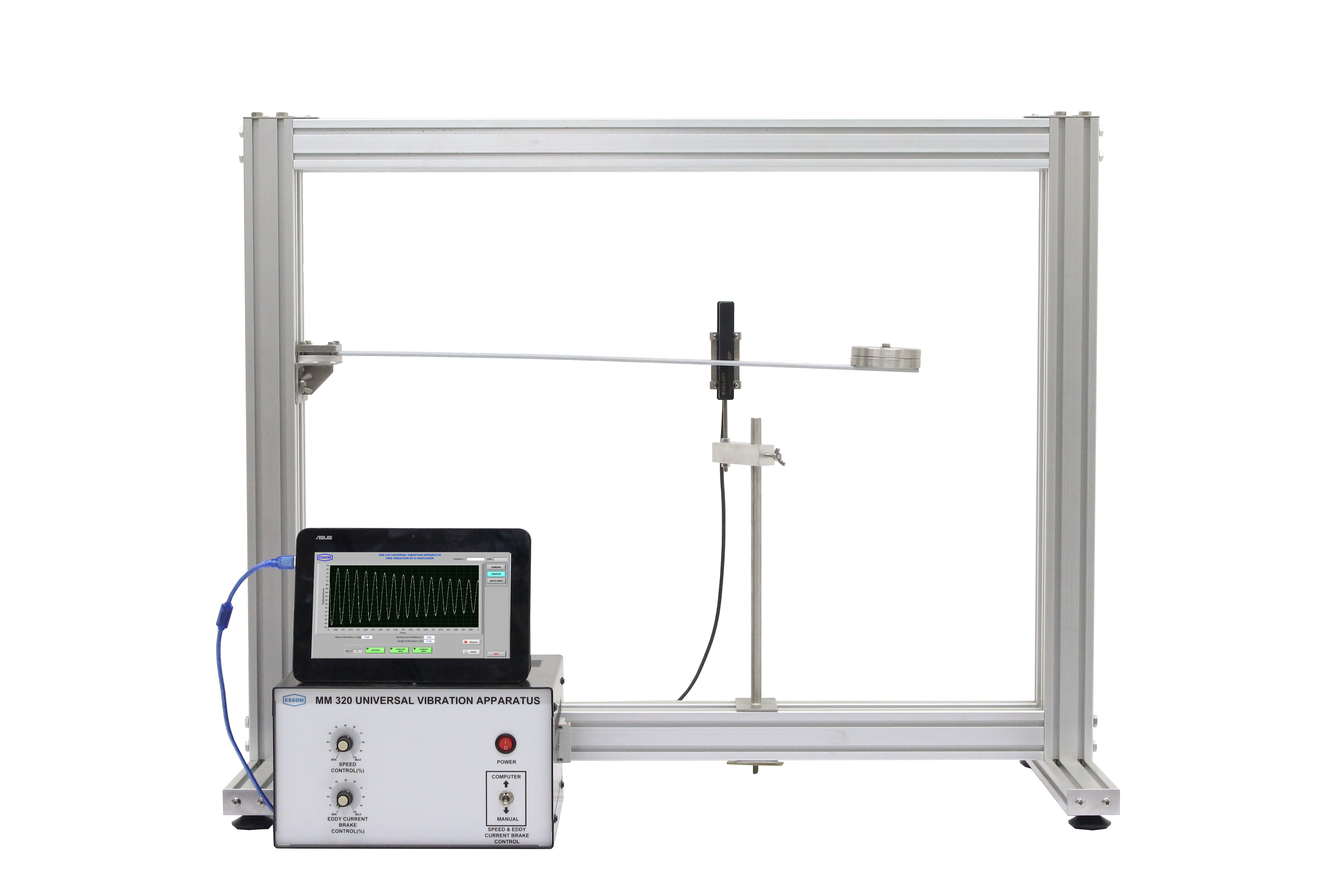

MM 321-031 Free Vibration of a Canteliver.

MM 321-032 Forced Vibration Apparatus.
MM 321-040 Lateral Vibration Apparatus.
MM 321-050 Undamped Vibration Absorber.

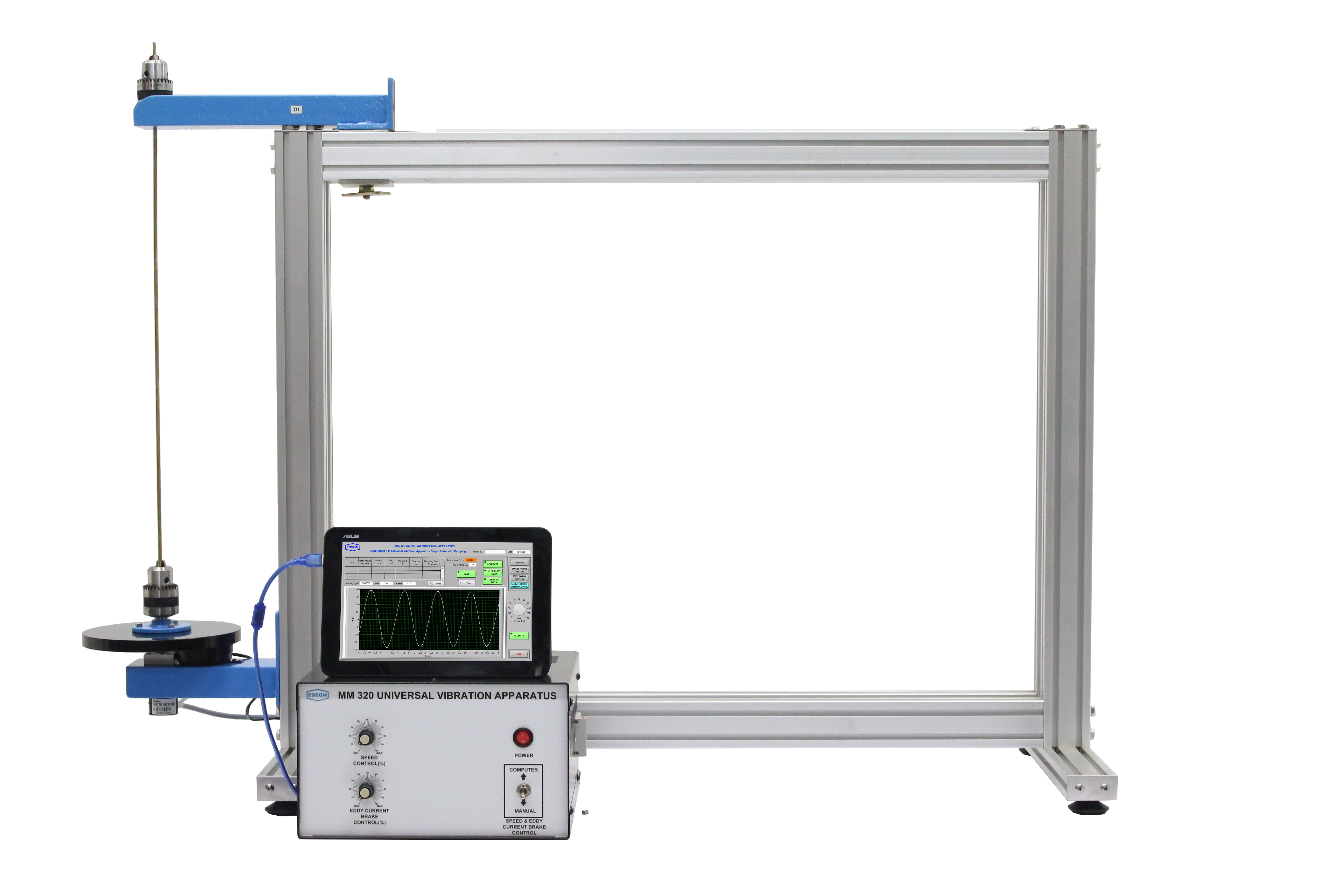

MM 321-060 Torsional Vibration Apparatus, single rotor system.

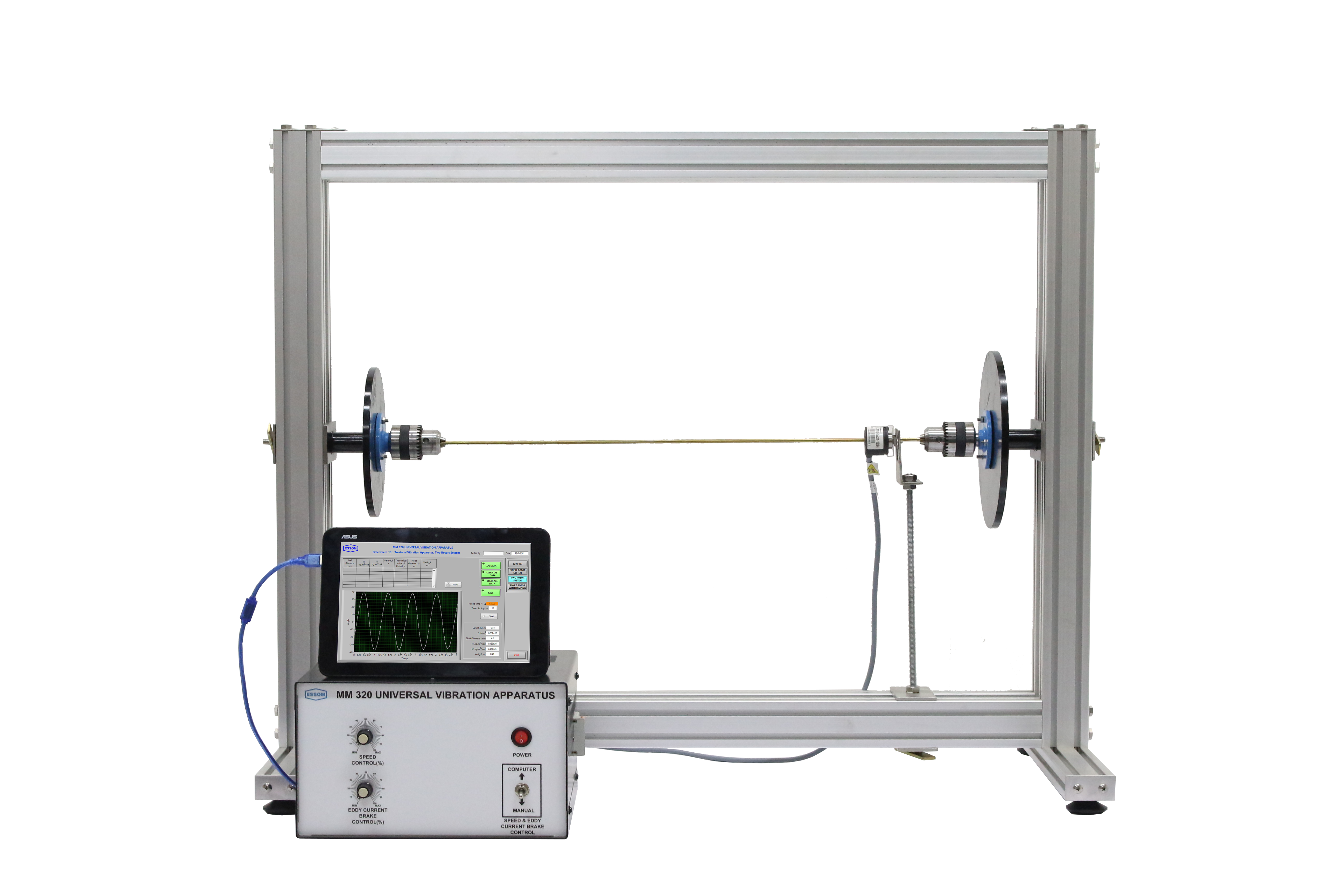

MM 321-061 Torsional Vibration Apparatus, two rotors system.
  • MM 320-001 Floor Standing Basic Unit

This is a floor standing 30 x 60 mm aluminium profile twin frame on wheels
with adjustable footings and a cabinet for housing optional accessories.
The unit can be used for all vibration experiments.

- Window opening: 900 x 650 mm
- Net (unpacked) shipping dimensions W x L x H: 88 x 107 x 171 cm
- Net weight: 68 kg

  • MM 320-005 Bench Top Basic Unit

This is a bench top 30 x 60 mm aluminium profile twin frame with adjustable footings. The unit can be used for all vibration experiments except MM320-062.

- Window opening: 900 x 650 mm
- Net (unpacked) shipping dimensions W x L x H: 36 x 107 x 91 cm
- Net weight: 22 kg

  • MM 320-007 Pendulum Basic Unit

This is a bench top aluminium profile single column of 30 x 60 mm aluminium profile with adjustable footings and top attachment for pendulum experiments.

- Net (unpacked) shipping dimensions W x L x H31 x 56 x 15 cm
- Net weight: 4 kg

  • Each experiment requires several accessories to be used with the basic unit or the basic frame. Only one experiment at a time can be carried out. If several experiments are required, duplicated accessories need not be supplied.

   Details of accessories are available on request.

  • Power supply:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
SIMILAR PRODUCTS

SP 114 SURFACE TENSION APPARATUS

Posted on by

FLUID MECHANICS > Turbine test set

SP 114 SURFACE TENSION APPARATUS

Enquiry

Video

Download

This apparatus is designed for measuring the surface tension of liquids. A horizontal ring is suspended on load cell and immersed in a liquid in a dish which is put on an adjustable height support stand. The force is measured and shown on a digital display.

Instruction manual is also included.

Measurement of Surface tension

  • Measuring ring
:  2 different diameter sharp edge plastic rings with suspension cords
  • Dish
:  150 mm diameter
  • Support stand
:  Adjustable height
  • Stand
:  Stainless steel with adjustable footings and bull’s eye level
  • Force measurement
:  Digital display in Millinewton or gram
- Measuring range:  200 mN with 1 mN resolution or 20g with 0.1g resolution
- Zero compensation (Tare):  Manual
  • Power supply
:  220V, 1Ph, 50Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 20 x 30 x 45 cm
  • Net Weight:  Approx. 3.5 kg









SIMILAR PRODUCTS
