CF 100 LIQUID SEDIMENTATION APPARATUS

Posted on by

Chemical engineering and food technology > Chemical engineering

CF 100 LIQUID SEDIMENTATION APPARATUS
CF100

Enquiry

Video

Download

The apparatus is designed to study the settling characteristics and particle sizes of suspended solid.

Five transparent glass sediment tubes are mounted vertically on a rigid frame. The rear panel is translucent with LED backlight. Scales are provided on the tubes. The tubes can be removed for washing, filling or mixing of solid particles. Sedimentation rate is observed using a stopwatch.

Instruction manual is also included.

  • Settling rate curve.

  • Effect of particle size distribution.

  • Effect of suspension height on sedimentation rates.

  • Effect of concentration on sedimentation rate.

  • Effect of flocculent.

  • Glass tubes
: 5
  • Stop watch
: 1
  • Beakers
: 3
  •  Lamps
: 4
  • Specific gravity bottle
: 1
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH:  40x 70 x 115 cm
  • Net Weight:  Approx. 36 kg
  • SP261
Triple beam balance.
  • HF112S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

MM 321 UNIVERSAL VIBRATION APPARATUS, Computer Interface

Posted on by

Machine Elements and Theory of Machine > Vibration > MM Series

MM 321 UNIVERSAL VIBRATION APPARATUS, Computer Interface
1-MM321-1
MM321-014 Reverse (Kater) Pendulum
MM321-015 Center of Percussion
MM321-020 Mass Spring Apparatus
MM321-030 Free vibration for a beam and spring
MM321-031-Free vibration of a cantilever
MM321-032 Forced vibration Apparatus
MM321-040 Lateral Vibration Apparatus
MM321-050 Undamped Vibration Absorber
MM321-060 - torsional vibration (single rotor) edit stopper
MM321-061- torsional vibration (two rotors system)
MM321-011 Simple pendulum
MM321-012 Bifilar suspension
MM321-012 Trifilar suspension
MM321-013 Compound Pendulum

Enquiry

Video

Download

This apparatus is used for studying a wide range of vibration experiments namely, pendulums, mass-spring, free and forced vibration, lateral vibration, torsional vibration, vibration with and without damping.

The apparatus consists of a basic unit for use with optional accessories for individual experiment.

Instruction manual and software for data display and analysis are supplied.

  • Simple pendulums study
  • Compound pendulum study
  • Kater pendulum study
  • Bifilar and Trifilar suspension study
  • Center of percussion study
  • Mass-Spring system study
  • Determination of center of percussion
  • Torsional vibration study
  • Lateral Vibration study
  • Force vibration
  • Free vibration
  • Damped vibration
  • Damping ratio
  • Demonstrate vibration absorption
  • Study of frequency ratio vs amplitude and phase angle.

The following experiments are available. Only one experiment at a time can be carried out on the MM320-001 Floor Standing Unit, MM320-005 Bench Top Unit or MM 320-007 Pendulum Unit.

MM 321-011 Simple Pendulums

MM 321-013 Compound Pendulum
MM 321-014 Reversible Pendulum (Kater Pendulum)
MM 321-012 Bifilar and Trifilar Suspension.
MM 321-015 Center of Percussion.
MM 321-020 Mass-spring Apparatus.
MM 321-030 Free Vibration for a Beam and Spring.

MM 321-031 Free Vibration of a Canteliver.

MM 321-032 Forced Vibration Apparatus.
MM 321-040 Lateral Vibration Apparatus.
MM 321-050 Undamped Vibration Absorber.
MM 321-060 Torsional Vibration Apparatus, single rotor system.
MM 321-061 Torsional Vibration Apparatus, two rotors system.
  • MM 320-001 Floor Standing Basic Unit

This is a floor standing 30 x 60 mm aluminium profile twin frame on wheels
with adjustable footings and a cabinet for housing optional accessories.
The unit can be used for all vibration experiments.

- Window opening: 900 x 650 mm
- Net (unpacked) shipping dimensions W x L x H: 88 x 107 x 171 cm
- Net weight: 68 kg

  • MM 320-005 Bench Top Basic Unit

This is a bench top 30 x 60 mm aluminium profile twin frame with adjustable footings. The unit can be used for all vibration experiments except MM320-062.

- Window opening: 900 x 650 mm
- Net (unpacked) shipping dimensions W x L x H: 36 x 107 x 91 cm
- Net weight: 22 kg

  • MM 320-007 Pendulum Basic Unit

This is a bench top aluminium profile single column of 30 x 60 mm aluminium profile with adjustable footings and top attachment for pendulum experiments.

- Net (unpacked) shipping dimensions W x L x H31 x 56 x 15 cm
- Net weight: 4 kg

  • Each experiment requires several accessories to be used with the basic unit or the basic frame. Only one experiment at a time can be carried out. If several experiments are required, duplicated accessories need not be supplied.

   Details of accessories are available on request.

  • Power supply:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
SIMILAR PRODUCTS

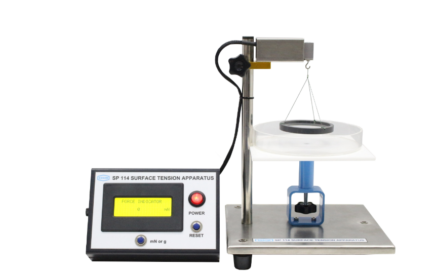

SP 114 SURFACE TENSION APPARATUS

Posted on by

FLUID MECHANICS > Turbine test set

SP 114 SURFACE TENSION APPARATUS
SP114

Enquiry

Video

Download

This apparatus is designed for measuring the surface tension of liquids. A horizontal ring is suspended on load cell and immersed in a liquid in a dish which is put on an adjustable height support stand. The force is measured and shown on a digital display.

Instruction manual is also included.

Measurement of Surface tension

  • Measuring ring
:  2 different diameter sharp edge plastic rings with suspension cords
  • Dish
:  150 mm diameter
  • Support stand
:  Adjustable height
  • Stand
:  Stainless steel with adjustable footings and bull’s eye level
  • Force measurement
:  Digital display in Millinewton or gram
- Measuring range:  200 mN with 1 mN resolution or 20g with 0.1g resolution
- Zero compensation (Tare):  Manual
  • Power supply
:  220V, 1Ph, 50Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 20 x 30 x 45 cm
  • Net Weight:  Approx. 3.5 kg









SIMILAR PRODUCTS

HT 703 MULTI TURBINE TEST SET

Posted on by

FLUID MECHANICS > Turbine test set

HT 703 MULTI TURBINE TEST SET
HT703
HT703-2

Enquiry

Video

Download

This is a self contained set of three different types of turbine namely-Pelton, Francis, Cross Flow, designed for studying the turbine characteristics under various flow rates and heads.

The unit consists of a pump and a storage tank, turbine units connected in parallel, a dynamometer for each turbine, and measuring instruments. The unit is on wheels.

Instruction manual is also included.

Each turbine can be tested on the following:

  • Torque vs speed at various heads and flow rates
  • Power output vs speed for various heads and flow rates
  • Efficiency vs speed for a given head and flow rate
  • Racing characteristics.
  • Pelton turbine

- Construction:  Stainless steel runner
 :  Stainless steel casing with transparent window
- Ratings:  Maximum power over 400 W
  • Francis turbine

- Construction:  Bronze runner
 : Non corrosion metal casing with adjustable guide vanes and transparent window to observe guide vane position.
- Ratings:  Maximum power over 400 W
  • Cross Flow turbine:

-  Construction:  Stainless steel runner
 :  Stainless steel casing with transparent window
-  Ratings:  Maximum power over 400 W
  • Pump ratings

-  Motor:  2.2 kW
  • Water storage tank
:  1
  • Dynamometer
:  Water cooled mechanical brake absorber with anti splashing system.
  • Measuring instruments
:  Pressure gauges at turbine inlets
-  Torques

:  Speed for each turbine

-  Pressures:  Flow rate
-  Sensors with digital display:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.

  • Power supply


  • Net (unassembled) Shipping Dimensions WxLxH:

    96 x 280 x 150 cm

  • Net Weight:  Approx. 380 kg
  • HT703S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HD160SA
Water brake absorber instead of mechanical brake absorber
  • HP003
Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power. Hence pump efficiency at various speeds can be determined.
  • HP011
Additional pressure digital display
  • HT010L
Electric generator with voltage and current digital display and lamp loads
  • HT703-603
Kaplan turbine unit capable of generating over 400 W of brake power, metal runner, non- corrosion metal casing with adjustable guide vanes, transparent window and runner section, water brake absorber, spring balance, speed sensor and pressure gauge.

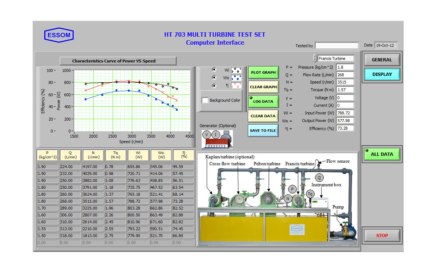

  • HT703-050
Computer Interface (computer not included)
 This includes HT703S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT703-060
Computer Control (computer not included)
 This includes HT 703-050 with the additional accessories for control function and additional software function for equipment controls by computer
 -  Flow and load control motors
                                                - Additional software function for equipment controls by computer
  • HT703S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HT 702 COMPACT PELTON/FRANCIS TURBINE TEST SET

Posted on by

FLUID MECHANICS > Turbine test set

HT 702 COMPACT PELTON/FRANCIS TURBINE TEST SET
HT702
HT702-2

Enquiry

Video

Download

This is a self contained set of Pelton and Francis turbines, designed for studying the turbine characteristics under various flow rates and heads.

The unit consists of a pump, a storage tank, a Pelton and a Francis turbine connected in parallel, a dynamometer for each turbine, and measuring instruments. The unit is on adjustable footings.

Instruction manual is also included.

Each turbine can be tested on the following:

  • Torque vs speed at various heads and flow rates
  • Power output vs speed for various heads and flow rates
  • Efficiency vs speed for a given head and flow rate
  • Racing characteristics.
  • Pelton turbine

- Construction:  Stainless steel runner
 :  Stainless steel casing with transparent window
- Ratings:  Maximum power 400 W
  • Francis turbine

- Construction:  Bronze runner
 :  Non-corrosion metal casing with adjustable guide vanes and transparent window
- Ratings:  Maximum power over 400 W
  • Pump ratings

- Motor:  2.2 kW
  • Water storage tank
:  1
  • Dynamometer
:  Water cooled mechanical brake absorber with anti splashing system
  • Measuring instruments

- Torque:  Spring balance
- Pressure:  Pressure gauges at turbine inlets
- Sensors with digital display:  Flow rate and speeds
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 110 x 110 cm
  • Net Weight:  Approx. 90 kg
  • HT702S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HD160SA
Water brake absorber instead of mechanical brake absorber
  • HP003
Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power. Hence pump efficiency at various speeds can be determined.
  • HP011-3
Additional pressure digital display
  • HT010L
Electric generator with voltage and current digital display and lamp loads
  • HT702-050
Computer Interface (computer not included)
 This includes HT702S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT702-060
Computer Control (computer not included)
                                        This includes HT 702-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT702S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HT 701 MINI PELTON/FRANCIS TURBINE TEST SET

Posted on by

FLUID MECHANICS > Turbine test set

HT 701 MINI PELTON/FRANCIS TURBINE TEST SET
HT701
HT701-2

Enquiry

Video

Download

This is a self contained bench top set of Pelton and Francis turbines, designed for studying the turbine characteristics under various flow rates and heads.

The unit consists of a pump, a storage tank on a steel base, a mini Pelton and a mini Francis turbine connected in parallel, a dynamometer for each turbine, and measuring instruments.

Instruction manual is also included.

Each turbine can be tested on the following:

  • Torque vs speed at various heads and flow rates
  • Power output vs speed for various heads and flow rates
  • Efficiency vs speed for a given head and flow rate
  • Racing characteristics.
  • Mini Pelton turbine:

- Construction

:  Stainless steel runner shaft and casing with transparent window

- Ratings:  Maximum power over 40 W
  • Mini Francis turbine:

- Construction:  Bronze runner
 :  Adjustable guide vanes. Non corrosion metal casing with transparent window to observe guide vane position
- Ratings:  Maximum power over 25 W
  • Pump ratings

- Motor   :  0.55 kW
  • Water storage tank
:  1
  • Dynamometer
:  Mechanical brake
  • Measuring instruments

- Torques:  Spring balances
- Speeds:  Portable tachometer
- Flow rate:  Water meter and stop watch
- Pressures:  Pressure gauges at turbine inlets
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 45 x 110 x 110 cm
  • Net Weight:  Approx. 90 kg
  • HT701S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HP0089
A pressure gauge at pump inlet for pump pressure vs flow rate curve
  • HT010R
Electric generator with voltage and current digital display and resistive load
  • HT701-601
Mini Kaplan turbine unit
 - Maximum power over 15 W
 - Metal runner, adjustable guide vanes
 - Stainless steel shaft
 - Non-corrosion metal casing with transparent window
 - Storage tank, plastics.
  • HT701-501AI
Mini Axial flow impulse turbine unit
 - Maximum power over 25 W
 - Metal runner
 - Stainless steel twin nozzles
 - Stainless steel shaft
 - Stainless steel casing with transparent discharge window
 - 30 L storage tank, plastics.
  • HT701-050
Computer Interface (computer not included)
 This includes HT701S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT701-060
Computer Control (computer not included)
                                                This includes HT 701-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT701S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HT610 KAPLAN TURBINE TEST SET

Posted on by

FLUID MECHANICS > Turbine test set

HT610 KAPLAN TURBINE TEST SET

Enquiry

Video

Download

The set is designed for studying the Kaplan turbine characteristics under various flow rates and heads.

The unit consists of a storage tank, a pump, a turbine, a dynamometer, a generator, and measuring instruments. Direct coupling generator with clutch is provided to simulate actual turbine generator operation. Power output at various flow rates, heads and speeds can be measured by either dynamometer or generator output. The adjustable guide vanes direct water helically to the runner.

The unit is on wheels.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Overall turbine generator efficiency

  • Racing characteristics

  • Turbine

- Construction:  Fixed blade stainless steel runner
 :  Bronze casing with 10 adjustable guide vanes and transparent window to observe runner and guide vane position
 :  Stainless steel shaft with mechanical seal
-  Turbine ratings:  Maximum power over 1500 W of mechanical output
 :  Maximum power approx. 3500 W of electrical output
  • Motor
:  7.5 kW
  • Generator
:  1.5 kW, 220 V, 1 Ph, 50 Hz.
  • Electrical load
:  Lamp bank
  • Water storage tank
:  1
  • Dynamometer
:  Water cooled stainless steel mechanical brake with anti-splashing system
  • Measuring instruments

-  Torque:  Spring balance
-  Pressure:  Pressure gauge
-  Sensors with digital display:  Voltage and current for electrical power output
 :  Flow rate and speed
  • Power supply
:  380 V, 3 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 110 x 180 x 175 cm
  • Net Weight:  Approx. 450 kg
  • HT610S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HP008
Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power. Hence pump efficiency at various speeds can be determined.
  • HD200DA
Water brake absorber dynamometer instead of mechanical brake dynamometer. In this case, connection to the turbine with generator is by pulleys or direct coupling to the turbine without the generator.
  • HT610-050
Computer Interface (computer not included)
 This includes HT610S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT610-060
Computer Control (computer not included)
                                      This includes HT 610-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT610S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HT 601 MINI KAPLAN TURBINE TEST SET

Posted on by

FLUID MECHANICS > Turbine test set

HT 601 MINI KAPLAN TURBINE TEST SET

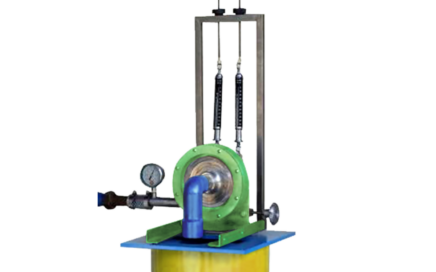

HT 601

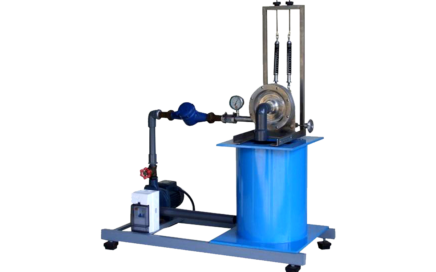

HT601-1
HT601-2

Enquiry

Video

Download

This is a self-contained bench top set for studying the Kaplan turbine characteristics under various flow rates and heads.

The unit consists of a storage tank on a steel base, a pump, a mini Kaplan turbine, a dynamometer, and measuring instruments. The adjustable guide vanes direct water helically to the runner.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine

- Construction: Metal runner with adjustable guide vanes
 : Non-corrosion metal casing with transparent window
- Ratings: Maximum power over 15 W
  • Pump ratings

- Motor   :  0.55 kW
  • Water storage tank
:  1
  • Dynamometer
: Mechanical brake
  • Measuring instruments

-  Torque:  Spring balance
-  Speed:  Portable tachometer
-  Flow:  Water meter and stop watch
-  Pressure:  Pressure gauge
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.


  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 110 x 85 cm
  • Net Weight:  Approx. 70 kg
  • HT6031
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HP009
Pressure gauge at pump inlet for pump pressure vs flow rate curve
  • HT010R
Electric generator with voltage and current digital display and resistive load.
  • HT601-050

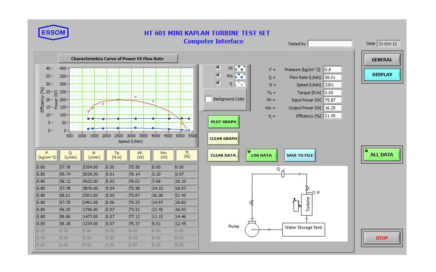

Computer Interface (computer not included)
 This includes HT601S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT601-060
Computer Control (computer not included)
                                    This includes HT 601-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT601S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HT 603 COMPACT KAPLAN TURBINE TEST SET

Posted on by

FLUID MECHANICS > Turbine test set

HT 603 COMPACT KAPLAN TURBINE TEST SET

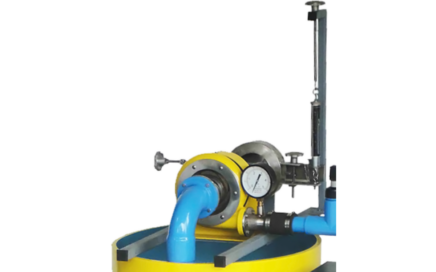

HT 603

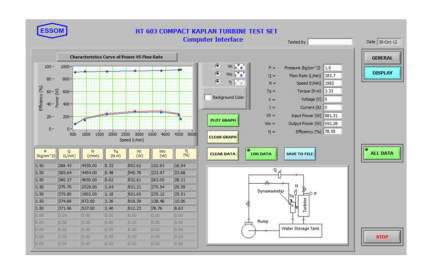

HT603
HT603-2

Enquiry

Video

Download

This is a self contained bench top set for studying the Kaplan turbine characteristics under various flow rates and heads.

The unit consists of a storage tank, a pump, a Kaplan turbine, a dynamometer, and measuring instruments. The adjustable guide vanes direct water helically to the runner.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine

- Construction:  Fixed blade metal runner
 :  Non corrosion metal casing with adjustable guide vanes with transparent window for observation of runner and guide vane position
- Ratings: Over 400W of brake power
  • Pump ratings :

- Motor   :  2.2 kW
  • Water storage tank
:  1
  • Dynamometer
:  Water cooled mechanical brake absorber with anti splashing system
  • Measuring instruments

- Torque:  Spring balance
 - Pressure:  Pressure gauge
- Sensors with digital display:  Flow rate and speed
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.



  • Net (unassembled) Shipping Dimensions WxLxH: 76 x 140 x 90 cm
  • Net Weight:  Approx. 125 kg
  • HT603S
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring
  • HD160SA
Water brake absorber instead of mechanical brake absorber.
  • HP003
Advanced inverter for controlling and indicating motor speed as well as for calculating motor input power. Hence pump efficiency at various speeds can be determined.
  • HT010R
Electric generator with voltage and current digital display, and resistive loads
  • HT603-001
Fixed blade stainless steel runner with different blade angle
  • HT603-050
Computer Interface (computer not included)
 This includes HT603S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT603-060
Computer Control (computer not included)
                                 This includes HT 603-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT603S
Learning Software
                                       to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS

HT 501AI MINI AXIAL FLOW IMPULSE TURBINE TEST SET

Posted on by

FLUID MECHANICS > Turbine test set

HT 501AI MINI AXIAL FLOW IMPULSE TURBINE TEST SET

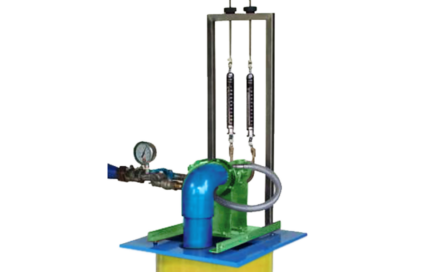

HT 501AI

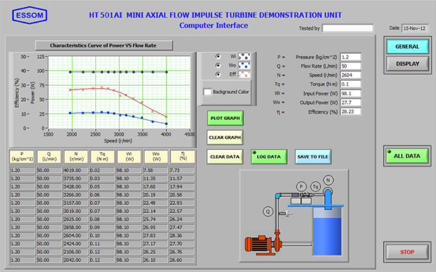

HT501AI-2
HT501AI-1

Enquiry

Video

Download

This is a self contained bench top set for studying the axial flow impulse turbine characteristics under various flow rates and heads.

The unit consists of a storage tank on a steel base, a pump, a mini axial flow impulse turbine, a dynamometer, and measuring instruments. The twin nozzles direct water jets to the runner radial blades.

Instruction manual is also included.

  • Torque vs speed at various heads and flow rates

  • Power output vs speed for various heads and flow rates

  • Efficiency vs speed for a given head and flow rate

  • Racing characteristics

  • Turbine

- Construction:  Stainless steel runner and twin nozzles
 :  Stainless steel casing with transparent discharge section
- Ratings: Maximum power over 25 W
  • Water storage tank
:  1
  • Dynamometer
:  Mechanical brake

  • Measuring instruments:


-  Torque:  Spring balances
-  Speed:  Portable tachometer
-  Flow rate:  Water meter and stop watch
-  Pressure:  Pressure gauge
  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.




  • Net (unassembled) Shipping Dimensions WxLxH: 40 x 110 x 85 cm
  • Net Weight:  Approx. 70 kg
  • HT501AIS
Learning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • HP009
Pressure gauges at pump inlet and discharge for pump pressure vs flow rate curve
  • HT010R
Electric generator with voltage and current digital display and resistive load.
  • HT501AI-050
Computer Interface (computer not included)
 This includes HT501AIS and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • HT501AI-060
Computer Control (computer not included)
                                     This includes HT 501AI-050 with the additional accessories for control function and additional software function for equipment controls by computer
  • HT501AS
Learning Software
                                          to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.

SIMILAR PRODUCTS
