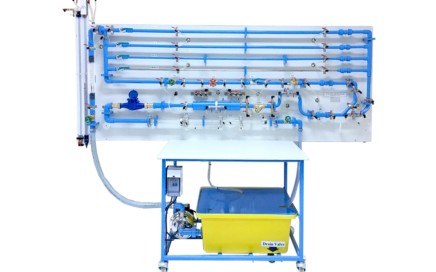

HF 135 PIPING LOSS TEST SET, Large

Posted on by

FLUID MECHANICS > Piping loss test sets

HF 135 PIPING LOSS TEST SET, Large

Enquiry

Video

Download

This is a self-contained water circulating unit for studying the friction losses in pipes, pipe fittings, and valves; and to determine coefficients of discharge for primary flow measuring devices at various flow rates.

The unit consists of a pump, a storage tank and a water proof panel on which all friction loss components and the flow measuring devices are arranged.

Friction loss is measured by a pressure drop and coefficient of discharge is determined from a pressure drop and a flow rate. Flow rate is obtained from a water meter and a stop watch. The pressure drop is measured by differential pressure using manometer and differential pressure gauge. Pressure tapping is by small ball valves with quick connection. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses. The unit is on a steel frame on wheels.

Instruction manual is also included.

  • Friction losses in straight pipes at various flow rates

  • Friction losses in pipe fittings, valves, sudden expansion and contraction at various flow rates

  • Friction losses in primary flow measuring devices and comparison of coefficients of discharge at various flow rates

  • Pump
:  1
  • Water storage tank
:  1
  • Primary flow measuring devices
:  Clear acrylic

- Venturi tube

- Orifice plate

- Pitot tube


  • Friction loss components


- Straight pipes, PVC

- Straight pipe, stainless steel

- Valves

- Short radius bends

- Long radius bends

- Regular elbow

- 45o elbows

- 45o Y

- Other components

:  3 different diameters

:  1

:  Gate, globe, ball, and check

:  2

:  2

:  1

:  2

:  1

:  Tee section, Inline strainer, Sudden expansion, Sudden contraction


  • Measuring Instruments


- Flow rate

- Differential pressure

:  Water meter with stop watch

:  Water manometer with hand air pump

:  Differential pressure gauge


  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 90 x 245 x 105 cm
  • Net Weight:  Approx. 160 kg
  • HF135S

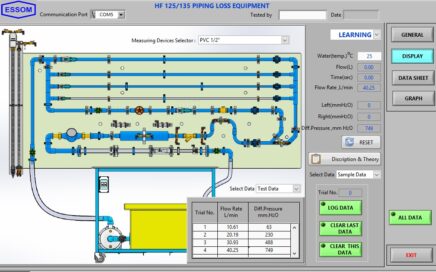

Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • HF011
Variable area flow meter
  • HP010
Flow digital display
  • HF013
ISA nozzle
  • HP020
Additional polyethylene, Polybutylene, or ABS pipe
  • HF021
Additional galvanized steel pipe
  • HF022
Additional artificially roughened pipe
  • HF023
Additional annular pipe
  • HF024
Additional flexible hose with adapter
  • HF033A
Differential pressure digital display instead of differential pressure gauge.
  • HF033B

Mercury manometer instead of differential pressure gauge

Note: Due to transport laws, mercury cannot be supplied. Buyer must source it locally. Approximately 50 cc or 700g is required. Filling kit is provided.

  • HF033C
Portable differential pressure meter instead of differential pressure gauge
  • HF034A
Portable differential pressure meter instead of water manometer
  • HP009

Pressure gauges at pump inlet and discharge for pump pressure vs flow rate curve

  • Other pipes and fittings can be supplied on request.
  • HF135S
: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 125A PIPING LOSS APPARATUS, Small

Posted on by

FLUID MECHANICS > Piping loss test sets

HF 125A PIPING LOSS APPARATUS, Small

Enquiry

Video

Download

This is a comprehensive unit for studying the friction losses in pipes, pipe fittings and valves at various flow rates.

All friction loss components are arranged on a water proof panel which is attached to a floor standing steel frame. The apparatus is to be used with a Hydraulics Bench (separately supplied) or an outside water supply.

The loss is measured by differential pressure using manometers and differential pressure gauge. Pressure tapping is by small ball valves with quick connection. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses. The unit is on a steel frame with adjustable footings.

Instruction manual is also included.

  • Friction losses in straight pipes at various flow rates

  • Friction losses in pipe fittings, valves, sudden expansion and contraction at various flow rates

  • Friction loss components





     - Straight pipes, PVC

     - Straight pipe, stainless steel

     - Valves

     - Short radius bends

     - Long radius bends

     - Regular elbow

     - 45o elbows

     - 45o Y

     - Other components

:  3 different diameters

:  1

:  Gate, globe, ball, and check

:  2

:  2

:  1

:  2

:  1

:  Tee section, Inline strainer, Sudden expansion, Sudden contraction


  • Measuring Instruments


      - Flow rate

     - Differential pressure



:  Water meter with stop watch

:  Water manometer with hand air pump

:  Differential pressure gauge





  • Net (unassembled) Shipping Dimensions WxLxH: 35 x 245 x 105 cm
  • Net Weight:  Approx. 90 kg
  • HF135S
: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • HB100N or HB100
Hydraulics Bench, Neo or Hydraulics Bench (required accessory)
  • HF011
Variable area flow meter
  • HP010
Flow digital display
  • HP020
Additional polyethylene, Polybutylene, or ABS pipe
  • HF021
Additional galvanized steel pipe
  • HF022
Additional artificially roughened pipe
  • HF023
Additional annular pipe
  • HF024
Additional flexible hose with adapter
  • HF033A
Differential pressure digital display instead of differential pressure gauge.
  • HF033B

Mercury manometer instead of differential pressure gauge

Note: Due to transport laws, mercury cannot be supplied. Buyer must source it locally. Approximately 50 cc or 700g is required. Filling kit is provided.

  • HF033C
Portable differential pressure meter instead of differential pressure gauge
  • HF034A
Portable differential pressure meter instead of water manometer
  • HF135-050

Computer Interface (computer not included)

This includes HF135S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

  • Other pipes and fittings can be supplied on request.
  • HF135S
: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

HF 125 PIPING LOSS TEST SET, Small

Posted on by

FLUID MECHANICS > Piping loss test sets

HF 125 PIPING LOSS TEST SET, Small

Enquiry

Video

Download

This is a self-contained unit for studying the friction loss in pipes, pipe fittings and valves at various flow rates.

The unit consists of a pump, a storage tank and a water proof panel on which all friction loss components are arranged.

The loss is measured by differential pressure using manometer and differential pressure gauge. Pressure tapping is by small ball valves with quick connection. All pressure taps are connected by flexible hoses to a set of specially arranged manifolds such that differential pressure across any component can be measured simply by opening valves without removing the hoses. The unit is on a steel frame on wheels.

Instruction manual is also included.

  • Friction losses in straight pipes at various flow rates

  • Friction losses in pipe fittings, valves, sudden expansion and

    contraction at various flow rates

  • Pump

:  1


  • Water storage tank
:  1
  • Friction loss components


     - Straight pipes, PVC

     - Straight pipe, stainless steel

     - Valves

     - Short radius bends

     - Long radius bends

     - Regular elbow

     - 45o elbows

     - 45o Y

     - Other components

:  3 different diameters

:  1

:  Gate, globe, ball, and check

:  2

:  2

:  1

:  2

:  1

:  Tee section, Inline strainer, Sudden expansion, Sudden contraction


  • Measuring Instruments


     - Flow rate

     - Differential pressure



:  Water meter with stop watch

:  Water manometer with hand air pump

:  Differential pressure gauge


  • Power supply
:  220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 90 x 245 x 85 cm
  • Net Weight:  Approx. 135 kg
  • HF135S
 : Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
  • HF011
 Variable area flow meter
  • HP010
 Flow digital display
  • HP020
 Additional polyethylene, Polybutylene, or ABS pipe
  • HF021
 Additional galvanized steel pipe
  • HF022
 Additional artificially roughened pipe
  • HF023
 Additional annular pipe
  • HF024
 Additional flexible hose with adapter
  • HF033A
 Differential pressure digital display instead of differential pressure gauge.
  • HF033B
 Mercury manometer instead of differential pressure gauge Note: Due to transport laws, mercury cannot be supplied. Buyer must source it locally. Approximately 50 cc or 700g is required. Filling kit is provided.
  • HF033C
 Portable differential pressure meter instead of differential pressure gauge
  • HF034A
 Portable differential pressure meter instead of water manometer
  • HF135-050
 Computer Interface (computer not included) This includes HF135S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
  • Other pipes and fittings can be supplied on request.
  • HF135S
: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

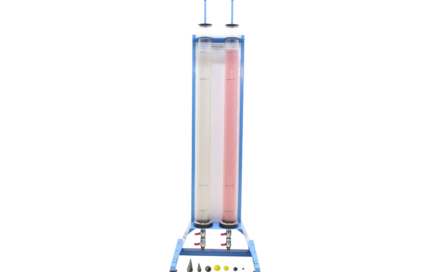

HF 111 PARTICLE DRAG COEFFICIENTS

Posted on by

Fluid Mechanic > HYDROSTATIC TEST ACCESSORIES AND EQUIPMENT

HF 111 PARTICLE DRAG COEFFICIENTS

Enquiry

Video

Download

The apparatus is designed to study the drag of a particle in a liquid under various Reynold numbers.

This is done by dropping a particle into a vertical liquid column and timing its fall between two points. Particle cross section is no more than 1% of the tube cross section. Various sizes and density of particles are supplied including streamlined shaped objects.

A guide at the top of the tube is provided to minimize disturbance to the liquid. Valves at the bottom of the tubes provide a mean for particle removal with minimum loss of the liquid. The rear panel is translucent with back lighting. This allows clear observation of the particle fall.

Instruction manual is also included.

  • Measurement of drag coefficients of sphere under various Reynold numbers

  • Effect of particle shape on rate of fall and drag coefficient

  • Effect of boundary layer separation on motion of sphere

  • Exploration of dynamic similarity

  •  Determination of viscosity

  • Glass tubes
: 2 ea.
  • Tube top with guides
: 2
  • Ball spheres
: 5 different diameters and materials
  • Streamlined object
: 2 x stainless steel
  • LED backlight
: 2
  • Stop watch
: 1
  • Power supply
: 220V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net (unassembled) Shipping Dimensions WxLxH: 41 x 50 x 172 cm
  • Net Weight:  Approx. 45 kg

HF111S

: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.




HF111S: Learning Software to support both online/offline training with data   calculation and analysis by manual data entry from analog measuring instruments.



SIMILAR PRODUCTS

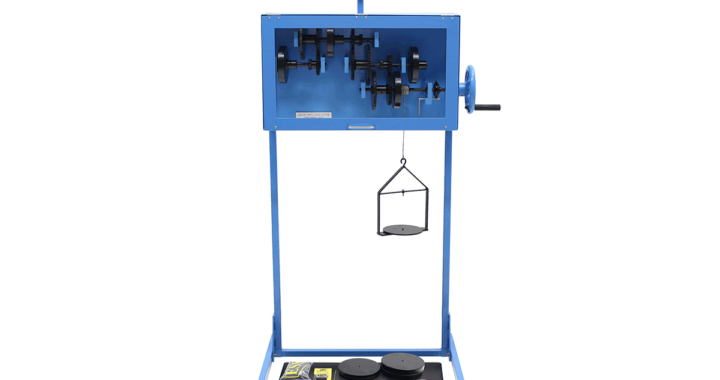

MM 245 AUTOMOTIVE GEAR SYSTEM, Manual Transmission, Computer interface

Posted on by

Force and Motion Study > MM Series

MM 245 AUTOMOTIVE GEAR SYSTEM, Manual Transmission, Computer interface

Enquiry

Video

Download

The apparatus is used for studying the acceleration of a geared system as well as geared system efficiency under different gear ratios.

The system consists of three shafts, two stage spur gear unit with two fixed gear and two sliding gear sets. All shafts rest on ball bearings on a steel frame.

The first shaft has a cable drum for weight hanger.

The second shaft has an interchangeable inertia mass. A speed sensor monitors the mass speed at four pulses per revolution.

A motor dynamometer measures the gear system input power. This motor dynamometer drives the first shaft via an electric clutch. Speed is controlled by an inverter.

A mechanical brake dynamometer is attached to the third shaft for measurement of the gear system output power.

For a study of acceleration of the geared system, a weight hanger provides torque on the cable drum and speed sensor can measure inertia mass velocity and acceleration.

The apparatus has a transparent cover with interlocks for safety protection.

Instruction manual is also included.

  • Inertia of a mass and of a geared system.

  • Input power, output power, and efficiency.

  • Effect of speed and load on efficiency.

  • Gear
: Spur gear modules 2.
  • Transmission ratio alternatives
: 3
  • Weight hanger and weights
: 1 lot.
  • Inertia masses
: 2
Speed control: 0.75 kW inverter for controlling motor speed
  • Power measurement


            - Torques

            - Speeds

: Digital display for input and output shafts

: Digital display for input and output shafts


  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Accessories
: Rubber pad and stop watch
  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 30 x 110 cm
  • Net Weight:  Approx. 65 kg
  • MM242-050

: Computer Interface (computer not included) This includes MM242S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

SIMILAR PRODUCTS

MM 242 COMPREHENSIVE GEARED SYSTEM

Posted on by

Force and Motion Study > MM Series

MM 242 COMPREHENSIVE GEARED SYSTEM

Enquiry

Video

Download

The apparatus is used for studying the acceleration of a geared system as well as geared system efficiency under different gear ratios.

The system consists of three shafts, two stage spur gear unit with two fixed gear and two sliding gear sets. All shafts rest on ball bearings on a steel frame.

The first shaft has a cable drum for weight hanger.

The second shaft has an interchangeable inertia mass. A speed sensor monitors the mass speed at four pulses per revolution.

A motor dynamometer measures the gear system input power. This motor dynamometer drives the first shaft via an electric clutch. Speed is controlled by an inverter.

A mechanical brake dynamometer is attached to the third shaft for measurement of the gear system output power.

For a study of acceleration of the geared system, a weight hanger provides torque on the cable drum and speed sensor can measure inertia mass velocity and acceleration.

The apparatus has a transparent cover with interlocks for safety protection.

Instruction manual is also included.

  • Inertia of a mass and of a geared system.

  • Input power, output power, and efficiency.

  • Effect of speed and load on efficiency.

  • Gear
: Spur gear modules 2.
  • Transmission ratio alternatives
: 3
  • Weight hanger and weights
: 1 lot.
  • Inertia masses
: 2
Speed control: 0.75 kW inverter for controlling motor speed
  • Power measurement


            - Torques

            - Speeds

: Digital display for input and output shafts

: Digital display for input and output shafts


  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Accessories
: Rubber pad and stop watch
  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 30 x 110 cm
  • Net Weight:  Approx. 65 kg
  • MM242-050

: Computer Interface (computer not included) This includes MM242S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export), additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)

SIMILAR PRODUCTS

MM 240 SIMPLE GEAR SYSTEM

Posted on by

Force and Motion Study > MM Series

MM 240 SIMPLE GEAR SYSTEM

Enquiry

Video

Download

The system is for studying the acceleration of a gear system under different gear ratios.

The system consists four parallel shafts with fix and sliding gear and supported by ball bearings on a base frame. Shafts 1, 2 and 3 have two fixed gears. Shafts 2, 3 and 4 have two sliding gears.  Each pair of adjacent shafts has two transmission ratios, providing 8 different gear ratios between the first and the last shaft. Inertia mass with torque drum is attached to each shaft. A cord wound around a drum and the weight hanger provides a means of applying a torque. The gear system is attached to a wall supported on two legs for weight hanger travel. By timing the fall of the weight hanger, the acceleration of the system can be calculated. A sprocket and lock pin, and a winding handle are provided for raising the weights. All gears are enclosed in a casing with a transparent cover for safety.

Instruction manual is also included.

  • Inertia of a mass and of a geared system.
  • Efficiency of a geared system.
  • Shafts
: 4 ea.
  • Inertia masses
: 4 ea.
  • Gear
: Spur gear.
  • Maximum gear ratio
: 64:1
  • Cord with measuring tape
: 1 set
  • Stop watch
: 1 ea.
  • Weight hanger
: 1 ea.
  • Weights
: 1 lot
  • Accessories
: Rubber pad
  • Net (unassembled) Shipping Dimensions WxLxH: 80 x 30 x 110 cm
  • Net Weight:  Approx. 65 kg



  • MM240S
:Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • MM240S

Learning Software to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.



SIMILAR PRODUCTS

MP 125 COMPACT AXIAL FLOW FAN TEST SET

Posted on by

Airflow and air compression > Compact fan & blower test sets

MP 125 COMPACT AXIAL FLOW FAN TEST SET

Enquiry

Video

Download

This is a bench top unit for a studying of axial flow fan characteristics.
The unit consists of a small axial flow fan with DC motor on a steel base, a speed control switch, inlet and outlet ducts, and measuring instruments.
Instruction manual is also included.

  • Flow rate vs pressure
  • Fan input, output and overall efficiency.
  • Effect of speed on fan performance.
  • Fan ratings
- Maximum flow rate : 2.5 m3/min
- Maximum pressure : 0.10 kPa
  • Inlet duct
 : Transparent with flow straighteners and inlet orifice
  • Outlet duct
 : Transparent with flow straighteners and damper
  • Speed control
 : DC speed control
  • Measuring instruments
- Air flow : Inlet orifice with inclined water manometer
- Differential pressure across fan : Twin inclined water manometers (for air flow rate and differential pressure across fan),
  0-450 mm x 1 mm graduation,              multiple slope 1:10, 1:5, 1:2 and 1:1
- Temperature : Thermometer
- Atmospheric pressure : Barometer
- Sensors with digital display : Sensors with digital display
: Fan speed
  • Power supply
 : 220 V 1 Ph 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
: 85 x 360 x 130 cm
  • Net weight
: Approx. 430 kg
  • MP125S
 Learning Software
to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
SIMILAR PRODUCTS

MP 124 AXIAL FLOW FAN TEST SET

Posted on by

Airflow and air compression > Compact fan & blower test sets

MP 124 AXIAL FLOW FAN TEST SET

Enquiry

Video

Download

This is a bench top set for studying industrial type axial flow fan characteristics.
The unit consists of a single stage variable pitch axial flow fan and motor, an advanced inverter, inlet and outlet ducts, and instruments for measurement of air flow rate, pressures, and temperature.
Instruction manual is also included.

  • Flow rate vs pressure.
  • Fan input, output and efficiency.
  • Effect of speed on fan performance.
  • Effect of impeller pitch angle on fan performance.
  • Investigations of velocity  distribution.
  • Effect of guide vane on fan performance (optional).
Fan
- Diameter: 400 mm
- Impeller construction: Single stage, aerofoil aluminium blades
 : Adjustable pitch angle
- Rated maximum flow rate: 4,000 m3/h
- Rated maximum pressure: 35 mm water
  • Inlet duct with inlet cone and flow straightener

  • Outlet duct with flow straightener and damper

  • Speed control
: Advanced inverter
  • Measuring instruments:

- Air flow rate: Travelling pitot and inlet cone and inclined water manometer
- Differential pressure: Twin inclined water manometer (for air flow rate and differential pressure across
   fan), 0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Fan speed and motor input power: Advanced inverter
- Temperature : Thermometer
  • Accessory
: Barometer
  • Power supply
: 220V 1Ph 50 Hz. Other power supply is available on request.

  • Net shipping dimensions WxLxH
: 85 x 360 x 130 cm
  • Net weight
: Approx. 430 kg
MP124SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
  • MP124-010A
Anemometer for flow rate measurement instead of travelling pitot and inclined water manometer
  • MP124-005
Guide vane for increasing fan output pressure
  • MP124-006
Second fan with motor and inverter for Two Stage Axial Flow Fan Test Set
  • MP124-007
Exhaust silencer with stand
  • MP124-050
Computer Interface (computer not included)
 This includes MP124S and significant sensor(s) instead of analog measuring instrument(s), data acquisition
 (capture, display, graph and/or data export), additional software function for real-time data logging with
 computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone
 (iOS and Android)
SIMILAR PRODUCTS

MP 119 CENTRIFUGAL BLOWER TEST SET

Posted on by

Airflow and air compression > Compact fan & blower test sets

MP 119 CENTRIFUGAL BLOWER TEST SET

Enquiry

Video

Download

This a bench top unit for studying the centrifugal blower characteristics.
The unit consists of an industrial type centrifugal blower with a motor and advanced inverter, inlet and outlet ducts with flow straighteners, a damper, and measuring instruments according to BS 848 and ISO 1042. Extra blades are provided for comparison study.
Instruction manual is also included.

  • Inlet and discharge pressures vs blower speed
  • Flow rate vs speed
  • Blower input, output and efficiency
  • Comparison of backward, radial, and forward blade impellers
  • Blower rating at 2900 rpm:

- Maximum flow rate (unchoked): 15 m3/min
- Maximum head (fully choked): 150 mm water
  • Inlet duct with flow straightener

  • Outlet duct with flow straightener and damper

  • Speed control
: Advanced inverter
  • Measuring instruments

- Air flow rate: Inlet orifice plate or Venturi nozzle with inclined water manometer
- Differential pressures: Twin inclined water manometers (for air flow rate and pressure across fan),
   0-450 mm x 1 mm graduation, multiple slope 1:10, 1:5, 1:2 and 1:1
- Blower speed and motor input power: Advanced inverter
- Temperature: Thermometer
  • Accessories
: 2 extra impellers with radial and forward blade designs
 : Barometer
  • Power supply
: 220 V, 1 Ph, 50 Hz. Other power supply is available on request.
  • Net shipping dimensions WxLxH
: 85 x 245 x 75 cm
  • Net weight
: Approx. 160 kg
MP119SLearning Software
 to support both online/offline training with data calculation and analysis by manual data entry from analog measuring instruments.
MP100-008Venturi nozzle for flow rate measurement
MP100-009Travelling pitot tube for flow rate measurement
MP100-010AAnemometer for flow rate measurement instead of orifice plate or Venturi nozzle and inclined water manometer.
MP119-050Computer Interface (computer not included)
 This includes MP119S and significant sensor(s) instead of analog measuring instrument(s), data acquisition (capture, display, graph and/or data export),
 additional software function for real-time data logging with computer interface unit and WiFi feature for data logging and real-time display remotely on smartphone (iOS and Android)
SIMILAR PRODUCTS
